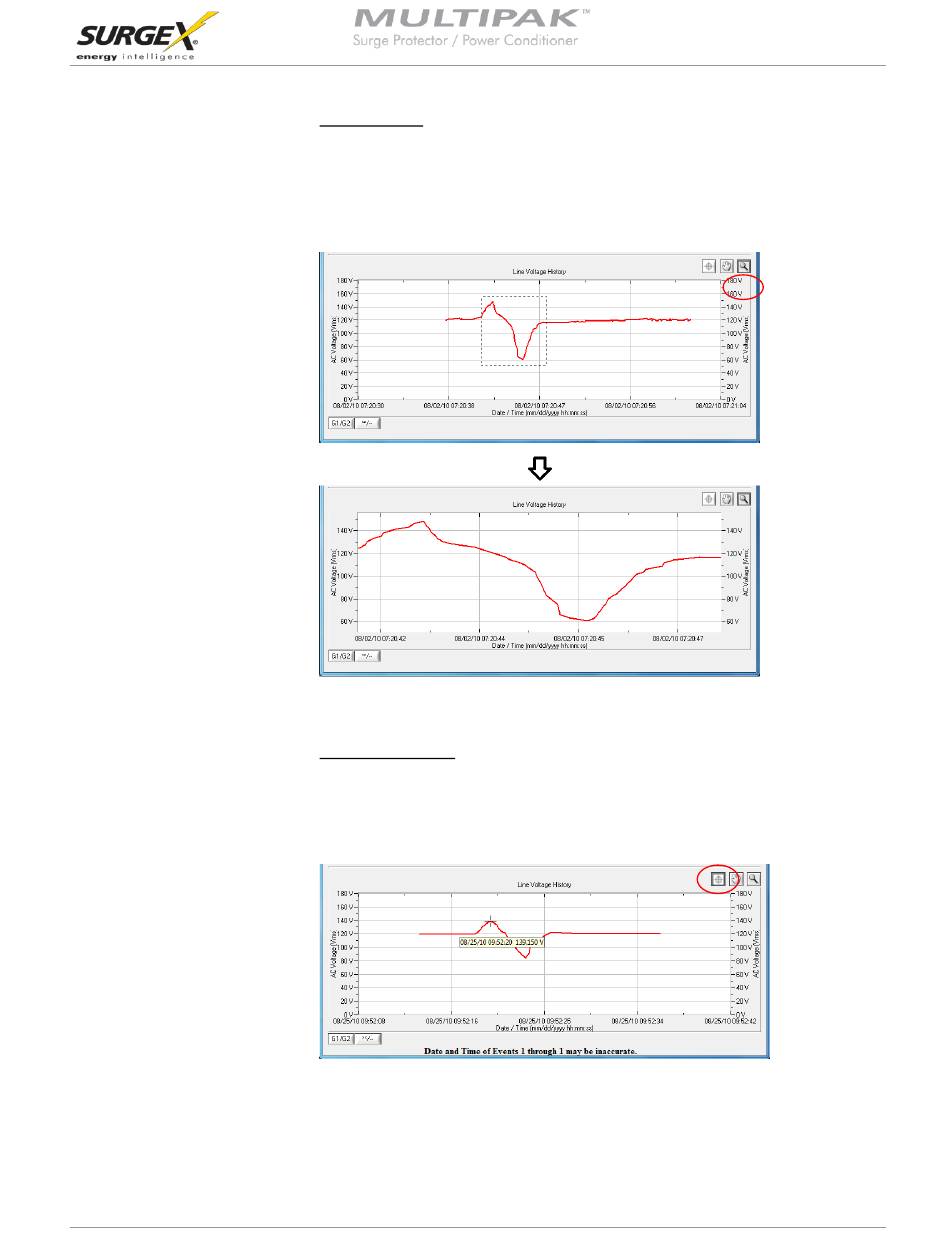

2. Zoom Function: The line voltage graph may be zoomed along both the X (time) and Y
(Voltage) axes. To zoom in on an area of the graph, press the magnifying glass icon,
press and hold the left mouse button somewhere on the graph, drag the cursor to
define the zoom selection, and then release the left mouse button. The graph will now
display the selected area. Press the magnifying glass icon to restore the original full
display.
3. Cross Hair Function: The cross hair tool is useful when determining the magnitude
and date/time of a line voltage measurement. Press the cross hair icon to place a
cross hair on one of the graph's data points, and the corresponding date, time, and
magnitude of that data point will be displayed when the mouse pointer hovers over
that point:
To move the cross hair to a different data point, simply
position the mouse pointer over the data point of interest.
