GUI Overview:

3.

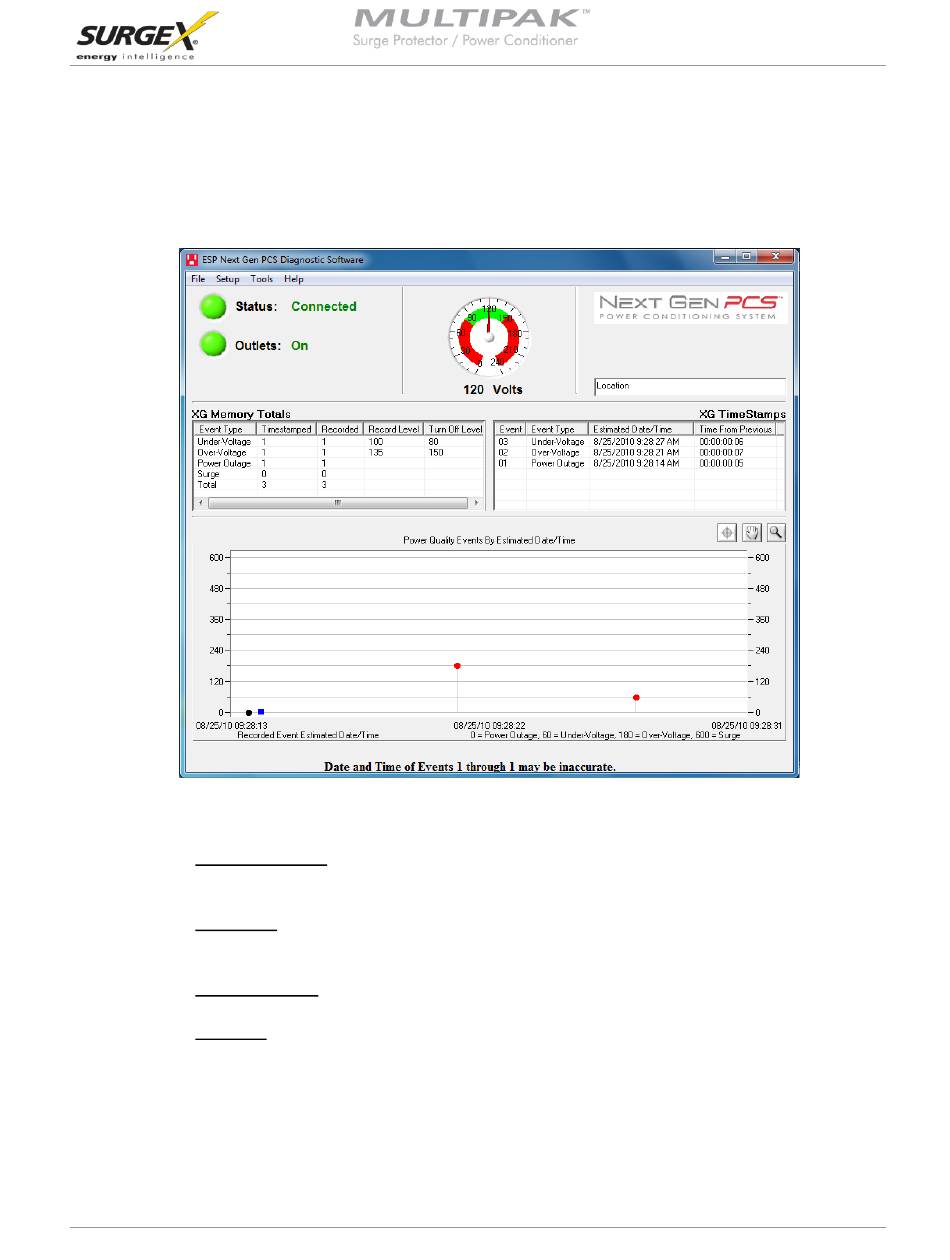

After connecting successfully, several pieces of information gathered from the MULTIPAK will now be
displayed on the Diagnostic Software Graphical User Interface.
a. Connection Status: The current connection status is displayed to the right of the Connect /
Disconnect button.
b. Disconnect: Pressing the green button beside "Status" will terminate communications with the
MULTIPAK.
c. Location Textbox: The text entered in the textbox is included with data that is exported to a file.
d. Voltmeter: A real-time AC voltmeter is displayed in the upper center, which displays the line voltage
both numerically and as an analog meter.
