d. The graph uses the values of 0%, 50%, 150%, and 600% for graphical
display of power outages, under-voltages, over-voltages, and surge events,
respectively; the actual voltages during these events are not recorded and
probably differ from the graphical values (0%, 50%, 150%, and 600%)
shown.

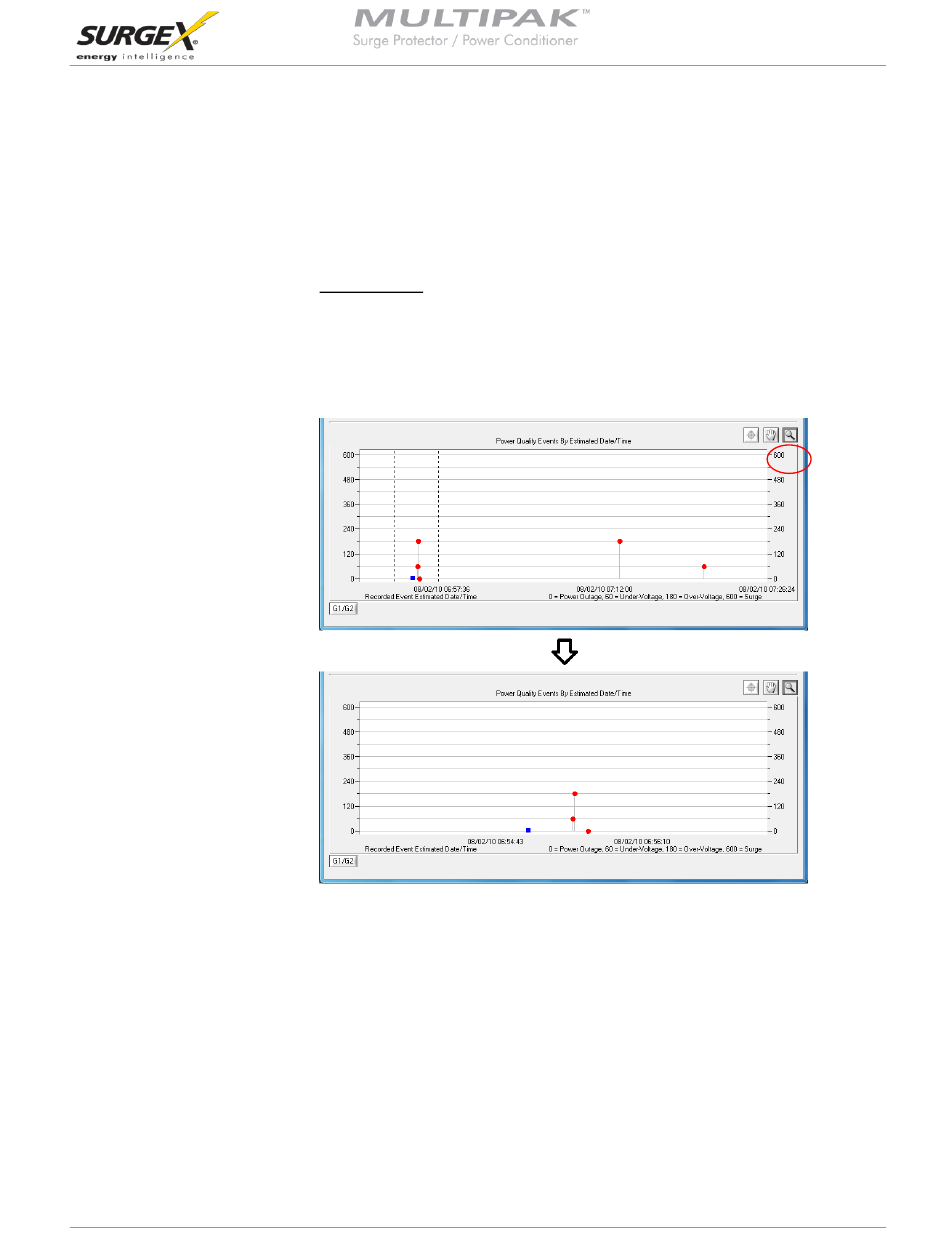

2. Zoom Function: The recorded power quality events graph may be zoomed along the
X (time) axis. To zoom in on an area of the graph, press the magnifying glass icon,
press and hold the left mouse button somewhere on the graph, then drag the cursor
either left or right to define the zoom selection, and then release the left mouse
button. The graph will now display the selected area. Press the magnifying glass icon
again to restore the original full display.
User Manual
Software Version 2.7
Page 18
