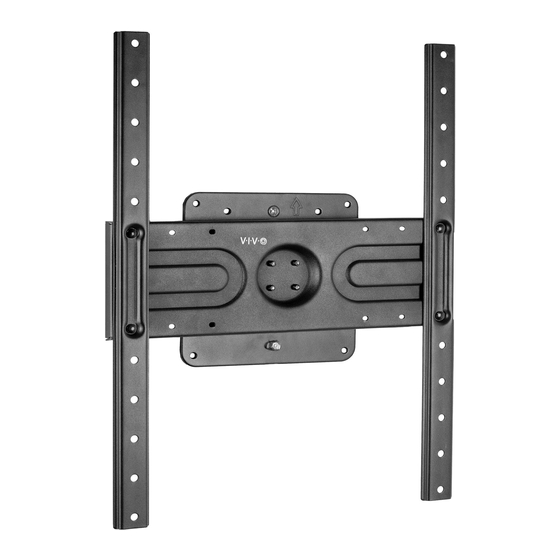

Rotating TV Wall Mount
Instruction Manual
SKU: MOUNT-VW080P
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-vw080p
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Related Manuals for Vivo MOUNT-VW080P
Summary of Contents for Vivo MOUNT-VW080P
- Page 1 Rotating TV Wall Mount Instruction Manual SKU: MOUNT-VW080P Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-vw080p GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
-
Page 2: Package Contents
CAUTION! DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us. com, email at help@vivo-us.com, or call us at 309-278-5303. -
Page 3: Tools Needed
TOOLS NEEDED Phillips Drill Studfinder Level Screwdriver Pencil Socket Wrench ASSEMBLY STEPS STEP 1 Remove the TV Plate (A1) from Mount (A) by pulling down on the cord to release the lock. - Page 4 STEP 2 OPTION A: WOOD STUD WALL Using the center holes on Mount (A), mark drilling locations. Use of a stud finder is highly recommended. Drill 2.4” (60mm) deep holes using a 3/16” (4.5mm) drill bit, and secure Mount (A) to the wall using M6x50mm Screws (W-D) in upper two holes, and M8x60mm Screws (W-A) with M8 Washers (W-C) in the lower hole.
- Page 5 STEP 2 (Continued) OPTION B: CONCRETE/BRICK WALL Using the upper side holes and lower center hole on Mount (A), mark drilling locations. Drill 2.6” (65mm) deep holes using a 1/2” (12mm) drill bit, press Anchors (W-B) into holes, and secure Mount (A) to the wall using M8x60mm Screws (W-A) and M8 Washers (W-C).
- Page 6 STEP 4 With TV face down on a flat surface, secure assembled VESA Brackets (B) to the TV using appropriate Screws (M-A thru M-D) and M8 Washers (M-F). If needed, Spacers (M-F, M-G) have been provided. STEP 5 Carefully place the TV plate with brackets and TV into the opening on top of the mount until the latch has engaged.
- Page 7 Adjustments Freely rotate the TV to the desired position and adjust the tilt as desired. Removing TV To remove the TV, pull down on the cord to release the latch, then lift the TV off from the mount.
- Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
