  • Page 2 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT DISASSEMBLE. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THE APPLIANCE TO RAIN OR MOISTURE.
  • Page 3 CAUTION Warning: Changes or modifcations not expressly approved in writing by B-bird may void the users authority to operate this equipment. RF Exposure Statement: This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
  • Page 4 if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the...
  • Page 5 DIGITAL WIRELESS SYSTEM, CAREFULLY READ THE OPERATING INSTRUCTIONS. 1.Observe all instructions carefully in the O2 manual. 2.Do not to perform service operations beyond those described in the O2 Manual. Services required when the apparatus has been damaged in any way, such as: is dropped or the enclosure is damaged 3.Do not place near heat sources, such as radiators,...

  • Page 6: Product Introduction

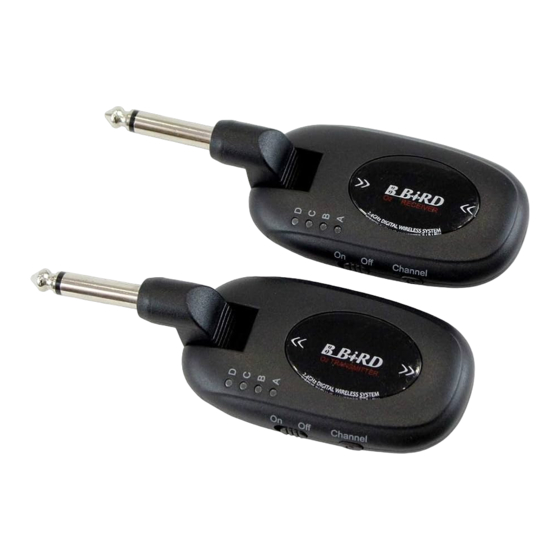

    This wireless is a perfect fit for any pedal board thanks to its simplistic, and compact design. So, go wireless with the B-BIRD O2 system. It’ll declutter the stage and offers freedom in motion...

  • Page 7: System Specification

    Auto sleep/wake up mode:The transmitter will turn to sleep mode if there is no signal input for 10 seconds. *Note: Actual range is dependent on RF environment, including reflections, interference and absorption PACKAGE DETAILS O2 Guitar Transmitter*1 O2 Guitar Receiver*1 USB cable*1 Manual*1...

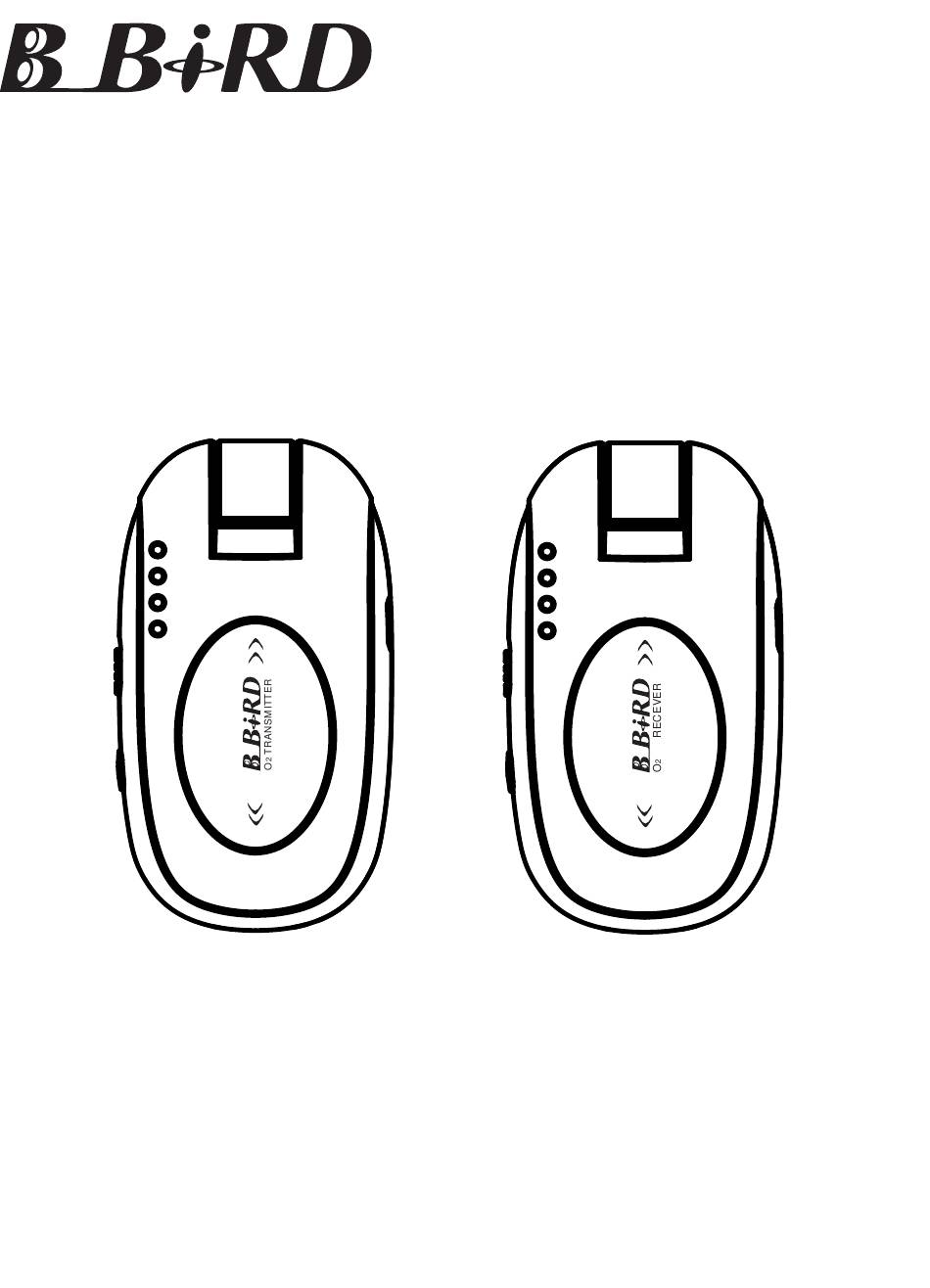

  • Page 8: Quick Start Diagram

    QUICK START DIAGRAM TRANSMITTER RECEIVER 1.Transmitter plugs into the Guitar (you instruments), the receiver plugs into the effects pedal, AMP, Audio, etc. 2.Turn on the Transmitter and the receiver, the A B C D LED will indicate how much volume of the battery, each LED means about 25% of the battery volume.
  • Page 9 3.Channel choosing,O2 systems’pre-set channel is channel A,after showing battery volume the A LED will flash,it indicates making pairs,if transmitter and receiver connected successfully the channel LED will stop flashing and turn solid green. if environment interuption happens, you can click the “C”...

  • Page 10: Basic Operation

    BASIC OPERATION 1.Power – Slide Switch to turn on/off TRANSMETER/RECEIVER 2.Channel Select - Align TRANSMITTER and RECEIVER channels.
  • Page 11 LED will flash to indicate the channel. 3.Battery LED and Channel LED O2 syetem at first power on,the lighting LED number indicate the battery volume,if 3 LED light on,it means 3*25%=75% battery volume left.The A LED have 2 function,one is channel A,the other is turn to red flashing in low volume and have to be charged.
  • Page 12 WIFI devices. Generally we recommend to use Channel A Portable Plug-and- Play design O2 wireless system uses a portable design; both the receiver and the receiver are plug-and-play design. It is very convenient for fast switching among guitar, bass, amplifiers, effect pedal and other audio equipments.
  • Page 13 O2 Receiver Since O2 is the 2.4 GHz wireless system, please avoid putting the receiver close to other signal emitting devices. It is recommended that your O2 receiver keep a distance of more than 3 meters from the other 2.4 GHz transmitter and WIFI router.
  • Page 14 U2 transmitter and receiver antennae be in the signal receiving range. Antennae angle The rear end of O2 is the antenna, which can be used at about an angel of 180°. The front signal of the transmitter and the receiver is the strongest. Please try to keep the front to face each other during using.
  • Page 15 Supportive pickup and musical instrument O2 wireless system can works for passive guitar and active pickup, piezoelectric acoustic guitar pickup, piezoelectric violin pickup.
