Adjustment

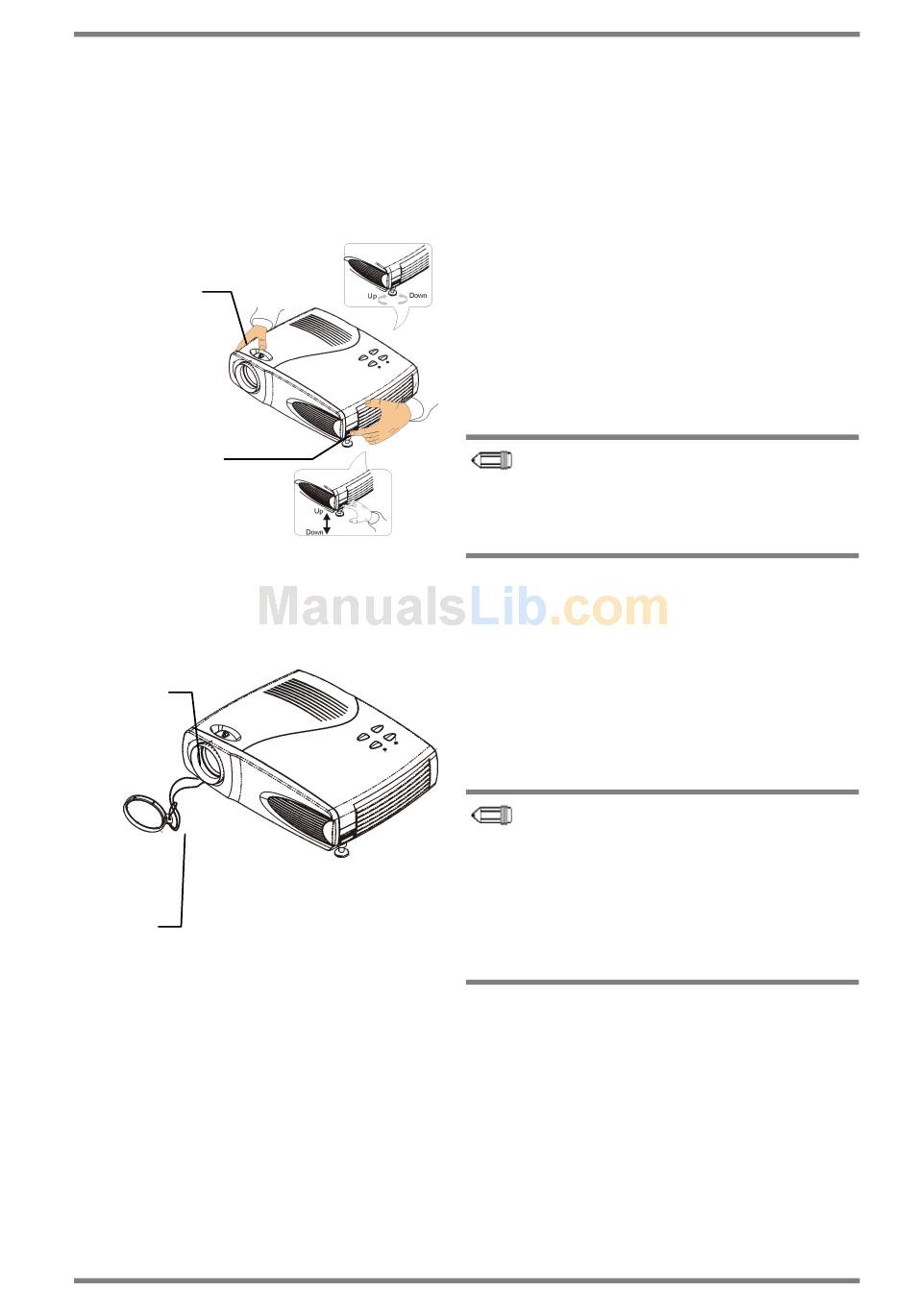

Adjusting Projector Angle

Place the projector on a flat surface to position it in centre horizontally for best viewing.
Height
Adjustment
Button
Foot Adjusters

Adjusting the Zoom and Focus

Zoom Ring
Focus Ring
16
Adjust the projector angle using the Height
Adjustment Buttons.
Press the Height Adjustment buttons while
tilting the projector. The Foot Adjuster will
extend accordingly, angled 7 degrees
upwards.
NOTE:
Press the Height Adjustment button before
adjusting the Foot Adjusters to avoid resulting
in damage.
Rotate the zoom ring and focus ring until the
projected image is clear and at the desired
size. The projector can focus within the range
of 5 feet (1.5m) to 33 feet (10m).
NOTE:
If vertical bars appear on the display after
adjusting the focus, press the "Auto" button
on the Control Pad. Or use the
frequency/tracking features in the OSD menu
to manually adjust the synchronization and
tracking of the image.
