Product Profile; Front View; Rear View; Bottom Panel - BOXLIGHT DLP User Manual

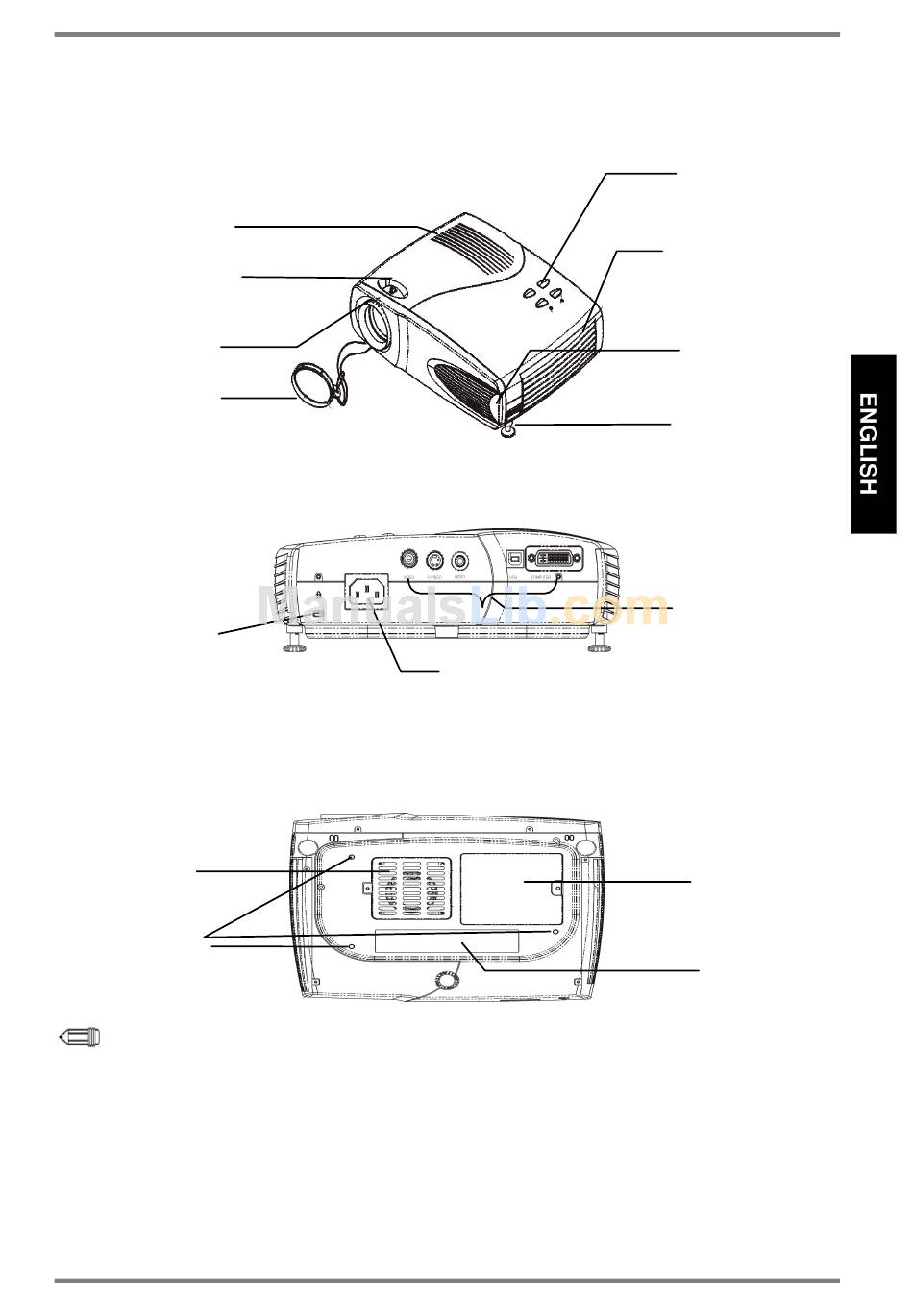

Product Profile

Front View

Speaker
Zoom Ring
Focus Ring
Lens Cover

Rear View

Kensington Security
Lock

Bottom Panel

Fan Cover
Ceiling Mounted
Screw
NOTE:
•
With ceiling installations, use approved mounting hardware & M4 screw.
Min. distance from ceiling/rear wall: 30/50 cm, 12/20 inch for proper ventilation.
For permanent installations, follow local codes.
•
The security lock corresponds to Kensington's MicroSaver Security System. If you
have any comment, contact : Kensington, 2853 Campus Drive, San Mateo,
CA94403, U.S.A. Tel: 800-535-4242, http: www.kensington.com.
™
DLP Digital Projector User's Guide
AC IN Socket
Control Pad
Ventilation Hole
IR Sensor
Adjuster Foot
I/O Connectors
Lamp Cover
ID Label
