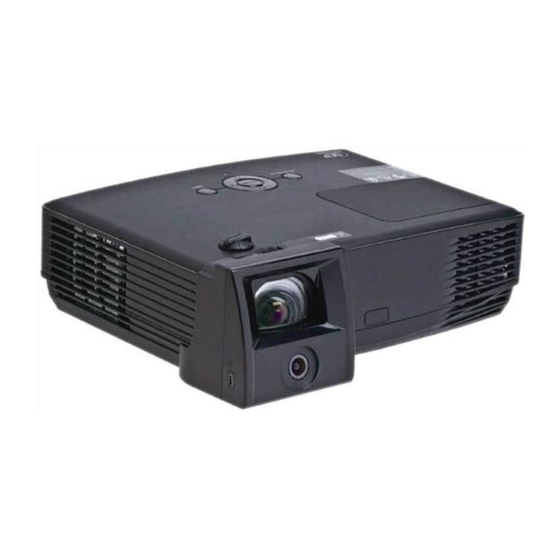

- Page 1 Write Projecto DX25N-U...
-
Page 2: Table Of Contents
Table of contents Important Safety instructions ..3 Maintenance ......26 Introduction........5 Care of the projector ........26 Projector features ......... ……….5 Cleaning the lens………………………………26 Shipping contents..........6 Cleaning the projector case……………..……26 Projector exterior view………………………. …..7 Storing the projector…………...………………26 Controls and functions ......…..8 Transporting the projector……………………..26 Lamp information Remote control effective range……..……………9... -
Page 3: Important Safety Instructions
Important safety instructions Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this unit near water. 6. Clean with a soft, dry cloth. 7. Do not block any ventilation openings. Install the unit in accordance with the manufacturer’s instructions. - Page 4 minutes prior to removing the lamp assembly for replacement. 22. Do not operate lamps beyond the rated lamp life. Excessive operation of lamps beyond the rated life could cause them to break on rare occasions. 23. Never replace the lamp assembly or any electronic components unless the projector is unplugged. 24.
-
Page 5: Introduction
Introduction Projector features The projector integrates high-performance optical engine projection and a user-friendly design to deliver high reliability and ease of use. The projector offers the following features. • Short throw projection. • Screen Color correction allowing projection on surfaces of several predefined colors •... -
Page 6: Shipping Contents
Shipping contents Carefully unpack and verify that you have all of the items shown below. If any of these items are missing, please contact your place of purchase. Standard Contents . Projector*1 . Remote control *1 . Power cord*1 . VGA cable*1 . -
Page 7: Projector Exterior View
Projector exterior view 1. Lens shift 2. Focus Ring 3. Projection Lens 4. Lens Cover 5. Keypad 6. Adjustable foot stand 7. Rear IR receiver sensor 8. Audio phone jacket 9. RJ 45 10. VGA out 11. VGA in *2 12. -
Page 8: Controls And Functions
Controls and functions 16. Lens shift 1. POWER To adjust the projection position up and down. To turn on/off power. 17. Focus ring 2. Arrow keys ( Left/Right/ Up /Down) Adjusts the focus of the projected image. To adjust the OSD menu. 18. -
Page 9: Remote Control Effective Range
Remote control effective range Infra-Red (IR) remote control sensor is located on the front and rear of the projector. The remote control must be held at an angle within 20 degrees perpendicular to the projector's IR remote control sensor to function correctly. The distance between the remote control and the sensor should not exceed 5 meters (~ 16 feet). -
Page 10: Positioning Your Projector
Positioning your projector Choosing a location Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment. Your projector is designed to be installed in the following installation locations: 1. - Page 11 Image Diagonal Projection Image Width(mm) Image Height(mm) (inch) Distance(mm) 1219 1008 1626 1219 1260 2032 1524 1512 2438 1829 1890 3048 2286 2520 4064 3048 3150 5080 3810 3780 6096 4572 There is 3% tolerance among these numbers due to optical component variations. It is recommended that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector in situ before you permanently install it, so as to make allowance for this projector's optical characteristics.
-
Page 12: Connection
Connection When connecting a signal source to the projector, be sure to: Turn all equipment off before making any connections. Use the correct signal cables for each source. Ensure the cables are firmly inserted. In the connections shown below, some cables may not be included with the projector (see "Shipping contents" on page 6). They are commercially available from electronics stores. -
Page 13: Connecting A Composite Video Source
Connecting a Composite Video source device Examine your Video source device to determine if it has a set of unused Composite Video output sockets available: 1. If so, you can continue with this procedure. 2. If not, you will need to reassess which method you can use to connect to the device. Connecting to computer or laptop for Ethernet function 1 Computer and projector use Ethernet cables to link to different intra net ports or linked trough IP router... -
Page 14: Connecting An Audio Source Device
Connecting an Audio source device Examine your Audio source device to determine if it has a set of unused audio output sockets available: 1.If so, you can continue with this procedure. 2.If not, you will need to reassess which method you can use to connect to the device. -
Page 15: Operation
Operation Starting up the projector Plug the power cord into the projector and into a wall socket. Turn on the wall socket switch (where fitted). Check that the POWER indicator shows steady orange light after power has been applied. Remove the lens cap. If it is closed, it could become deformed due to the heat produced by the projection lamp. -
Page 16: Use The Menu
Use the Menu The projector is equipped with On-Screen Display (OSD) menus for making various adjustments and settings. Below is the overview of the OSD menu. To use the OSD menus, please set them to your familiar language first. Menu/ Source Press MENU of the remote control or unit to turn on the OSD. -
Page 17: Menu/ Picture
Menu/ Picture Shown only when Signal Source is attached Press MENU of remote control or unit to turn on the OSD. Press to picture category. Press to select the beneath function for your needs. Press the key to adjust the modes or function values Press Enter key to confirm the selection Press MENU to leave the menu or press ▲... - Page 18 When Picture mode is selected on User mode, this function can be active. Color Adjusts the intensity of the Color in the image. There is no the function support for VGA input source When Picture mode is selected on User mode, this function can be active. Adjusts the balance of red-to-green necessary for realistic representation of Video Tint signals.
-
Page 19: Menu/ Display
Menu/ Display Shown only when Signal Source is attached Press MENU of remote control or unit to turn on the OSD. Press to Display category. Press to select the beneath function for your needs. Press the key to adjust the function values Press Enter key to confirm the selection Press MENU to leave the menu or press ▲... - Page 20 This function allows the user to adjust the clock phase to reduce image distortion. Phase (Only VGA Active) Base-On ADC’s Phase：0 ~ 31 This function allows the user to adjust the horizontal width of the image. (Only VGA H Size Active) Digital Zoom scales part of the input image to a larger size to increase visibility at a Digital Zoom...
-
Page 21: Menu/ System Setup-Basic
Menu/ System Setup-Basic Press MENU of remote control or unit to turn on the OSD. Press to System Setup-Basic category. Press to select the beneath function for your needs. Press the key to adjust the modes Press Enter key to confirm the selection Press MENU to leave the menu or press ▲... -
Page 22: Menu/ System Setup-Advance
Menu/ System Setup-Advance Drop down menu Press MENU of remote control or unit to turn on the OSD. Press to System Setup-Advance category Press to select the beneath function for your needs Press the key to adjust the modes or values Press Enter key to confirm the selection Press MENU to leave the menu or press ▲... -
Page 23: Menu/ Information
Menu/ Information Press MENU of remote control or unit to turn on the OSD. Press to Information category. Press MENU to leave the menu. Feature Description Active Source Display the current input source information Picture Mode Display the picture mode information Resolution Display the current source resolution information Equivalent lamp hour... -
Page 24: Ir Remote Control
IR Remote Control Command Description Unit off- press Power button once to turn unit on Unit On - press Power button once to initiate turn off notice, press again to return product to standby state Power Button Pressing Source button will sequentially switch through inputs (First initial press brings up the current selected source)(each selection requires a button press) Source Button Mute's sound when pressed, returns to previous volume setting when pressed... -
Page 25: Use Ethernet Function
Use Ethernet function The function allows users to remote control the projector through computer system in “Intranet environment”. Operation Instruction 1. Computer system links to intra net port and the projector links to anther intra net port through Ethernet cables. 2. -
Page 26: Maintenance
Maintenance Care of the projector Your projector needs little maintenance. The only thing you need to do on a regular basis is to keep the lens clean. Never remove any parts of the projector except the lamp. Contact your dealer if other parts need replacing. Cleaning the lens Clean the lens whenever you notice dirt or dust on the surface. -
Page 27: Lamp Information
Lamp information Getting to know the lamp hour When the projector is in operation, the duration (in hours) of lamp usage is automatically calculated by the built-in timer. To obtain the lamp hour information: Press MENU and then press to the Information category You will see the Equivalent lamp hour information displaying on the menu To leave the menu, press MENU. - Page 28 1. To remove the screws showed as 1 to open the lamp door showed as A 2. To remove the screws showed as 2 then use the handle showed as B to draw up the lamp holder 3. To remove the screw showed as A and press the E point forward to loose the lamp 4.
-
Page 29: Resetting The Lamp Timer
WARNING Hg - Lamp contains mercury. Manage in accordance with local disposal laws. See www.lamprecycle.org To reduce the risk of electrical shock, always turn the projector off and disconnect the power cord before changing the lamp. To reduce the risk of severe burns, allow the projector to cool for at least 45 minutes before replacing the lamp. To reduce the risk of injuries to fingers and damage to internal components, use caution when removing lamp glass that has shattered into sharp pieces. -
Page 30: Led Indicator
LED Indicators Mode LED Signals on Projector Stand by Orange LED (always on) Powering up Orange LED (Flashing) Normal Operation Green LED (always on) Fan Error Red LED (Once every one second) Thermal Error Red LED (twice every one second) Power Error Red LED (always on) Download mode... -
Page 31: Trouble Shooting
Trouble shooting Cause Remedy Plug the power cord into the AC inlet on the projector, and plug the power There is no power from the power cord into the power outlet. cord. Attempting to turn the projector on Wait until the cooling down process has completed. again during the cooling process. -
Page 32: Specifications
Specifications All specifications are subject to change without notice. General Product name DLP Projector Optical Resolution 1024*768 XGA Display system TI 0.55" DMD Type X Lens F/Number F = 2.6 Lamp OSRAM 180-230W E20.6 Power Supply Input Voltage 100V to 240V with 10% tolerance Power consumption Normal operation: less than 300W;... -
Page 33: Dimensions
Dimension... -
Page 34: Timing Chart
Timing chart Mode Resolution V(Hz) 640x480 640x480 640x480 640x480 640x480 640x480 720x400 720x400 720x400 SVGA 800x600 SVGA 800x600 SVGA 800x600 SVGA 800x600 SVGA 800x600 SVGA 800x600 SVGA 800x600 1024x768 1024x768 1024x768 1024x768 1024x768 1024x768 SXGA 1152x864 SXGA 1152x882 SXGA 1280x1024 Quad VGA 1280x960 MAC 19... - Page 35 Mode Resolution V(Hz) 480p(525p) 59.94 576i(625i) 576p(625p) 720p(750p) 720p(750p) 1080i(1125i)* 1080i(1125i)* *Half Sampling Only Processing 540 lines...
