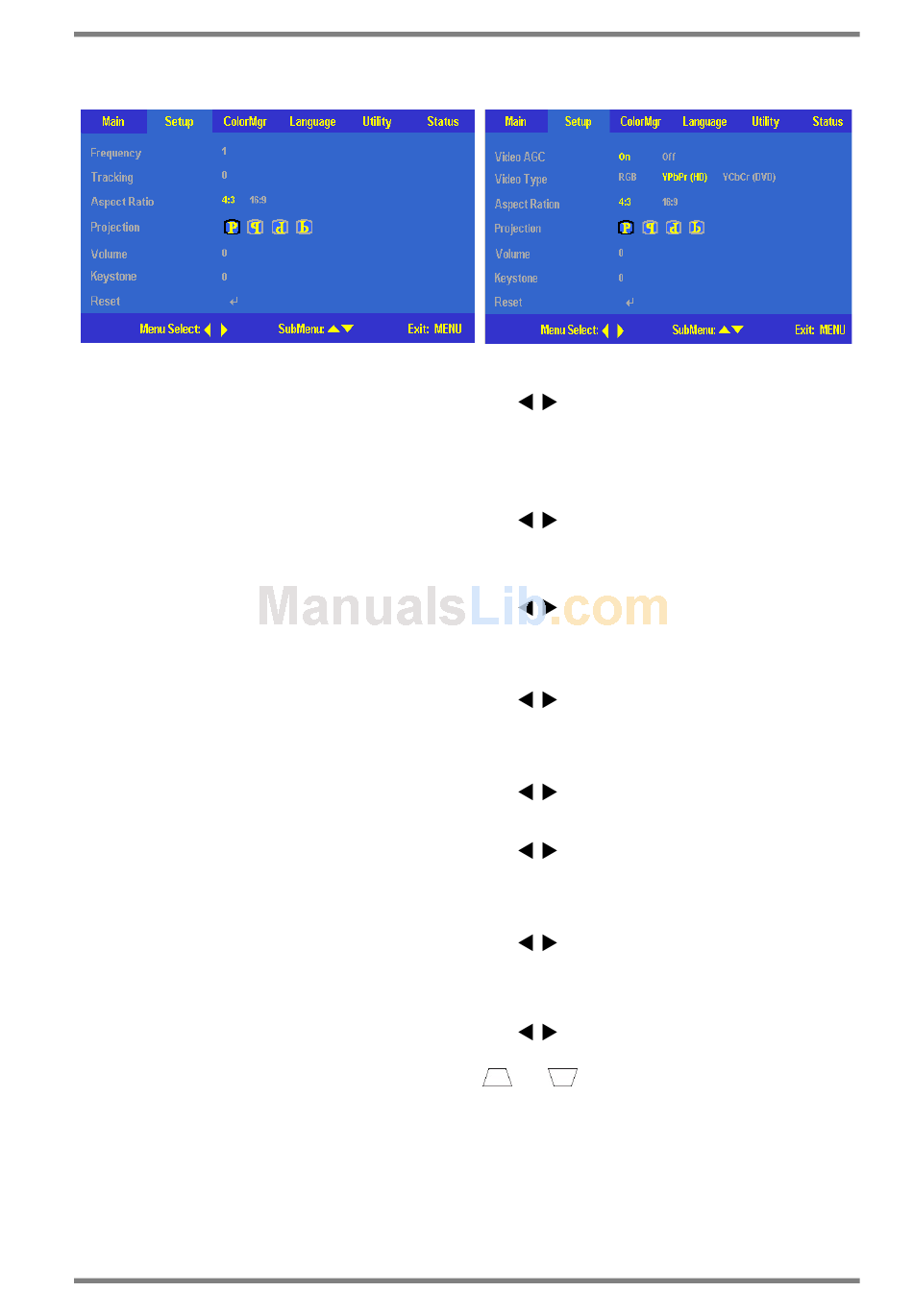

Setup Menu

PC Mode
Frequency
Tracking
Video AGC
Video Type
Aspect Ratio
Projection Type
Volume
Keystone
Reset
22
Use arrow keys Left / Right ( / ) to adjust the sampling clock to
eliminate flicker.
Adjustment range: from low-high (0-100) by 31 steps.
(Default value: auto detected)
Use arrow keys Left / Right ( / ) to adjust the sampling number.
Adjustment range: from low - high (0 – 100) by 100 steps.
(Default value: auto detected)
Use arrow keys Left / Right ( / ) to adjust the video automatic
gain control. Selection item: on / off.
(Default value: on)
Use arrow keys Left / Right ( / ) to adjust the video source type.
Selection item: RGB / Y-Pb-Pr (HD) / Y-Cb-Cr (DVD)
(Default value: DVD)
Use arrow keys Left / Right ( / ) to select the video aspect ratio.
Selection item: 4:3 & 16:9. (Default value: 4:3)
Use arrow keys Left / Right ( / ) to select different projection
type.
Selection item: Desktop Front/Rear, Ceiling Front/Rear.
(Default value: desktop front)
Use arrow keys Left / Right ( / ) to adjust the volume level.
Adjustment range: from low - high (0-8) by 8 steps.
(Default value: 4)
Use arrow keys Left / Right ( / ) to adjust the keystone level of
display.
Adjustment range: from
(Default value: 50)
Use ↵ button to reset to default value.
In PC mode to reset aspect ratio, projection type, volume, keystone
to default value.
In Video mode to reset video AGC, video type, aspect ration,
projection type, volume, keystone to default value.
Video Mode
to (0-100) by 32 steps.
