GENERAL
• Carefully read the following important information regarding installation
safety and maintenance. Keep this information booklet accessible for further
consultations.

POWER SUPPLY CONNECTION

For connection to the power supply refer
to the following:

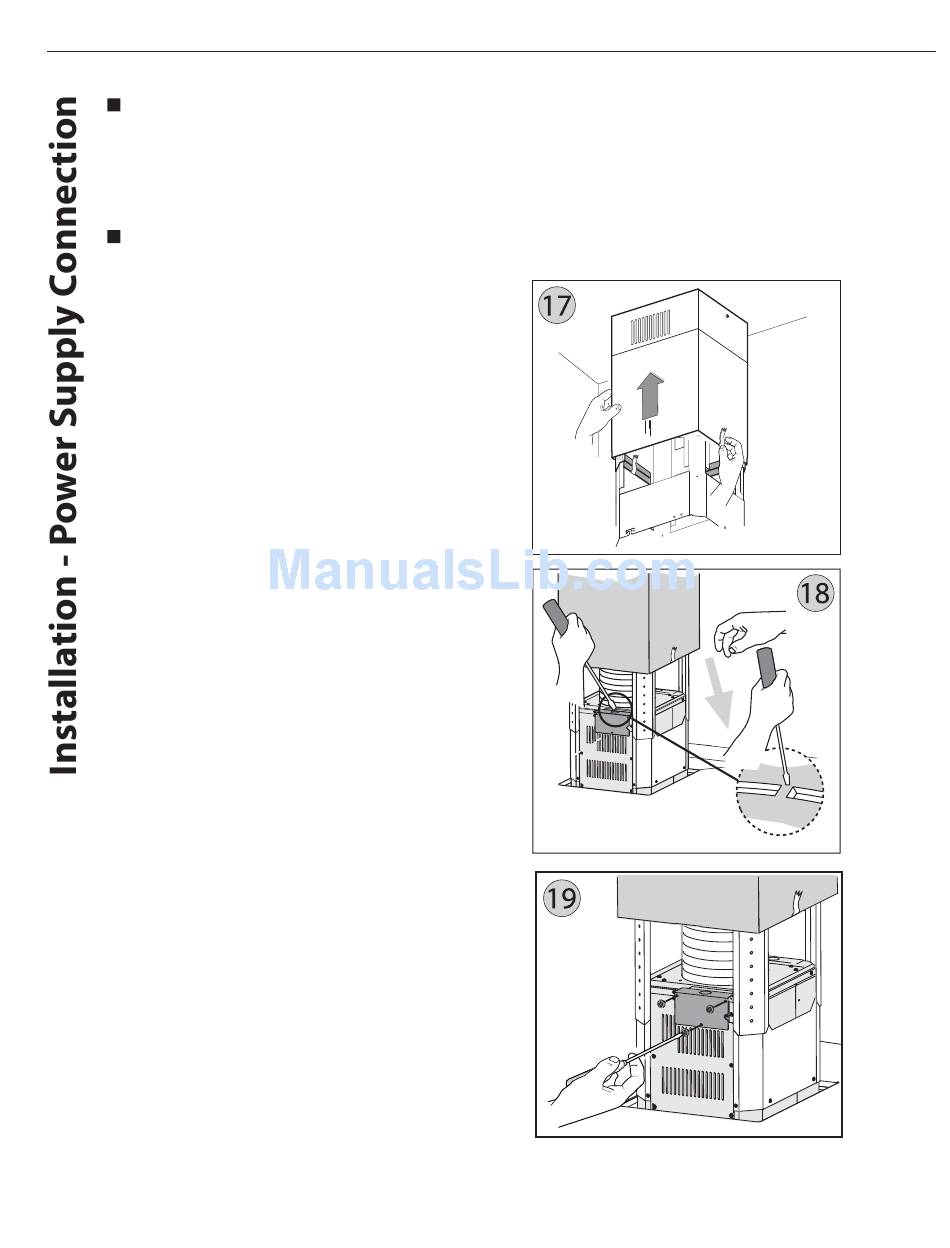

1. Temporarily join the two duct covers by
lifting the bottom one and then carefully
securing it to the top by using adhesive
tape. Fig. 17. Take care not to scratch the
duct covers.
2. Break out the partially pre-cut circle in the
cover of the mains power connection en-
closure using a fl at head screwdriver. Fig.
18
3. Remove the power supply cover by un-
doing the (2) screws. Fig. 19
4. Connect the supply conduit to the cover,
then connect the hood to the power sup-
ply by making the following connections.
Fig. 20:
BLACK = L line
WHITE = N neutral
GREEN / YELLOW = G ground
- A double-pole switch properly rated must
be installed to provide the range hood po-
wer supply disconnection.
