External & In-Line Blower Preparation - Zephyr ALL-E42ABX Installation Instructions Manual

The following instructions are for preparing the hood for use with an ex-
ternal or in-line blowers models CBE-1000 or PBN-1000A.
CAUTION: To reduce the risk of fi re and electric shock, install this rangehood
only with remote blowers rated maximum 6.2 A.
For internal blower instructions please turn to page 12.

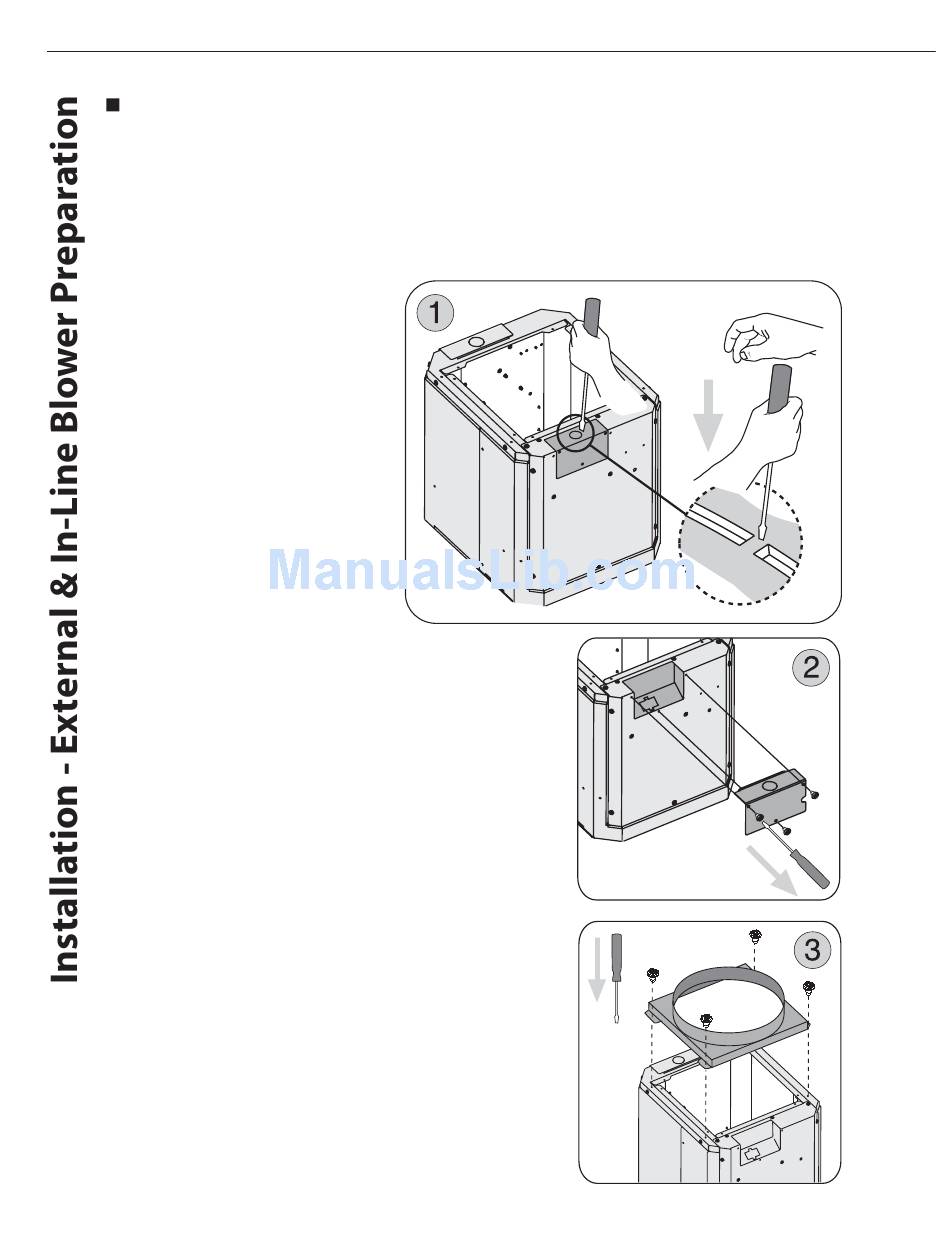

1. Break out the partially pre-
cut circle in the lid, located
on the remote motor sup-
port bracket, using a fl at
head screwdriver. Fig. 1
2. Remove the cover by un-
doing the (3) screws. Fig. 2
3. Secure 8" round blower collar to top of blower
housing using (4 type B) screws. Fig.3
4. Insert the female connector into the remote
motor support bracket enclosure. Fig.4
5. Pass the wires of the remote motor through the
hole in the cover that was previously removed
and connect them with those of the connector
located in the enclosure. Fig. 5
Note: Carry out the power supplly connection
in accordance with the national electric code,
ANSI/NFPA 70-1999.
