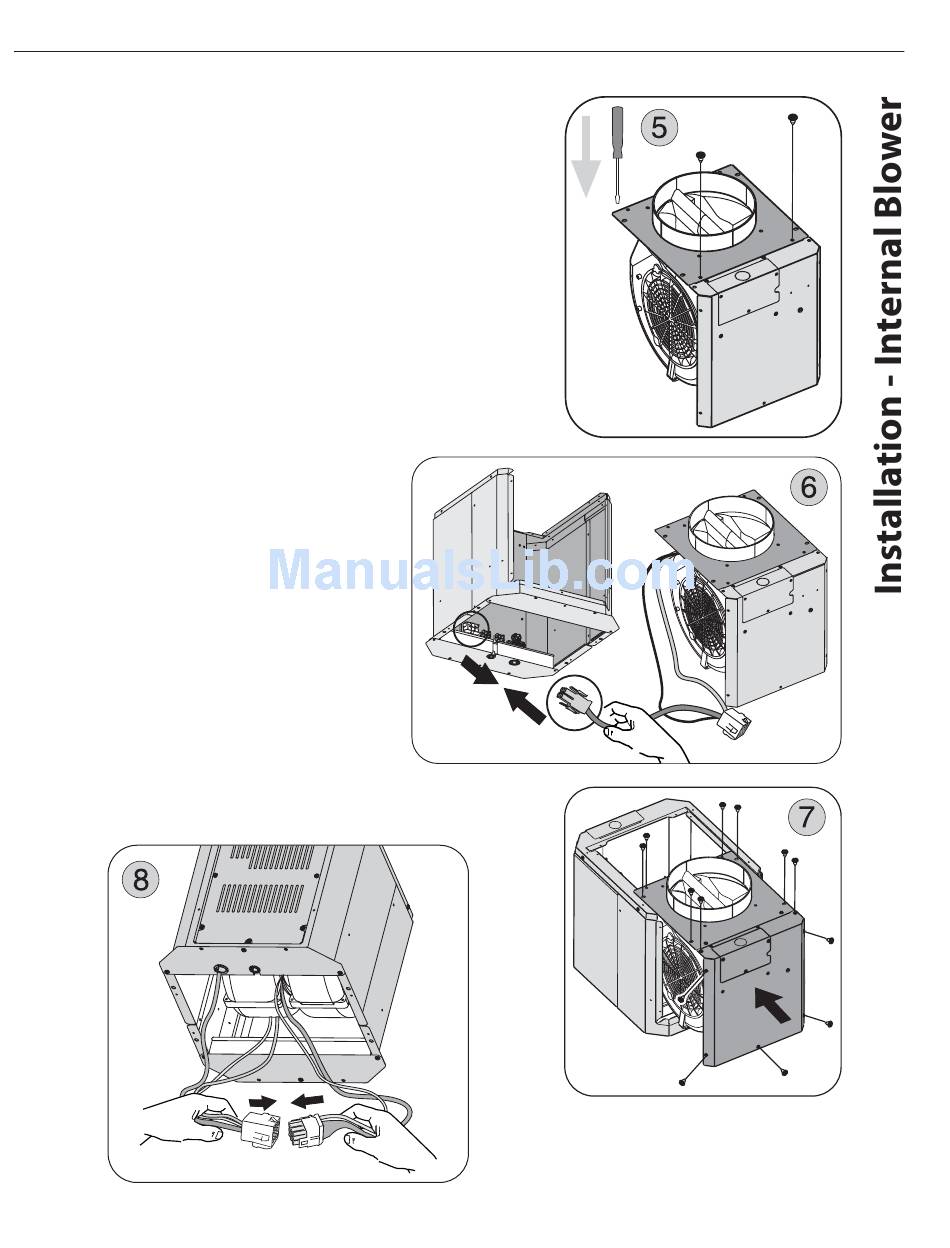

6. Attach the 6 pin male molex connector from
blower wire to the 6 pin female molex con-
nector located inside the blower housing. See
Fig.6
7. Install the motor and bracket, inside the motor
housing, completing the installation using the
other screws (6 type B )that have been sup-
plied. (Tot. 13 type B). Fig. 7
8. Connect 9 pin male molex connector from
blower wire to 9 pin female molex connector
on the capacitor wire. See Fig.8
WARNING! Place
wiring inside the blower hou-
sing.
The hood is now ready to be
installed on the wall.
