Quick-Start Guide
2.2.2 ADC08L060EVM Setup
Next, setup the ADC08L060EVM using the following:
1. Connect the banana jack power-supply cables to the EVM. Connect the red wire to 5 VDC ±0.1 VDC
of a power supply rated for at least 3 A to connector J4. Connect the black wire to J5 (GND) of the
power supply.
2. Turn on the power supply. The power draw should be around 0.6 A.
3. Set the analog input signal generator for 10.1-MHz, –1 dB from full scale.
4. Place a 10-MHz bandpass filter at the output of the analog signal generator to remove noise and
harmonics from the signal generator.
5. Connect the analog input signal generator to the EVM though SMA connector INPUT (J6) and provide
a 10.1-MHz signal.
2.3

Software Setup Procedure

The software can be opened and configured once the hardware is properly set up.
2.3.1 HSDC Pro GUI Configuration
1. Open High Speed Data Converter Pro by going to Start Menu → All Programs → Texas Instruments →
High Speed Data Converter Pro. The GUI main page looks as shown in
2. When prompted to select the capture board, select the TSW1400 whose serial number corresponds to
the serial number on the TSW1400EVM and click OK. This popup can be accessed through the
Instrument Options menu.
3. If no firmware is currently loaded, there is a message indicating this. Click on OK.
4. Verify the ADC tab at the top of the GUI is selected.
5. Use the Select ADC drop-down menu at the top left corner to select ADC08060_cmos.
6. When prompted to update the firmware for the ADC, click Yes and wait for the firmware to download to
the TSW1400. This takes a couple of seconds.
7. Enter "60M" into the ADC Output Data Rate field at the bottom left corner then click outside this box or
press Return on the PC keyboard.
8. Click Capture in HSDC Pro to capture data from the ADC.
6
ADC08L060 Evaluation Module

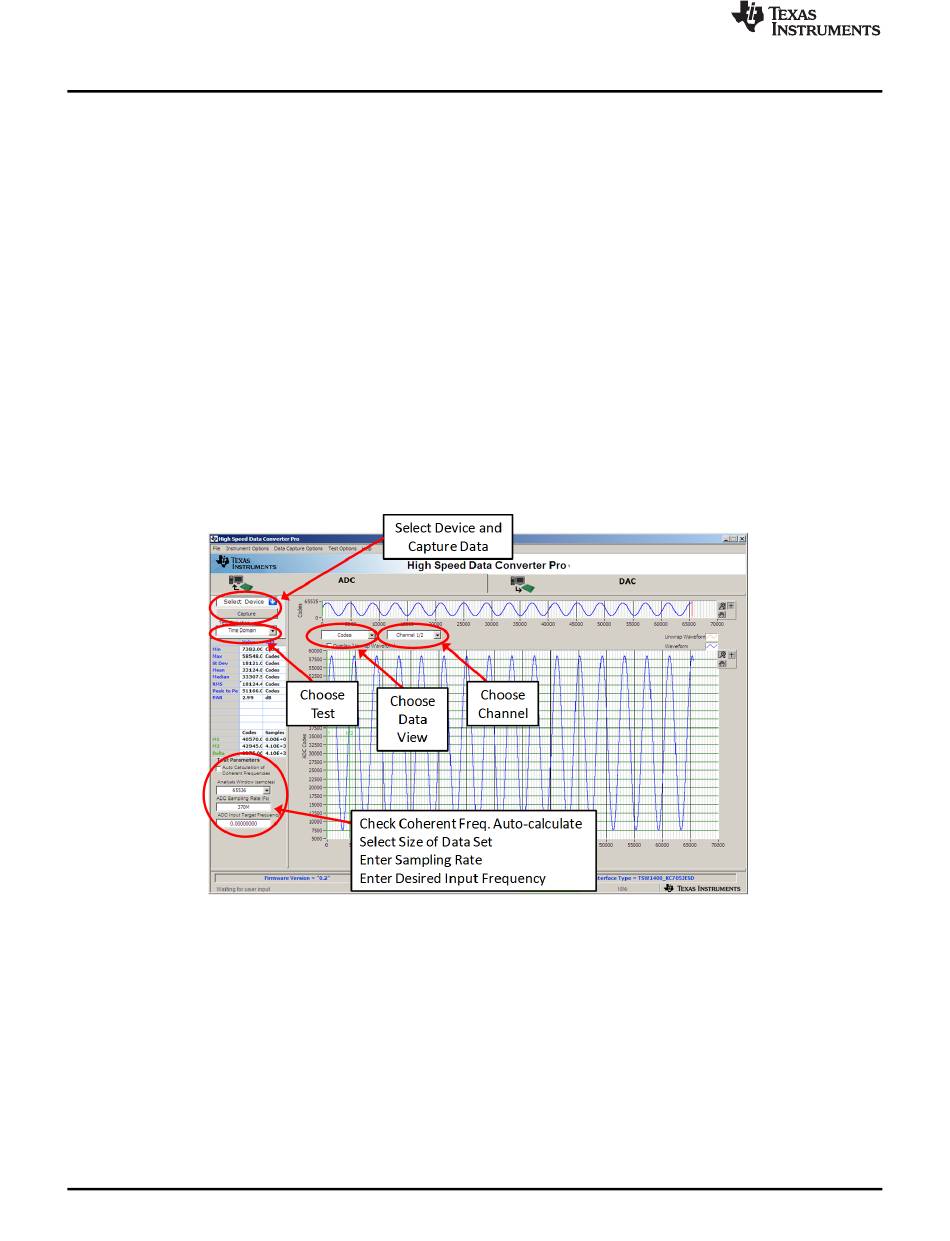

Figure 3. HSDC Pro GUI Main Panel
