  • Page 4: Introduction

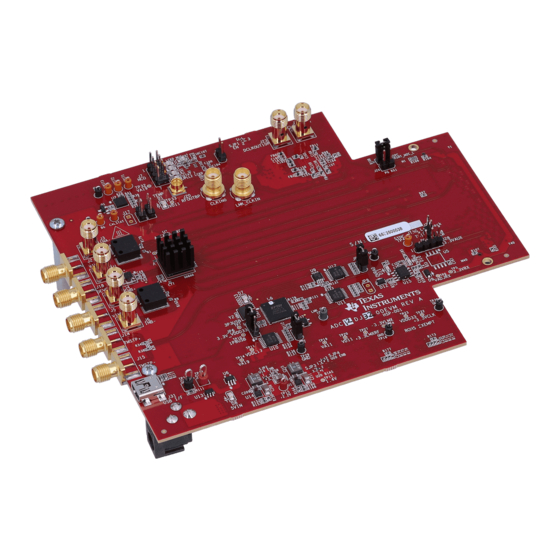

    The ADCxxDJxx00EVM is an evaluation board used to evaluate the ADCxxDJxx00 family (ADC08DJ3200, ADC12DJ2700 and ADC12DJ3200) of analog-to-digital converters (ADC) from Texas Instruments. The ADCxxDJxx00 devices are dual-channel, 8 or 12-bit ADCs, capable of operating at sampling rates up to 3.2 Giga-samples per second (GSPS) in dual channel mode or 6.4 GSPS in single channel mode.
  • Page 5: Evm Orientation

    In the following sections of this document, the ADCxxDJxx00 evaluation board is referred to as the EVM and the ADCxxDJxx00 device is referred to as the ADC device. SLAU701A – May 2017 – Revised January 2018 Introduction Submit Documentation Feedback Copyright © 2017–2018, Texas Instruments Incorporated...
  • Page 6: Equipment

    This section describes how to setup the EVM on the bench with the proper equipment to evaluate the full performance of the ADC device. Evaluation Board Feature Identification Summary Figure 2-1. EVM Feature Locations Equipment SLAU701A – May 2017 – Revised January 2018 Submit Documentation Feedback Copyright © 2017–2018, Texas Instruments Incorporated...
  • Page 7: Required Equipment

    NOTE: The clock source used to drive the LMK04828 (labeled LMKCLK) must be equal in frequency to the ADC sampling clock (labeled DEVCLK). The clock generators must be frequency- locked using a common 10-MHz reference. SLAU701A – May 2017 – Revised January 2018 Equipment Submit Documentation Feedback Copyright © 2017–2018, Texas Instruments Incorporated...
  • Page 8: Setup Procedure

    Figure 3-1. EVM Test Setup NOTE: The HSDC Pro software must be installed before connecting the TSW14J57EVM to the PC for the first time. Setup Procedure SLAU701A – May 2017 – Revised January 2018 Submit Documentation Feedback Copyright © 2017–2018, Texas Instruments Incorporated...
  • Page 9: Install The High Speed Data Converter (Hsdc) Pro Software

    0.8 to 3.2 GHz. Set the output power to approximately 6–9 dBm. SLAU701A – May 2017 – Revised January 2018 Setup Procedure Submit Documentation Feedback Copyright © 2017–2018, Texas Instruments Incorporated...
  • Page 10: Turn On The Tsw14J57Evm Power And Connect To The Pc

    Open the ADCxxDJxx00EVM GUI and Program the ADC and Clocks The Device Configuration GUI is installed separately from the HSDC Pro installation and is a stand-alone GUI. Setup Procedure SLAU701A – May 2017 – Revised January 2018 Submit Documentation Feedback Copyright © 2017–2018, Texas Instruments Incorporated...
  • Page 11: Configuration Gui Evm Tab

    If using the ADC08DJ3200EVM, select JMODE5 for the decimation and serial data mode. 5. Click Program Clocks and ADC (Note: This action will overwrite any previous device register settings.) SLAU701A – May 2017 – Revised January 2018 Setup Procedure Submit Documentation Feedback Copyright © 2017–2018, Texas Instruments Incorporated...
  • Page 12: 3.10 Calibrate The Adc Device On The Evm

    Navigate back to the Control tab and click the Cal Triggered/Running button once, then click it again. This restarts the Calibration engine. Setup Procedure SLAU701A – May 2017 – Revised January 2018 Submit Documentation Feedback Copyright © 2017–2018, Texas Instruments Incorporated...
  • Page 13: 3.11 Open The Hsdc Software And Load The Fpga Image To The Tsw14J57Evm

    SLAU701A – May 2017 – Revised January 2018 Setup Procedure Submit Documentation Feedback Copyright © 2017–2018, Texas Instruments Incorporated...
  • Page 14: High Speed Data Converter Pro (Hsdc) Gui

    The HSDC Pro GUI will calculate the ADC Output Data Rate based on these inputs. The Fundamental and Harmonic frequency locations will also be calculated and identified in the FFT display. Setup Procedure SLAU701A – May 2017 – Revised January 2018 Submit Documentation Feedback Copyright © 2017–2018, Texas Instruments Incorporated...
  • Page 15: Additional Device Parameters Dialog Box

    Session ADC Sample Rate Before Decimation ADC Input Frequency NCO Frequency Decimation Factor Figure 3-5. Additional Device Parameters Dialog Box SLAU701A – May 2017 – Revised January 2018 Setup Procedure Submit Documentation Feedback Copyright © 2017–2018, Texas Instruments Incorporated...
  • Page 16: Device Configuration

    JESD204B settings. Once the settings are changed, re-enable the JESD204 block. Tab Organization Control of the ADC device features are available in the EVM, Control, JESD204B, NCO Configuration tabs. Device Configuration SLAU701A – May 2017 – Revised January 2018 Submit Documentation Feedback Copyright © 2017–2018, Texas Instruments Incorporated...
  • Page 17: Low-Level Control

    Perform a generic read or write command to the device shown in the Block drop-down box using read or write register buttons the address and write data information Figure 4-1. Low-Level Register Control Tab SLAU701A – May 2017 – Revised January 2018 Device Configuration Submit Documentation Feedback Copyright © 2017–2018, Texas Instruments Incorporated...
  • Page 18: Troubleshooting The Adcxxdjxx00Evm

    • Verify that bandpass filters are used in the clock and input signal paths and that low-noise signal sources are used. Troubleshooting the ADCxxDJxx00EVM SLAU701A – May 2017 – Revised January 2018 Submit Documentation Feedback Copyright © 2017–2018, Texas Instruments Incorporated...
  • Page 19: References

    Refer to the TSW14J57EVM user guide (SLWU092) for configuration and status information. TSW14J56EVM Operation Refer to the TSW14J56EVM user guide (SLWU086) for configuration and status information. SLAU701A – May 2017 – Revised January 2018 References Submit Documentation Feedback Copyright © 2017–2018, Texas Instruments Incorporated...
  • Page 20: Hsdc Pro Settings For Optional Adc Device Configuration

    SYSREF LMK_CLK FPGA_JESD_SYSREF LMK04828 FPGA_JESD_CLK_A FPGA_JESD_CLK_B CpOut1 CLKIN0 Figure B-1. ADC12DJxx00EVM Clocking System Block Diagram HSDC Pro Settings for Optional ADC Device Configuration SLAU701A – May 2017 – Revised January 2018 Submit Documentation Feedback Copyright © 2017–2018, Texas Instruments Incorporated...
  • Page 21: External Lmkclk Configuration

    Enter the Sampling Frequency (F ) in step 2(b). DEVCLK Figure B-2. External LMKCLK Configuration SLAU701A – May 2017 – Revised January 2018 HSDC Pro Settings for Optional ADC Device Configuration Submit Documentation Feedback Copyright © 2017–2018, Texas Instruments Incorporated...
  • Page 22: External Devclk Evm Configuration

    For a full evaluation platform, see the LMK04828 tool folder LMX2582 tool folder. HSDC Pro Settings for Optional ADC Device Configuration SLAU701A – May 2017 – Revised January 2018 Submit Documentation Feedback Copyright © 2017–2018, Texas Instruments Incorporated...
  • Page 23: C Signal Routing

    Changes from Original (May 2017) to A Revision ......................Page ..• Broadened scope of user guide from ADC12DJ3200 to include the ADC08DJ3200 and ADC12DJ2700 devices. SLAU701A – May 2017 – Revised January 2018 Signal Routing Submit Documentation Feedback Copyright © 2017–2018, Texas Instruments Incorporated...
