3.2.- INSTALLATION
Terminals, opening covers or removing elements can expose parts that are
hazardous to the touch while the device is powered. Do not use the device until
it is fully installed.
The device should be installed inside an electric panel or enclosure, and panel-mounted.
The following steps must be taken for correct installation:
1�- Make a cut in the panel, according to the dimensions in
2�- From outside, insert the device into the panel cut-out (
3 �- Fully insert the device and fasten it by using the spring (
The device must be connected to a power circuit protected by a fuse with a maximum nominal
Instruction Manual
91

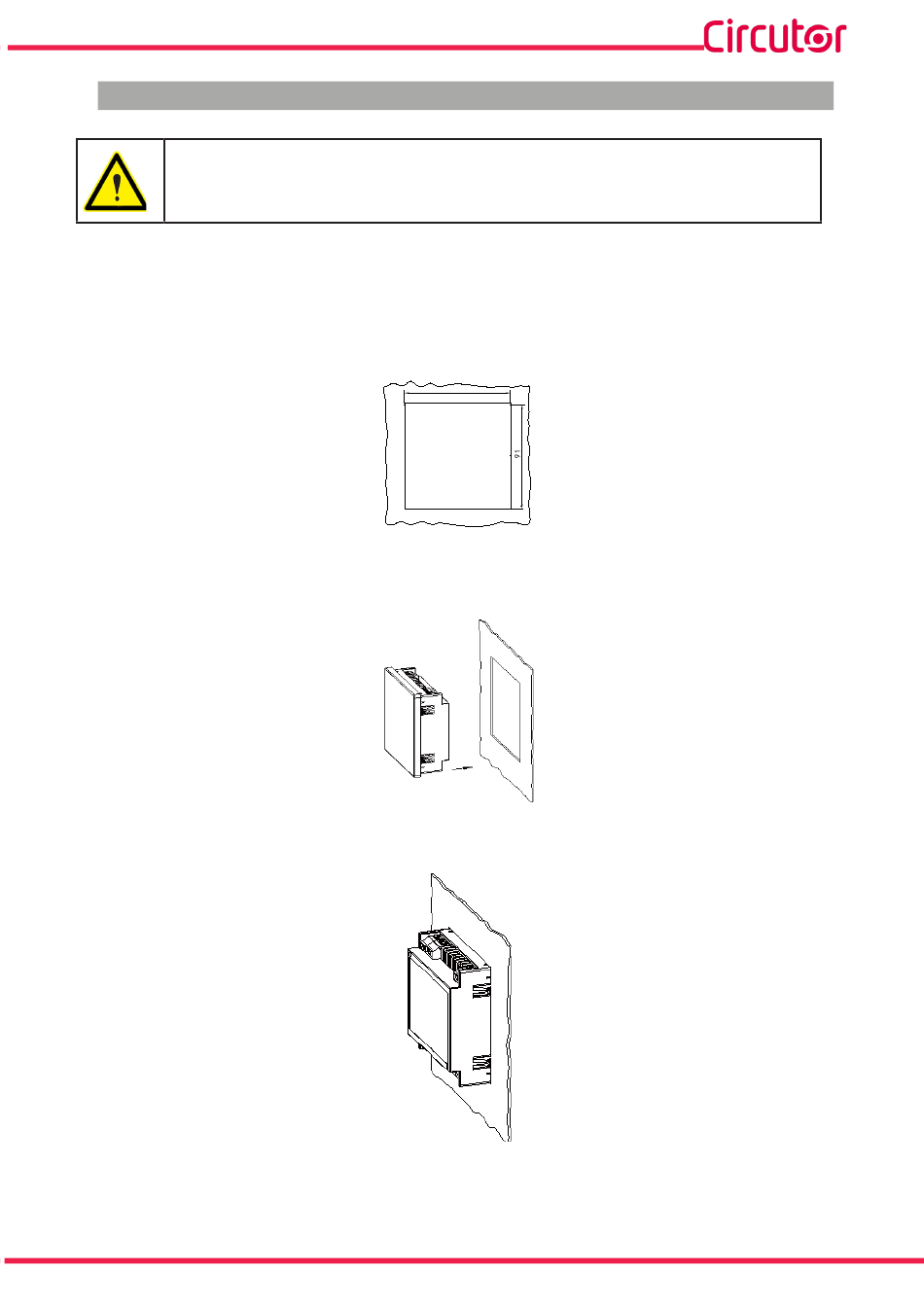

Figure 1: Cut in the panel
Figure 2: Insert the device
Figure 3: Fully insert the device
Figure 1
)
Figure 2
)
Figure 3
