Once converted to NG, this appliance is certifi ed for
use from 0–4500 feet. For altitudes above 4500 feet,
see local codes.
Kit Contents
1 Pilot injector (marked 35)
1 Burner
1 Injector (marked 650)
1 Set of conversion labels
1 Set of air shutters
Tools Required
•
Wrenches, to disconnect gas line
•
Phillips (+) screwdriver, to remove burner module &
pilot shield
•
Small (jewelers size) fl at blade screwdriver, to set
pressure
•
Small fl at blade screwdriver, to release pressure tap
on valve
•
Needle nose pliers, to remove by-pass screw
•
Hex (Allen) wrench, 4 mm or 5/32", to remove pilot
injector
•
Manometer, to set manifold at the valve
Rating
Maximum 24,000 Btu/hr
Minimum 6,500 Btu/hr
General notes regarding conversion
The conversion may be done before or after the
appliance is installed into the cavity. However, the
gas must be connected in order to set the manifold
pressure.
4002602-02
L
EGEND

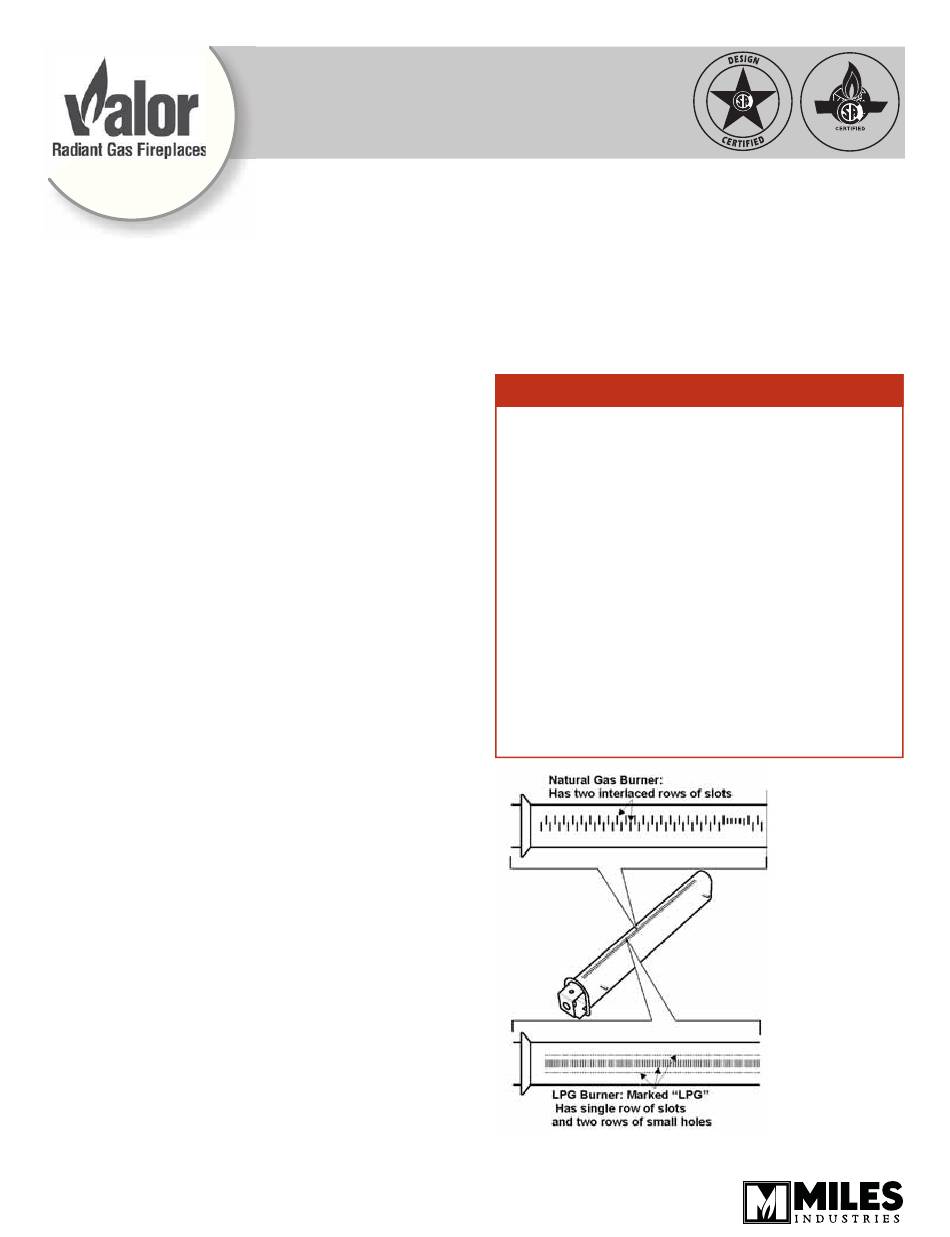

Natural Gas Conversion Kit
738NGK
Use with with Valor Models 738XB Heater ONLY
Installation Instructions
© 2011, Miles Industries Ltd. All rights reserved.
G3
WARNING
This conversion kit shall be installed by a
qualifi ed service agency in accordance with
the manufacturer's instructions and all appli-
cable codes and requirements of the authority
having jurisdiction. If the information in these
instructions is not followed exactly, a fi re, ex-
plosion or production of carbon monoxide may
result causing property damage, personal in-
jury or loss of life. The qualifi ed service agency
is responsible for the proper installation of this
kit. The installation is not proper and complete
until the operation of the converted appliance
is checked as specifi ed in the manufacturer's
instructions supplied with the kit.
Use this manual in conjunction with the instal-
lation manual supplied with the appliance.
Advertisement
Related Manuals for Valor Legend G3 Series
Summary of Contents for Valor Legend G3 Series
- Page 1 EGEND Natural Gas Conversion Kit 738NGK Use with with Valor Models 738XB Heater ONLY Installation Instructions Once converted to NG, this appliance is certifi ed for WARNING use from 0–4500 feet. For altitudes above 4500 feet, This conversion kit shall be installed by a see local codes.
- Page 2 Conversion Procedure 7. Detach the two burner support brackets from the burner by removing two nuts, using a 5/16” (8 mm) 1. If the fi replace is already installed, remove the wrench. window, ceramic logs and brick liners. 2. Disconnect the gas inlet pipe from the inlet elbow fi...
- Page 3 Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication. Designed and Manufactured by / for Miles Industries Ltd. 190 – 2255 Dollarton Highway, North Vancouver, B.C., CANADA V7H 3B1 Tel. 604-984-3496 Fax 604-984-0246 www.valorfi replaces.com...
-
Page 4: Directives D'installation
EGEND Kit de conversion au gaz naturel 738NGK Utilisez avec les foyers Valor 738XB SEULEMENT Directives d’installation Une fois converti au gaz naturel, cet appareil est AVERTISSEMENT homologué pour fonctionner de 0 à 4 500 pieds. Pour Ce kit de conversion doit être installé par une altitudes au-dessus de 4 500 pieds, consultez la agence de service qualifi... - Page 5 Procédure de conversion 7. Détachez les 2 supports de brûleur du brûleur en enlevant 2 boulons à l’aide d’une clé de 5/16” 1. Si le poêle est déjà installé, enlevez la devanture, la (8 mm). fenêtre, les bûches et panneaux de céramique. 2.
- Page 6 11. Enlevez le couvercle de la soupape à l’aide du 15. À l’aide de la lame plate d’un petit tourvenis, tournevis spécial à deux pointes. Forcez gentiment dévissez la vis de réglage de pression d’admission. le couvercle à l’aide d’un petit tournevis tel Fixez un manomètre à...
