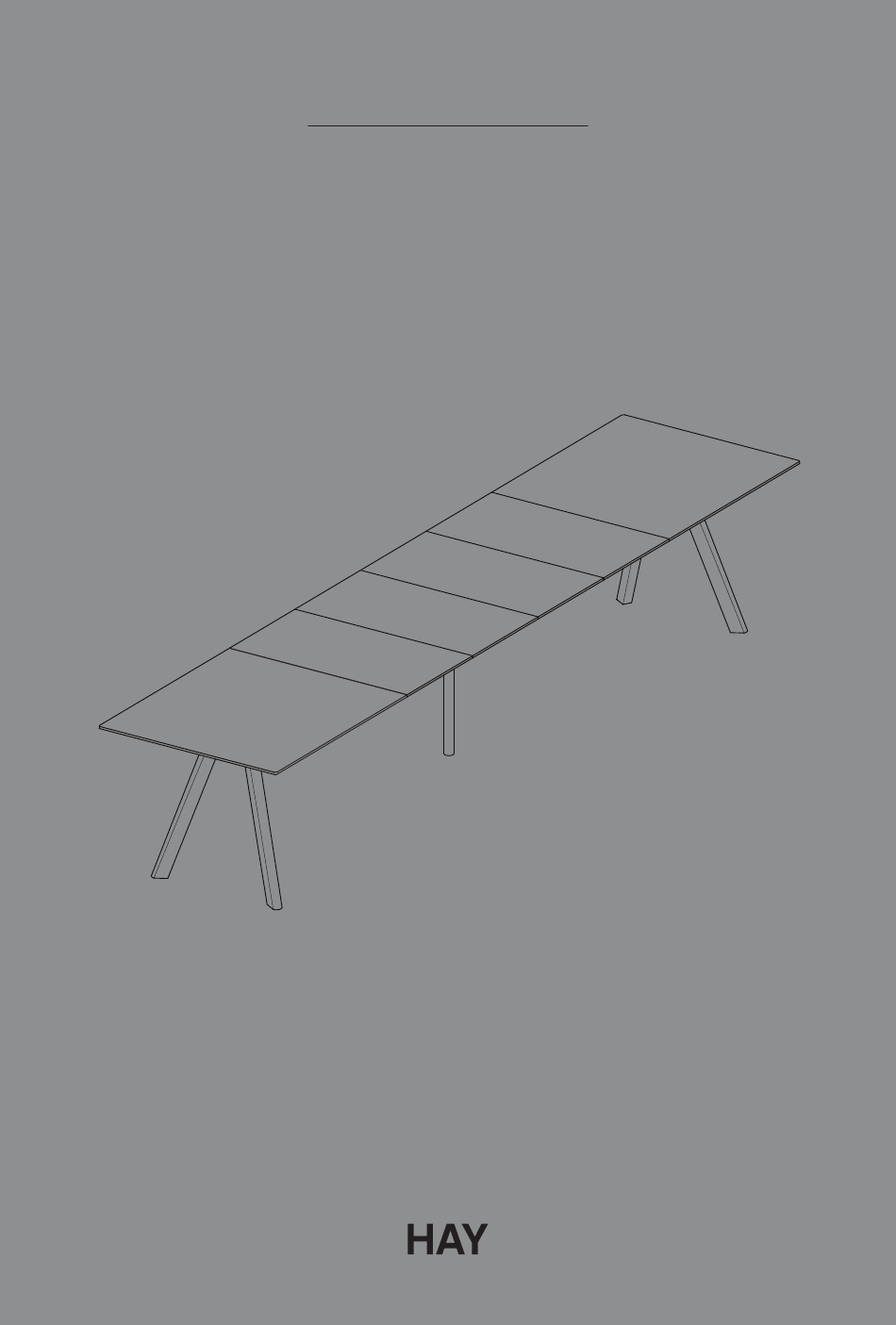

- Page 1 I NST RUCTION M A N UA L C PH 3 0 E X T E N DA B L E B y R o n a n & E r w a n B o u r o u l l e c...
- Page 2 CPH30 Extendable is available in a number of sizes with an oak frame in different finishes, and the tabletop comes in a variety of wood, laminate...
- Page 3 C A R E A N D M A I N T ENA NCE CAUTION With a little care you can prolong the life of your • Tighten up the screws after one to two months’ furniture. Follow the instructions for the materials of use and whenever required.
- Page 4 C A R E A N D M A I N T ENA NCE LACQUERED OR STAINED WOOD LINOLEUM • Wipe with a clean cloth wrung in water or in a • Wipe with a clean cloth wrung in water or in a solu- solution of water and a neutral detergent.
- Page 5 PA RTS Tabletop (A) x 1 Table leg (B) x 1 Table leg (C) x 1 Allen key (D) x 1 Screw (E) x 16...
- Page 6 While assembling, keep the table inside the cardboard box with the foam edge, in order to protect the tabletop from scratches etc. Make sure that all the parts are included.
- Page 7 Place the legs on the tabletop as illustrated below. Table leg (B) Table leg (C) Note that the legs are not identical.
- Page 8 Tighten the screws (part E) using the Allen key (part D).
- Page 9 Make sure that the mechanism is locked, before turning the table over (2 people are recommended).
- Page 10 EXT EN DI NG THE TA BL E W I TH UP TO 2 L E AV ES Unlock the mechanism by pulling the handle. Extend the table by lifting it at one or both ends and pull it towards you.
- Page 11 Make sure to make enough space for 1 or 2 leaves. Place the table leaves at a slight angle, as illustrated below. Make sure that the pins are securely inserted into the holes.
- Page 12 Push both ends of the table to close the centre gap and then lock the mechanism.
- Page 13 EXT R A PA RTS - TA BL E 160 X 80 Table leaf (50 x 80 cm) - MAXIMUM 3 Support leg - Required when using more than 2 table leaves EXT R A PA RTS - TA BL E 20 0 X 90 A N D 250 X 90 Table leaf (50 x 90 cm) - MAXIMUM 4 Support leg - Required when using more than 2 table leaves...
- Page 14 EXT EN DI NG THE TA BL E W I TH MOR E TH A N 2 L E AV ES Unlock the mechanism by pulling the handle. Extend the table by lifting it at one or both ends and pull it towards you.
- Page 15 Place the supporting leg into the central steel bracket. Slightly lift the mechanism if needed. Adjust the supporting leg glider if needed, to make sure the tabletop is level.
- Page 16 Place the table leaves at a slight angle as illustrated below. Make sure that the pins are securely inserted into the holes. Push both ends of the table to close the centre gap and then lock the mechanism.
- Page 17 Adjust the supporting leg angle if needed. Lock the mechanism underneath the tabletop.
