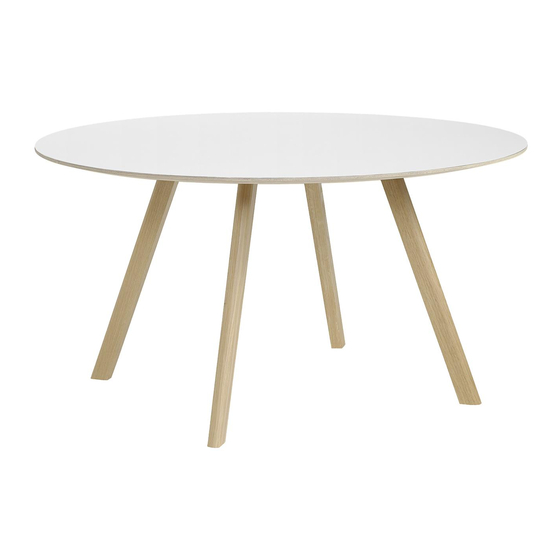

- Page 1 I NST RUCTION M A N UA L C O P E N H A G U E TA B L E C P H 25 B y R o n a n & E r w a n B o u r o u l l e c...
- Page 2 I N T RODUCTION Copenhague is a furniture series designed by Ronan and Erwan Bouroullec designed especially for the University of Copenhagen in 2013. In addition to a homely and welcoming expression, functionality, durability and ease of cleaning were important design requirements for the university.
- Page 3 C A R E A N D M A I N T ENA NCE C A R E A N D M A I N T ENA NCE LACQUERED, STAINED OR PAINTED WOOD LINOLEUM CAUTION With a little care you can prolong the life of your •...
- Page 4 PA RTS NOT E ON HOW TO USE THE A S SEMBLY BR ACK ETS The instructions below show how to assemble the brackets, which appear in different steps throughout the instruction manual. Do not assemble them before the rest of the table, but wait until the relevant steps require their assembly.
- Page 5 While assembling, keep the table inside the cardboard box with foam edge in order to Place 4 x C parts in the holes as indicated. Please make sure that the threads on the C parts protect the tabletop from scratches etc. Make sure that all parts are included. are pointing upwards and the holes are facing each other.
- Page 6 Place 2 of the D parts into the holes as indicated. Make sure that the Carefully drop 4 x E into the holes as indicated, and gently tighten tapered holes are pointing upwards. all four parts little by little with the Allen key. Tighten all 4 of the E parts completely.
- Page 7 Place 8 of the C parts into the holes as indicated. Make sure that the threads are Place 4 of the D parts into the holes as indicated at the same time. pointing upwards and that the holes are facing each other. Make sure that the tapered holes are pointing upwards.
- Page 8 Carefully drop 8 x E parts into the holes as indicated, and gently tighten Tighten all 8 x E parts completely. all E parts little by little with the Allen key.
- Page 9 1 1. Use 4 of the F parts for perfect alignment. Screw them lightly Screw in the rest of the screws in the remaining free holes. in the hole, but don’t tighten them completely. Screw all screws in lightly before starting to tighten them.
- Page 10 Turn the table over (2 persons recommended).
- Page 11 Havnen 1 8700 Horsens Denmark +45 4282 0282 / hay@hay.dk ITEM NO. 706305 5 710441 206576 04072017...
- Page 12 CPH10 / L200 X D90 CM CPH20 / Ø90 X H74 CM CPH20 / Ø120 X H74 CM CPH25 / Ø140 X H74 CM CPH30 / L200 X W90 CM CPH30 / L250 X W90 CM CPH30 / L300 X W90 CM...
- Page 13 CPH10 / L200 X D90 CM CPH20 / Ø90 X H74 CM CPH20 / Ø120 X H74 CM CPH25 / Ø140 X H74 CM CPH30 / L200 X W90 CM CPH30 / L250 X W90 CM CPH30 / L300 X W90 CM...
