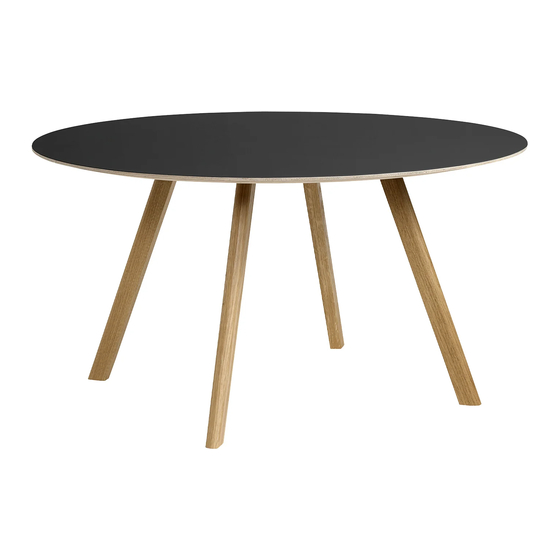

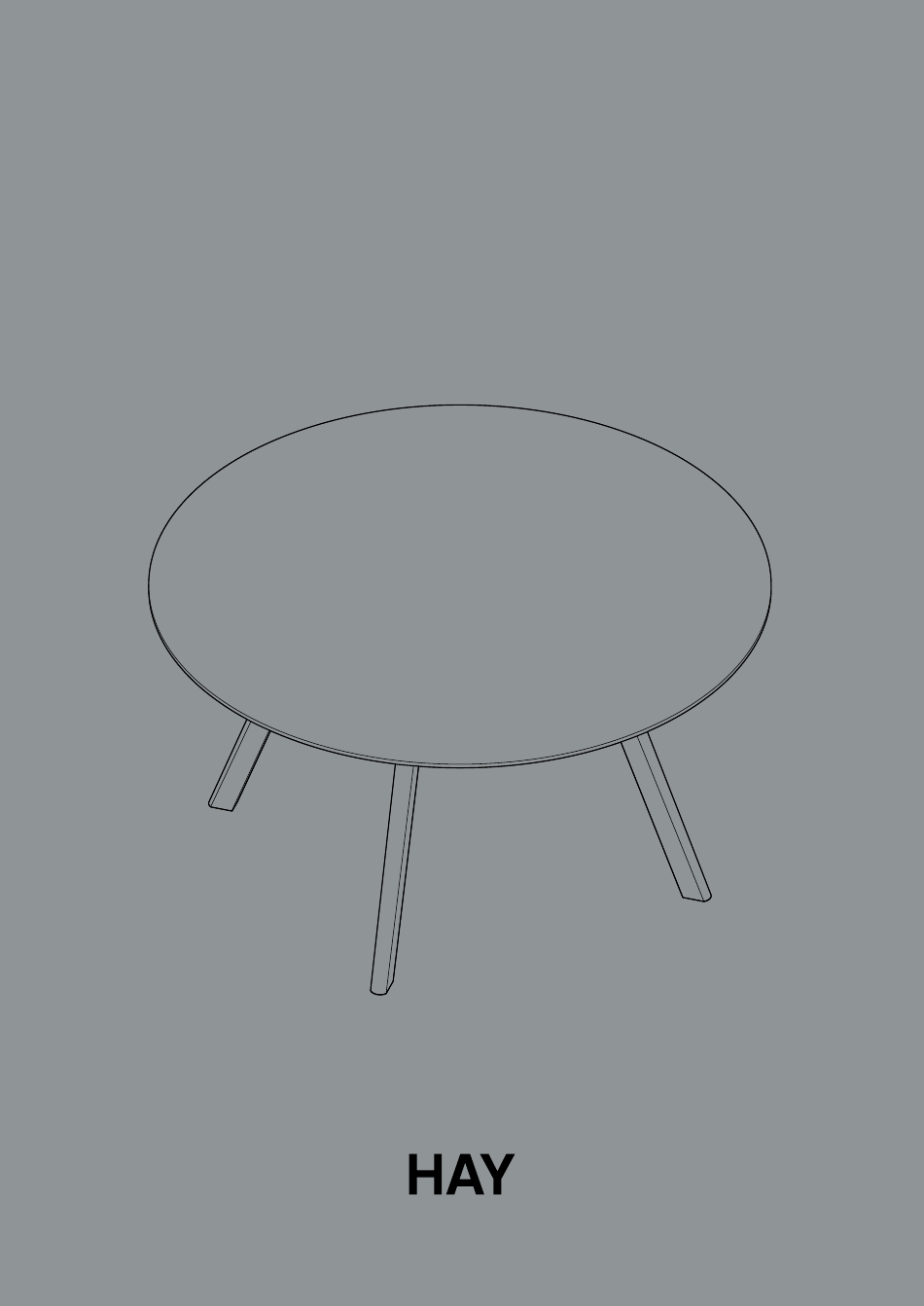

- Page 1 – INSTRUCTION MANUAL – CPH 25 Ø140 X H74 DESIGN BY BY RONAN & ERWAN BOUROULLEC...
- Page 3 – PARTS – Leg x4 Screw x16 Screw x20 Allen key Crossbar x2 Crossbar x2 Bracket x4 Table top x1...
- Page 4 Protect the table top from scratches and other damage while assembling.
- Page 5 Place the crossbars followed by the brackets on the table top and fasten them with the screws using the Allen key . Insert all the screws and only tighten them loosely. Do not tighten them completely until step 5. NOTICE Be aware of the different lengths of the screws.
- Page 6 Slide the crossbars in, under the brackets . Fasten them with the screws using the Allen key . Insert the screws and only tighten them loosely. Do not tighten them completely until step 5. NOTICE Be aware of the different lengths of the screws.
- Page 7 Slide the legs in, underneath the brackets on the table top.
- Page 8 Secure the legs with the screws using the Allen key . Insert all the screws and only tighten them loosely. Do not tighten them completely until step 5. NOTICE Be aware of the different lengths of the screws. Using the incorrect screw could damage the table.
- Page 9 Tighten all the screws completely. Then turn the table over. (2 persons recommended). NOTICE Tighten all the screws completely.
- Page 10 If the floor is uneven and the table is wobbly, you can turn the feet to adjust them up and down to stabilise the table.
-
Page 11: Care And Maintenance
Please find our Care & Maintenance guide by scanning the QR code You can find more relevant information on CPH 25 by scanning the QR code You can also find the same information here hay.dk/downloads... - Page 16 Havnen 1 8700 Horsens Denmark +45 4282 0282 / hay@hay.com www.hay.com 22/12/2021...
