Summary of Contents for Hay COPENHAGUE CPH90

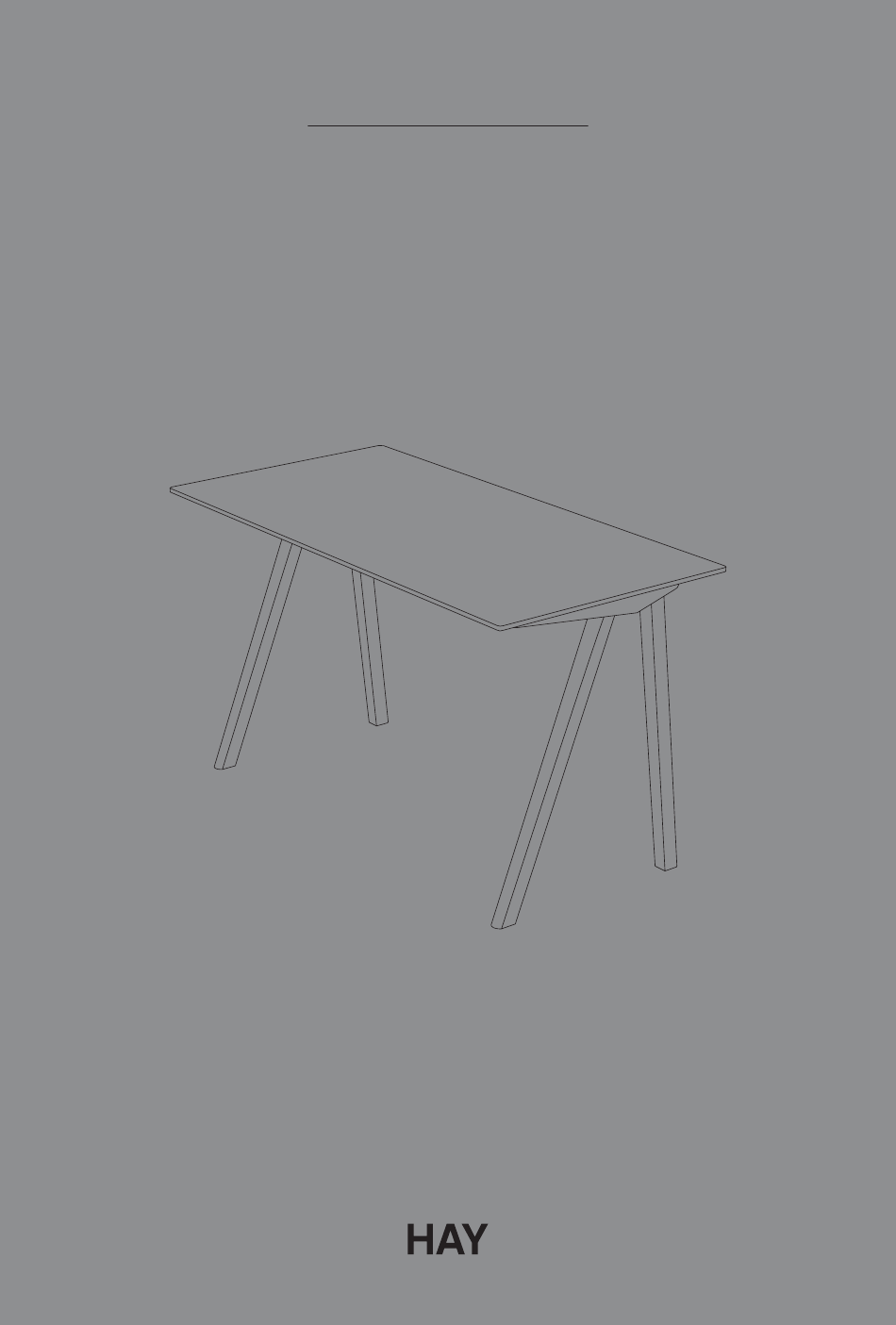

- Page 1 I NST RUCTION M A N UA L C OP E N H AG U E TA B L E C PH 9 0 B y R o n a n & E r w a n B o u r o u l l e c...
- Page 2 I N T RODUCTION Copenhague is a furniture series designed by Ronan and Erwan Bouroullec designed especially for the University of Copenhagen in 2013. In addition to a homely and welcoming expression, functionality, durability and ease of cleaning were important design requirements for the university.
- Page 3 C A R E A N D M A I N T ENA NCE C A R E A N D M A I N T ENA NCE LACQUERED OR STAINED WOOD LINOLEUM CAUTION With a little care you can prolong the life of your •...
- Page 4 PA RTS NOT E ON HOW TO USE THE A S SEMBLY BR ACK ETS The instructions below show how to assemble the brackets, which appear in different steps throughout the instruction manual. Do not assemble them before the rest of the table, but wait until the relevant steps require their assembly.
- Page 5 While assembling, keep the table inside the cardboard box with foam edge in order to protect Use 3 x F screws for perfect alignment. Make sure to place the beam as shown. the tabletop from scratches etc. Make sure that all parts are included. Front Front Now tighten the screws completely.
- Page 6 Place 2 x C parts in the holes as indicated. Make sure that the threads on the C parts are pointing Place 1 x D part and 1 x G part in the holes as indicated. Make sure that the upwards and the holes are facing each other.
- Page 7 Drop 2 x E parts into the holes as indicated and make sure they fit the D parts’ tapered holes. Use a proper screwdriver to fasten the F parts in the remaining free holes in the frame. Gently tighten both E parts little by little. Tighten both x E parts completely.
- Page 8 Turn the table over (2 persons recommended).
- Page 9 Havnen 1 8700 Horsens Denmark +45 4282 0282 / hay@hay.dk ITEM NO. 70631 1 5 710441 206606 05032018...
