Mv Output Test; Figure 3. Phase Check Setup - Fluke i1000s Manual Supplement

Manual Supplement
1 turn coil
or
5500A/coil
mV Output

mV Output Test

1. Connect the equipment as shown in Figure 5.
2. Set the calibrator output and coil for each step of Table 5.
3. Verify that the voltmeter reading is within the "i1000S mV Output" limits of Table 5.
Tie Aux Com and
Normal Com together
using heavy gauge
wire or bus bar.

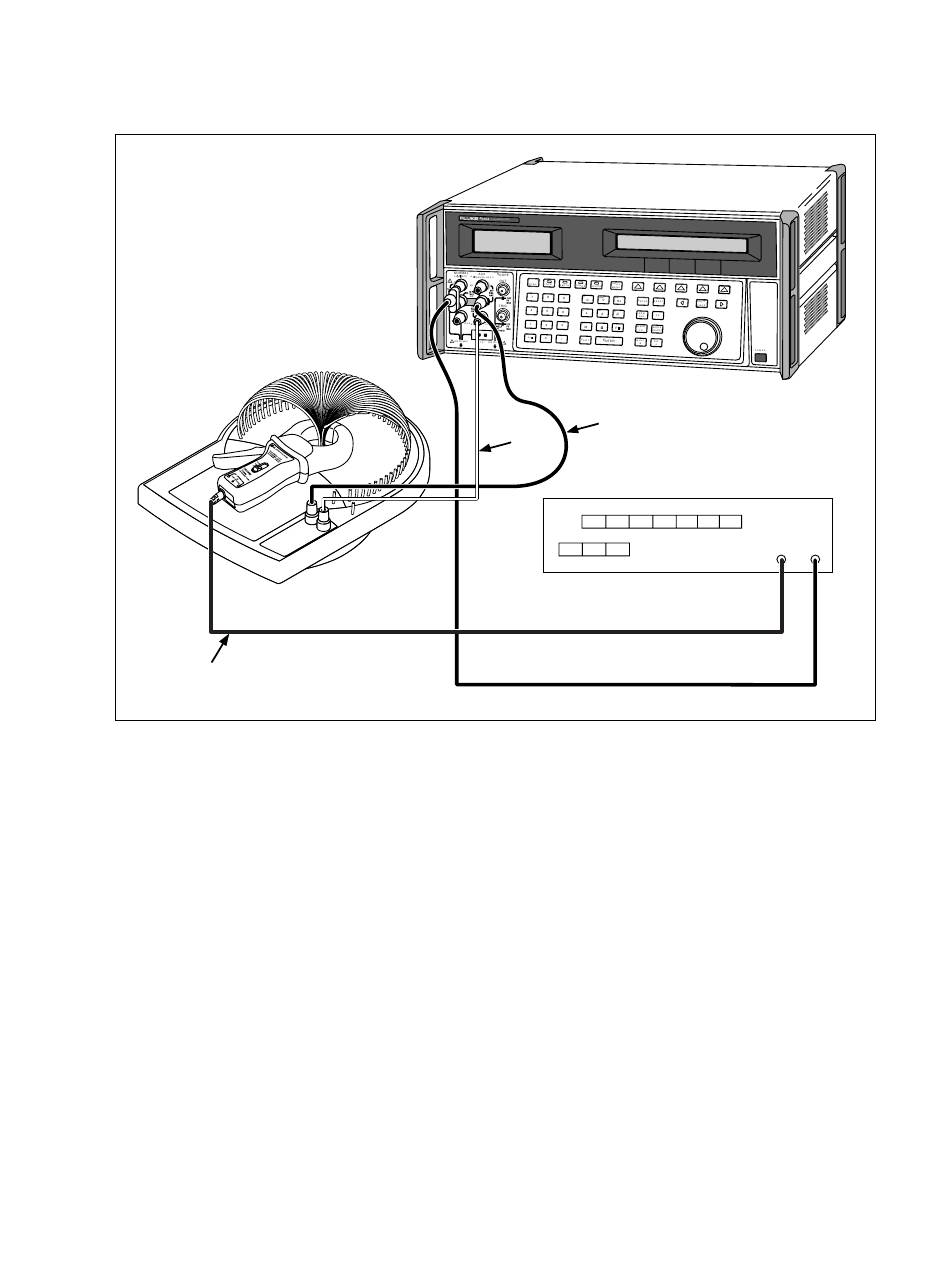

Figure 3. Phase Check Setup

5520A calibrator
Black
Red
Phase meter
2
i1000s Calibration
akp03f.eps
7/01
