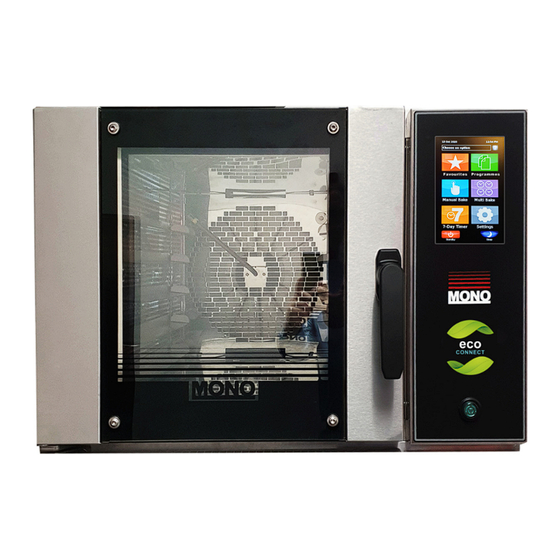

MONO Eco Connect
Convection Oven
Quick Start Guide
EN
Oven Serial Number _________________________________
Oven Code
Condenser Serial Number ____________________________ (if fitted)
In the event of an enquiry, please quote these serial numbers.
FG1BX-UK-QSG-0200 | Rev. A23 (May 2023)
138
149
150
153
158
159
MonoEquip.com
170
173
4/5/7/10-Tray | Steam

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eco Connect FG159 and is the answer not in the manual?

Questions and answers

Related Manuals for Mono Eco Connect FG159

Summary of Contents for Mono Eco Connect FG159

  • Page 1 MonoEquip.com MONO Eco Connect Convection Oven Quick Start Guide Oven Serial Number _________________________________ Oven Code Condenser Serial Number ____________________________ (if fitted) In the event of an enquiry, please quote these serial numbers. 4/5/7/10-Tray | Steam FG1BX-UK-QSG-0200 | Rev. A23 (May 2023)
  • Page 2 4/5/7/10-Tray | Steam FG1BX-UK-QSG-0200 | Rev. A23 (May 2023)
  • Page 3 The reset button hole can be at position 1 or 2 depending on the model B. Rear panel of 10-tray oven. The reset button hole can be at position 1 or 2 depending on the model Reset button hole on the rear panel of a 7-tray oven FG1BX-UK-QSG-0200 | Rev. A23 (May 2023) MONO...

  • Page 4: Safety Symbols

    WARNING Indicates a hazardous situation which, if not avoided, could result in death or severe injury. CAUTION Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury MONO FG1BX-UK-QSG-0200 | Rev. A23 (May 2023)

  • Page 5: Electrical Safety Notice

    Regulations 419.2 and 544.2 WARNING  A 30mA-rated Type ‘A’ RCD must protect the supply to this machine. FG1BX-UK-QSG-0200 | Rev. A23 (May 2023) MONO...
  • Page 6 Place an out-of-service notice on the oven.  Contact your appointed service agent or MONO Equipment for assistance (see Back Page). Ovens need to be maintained and serviced at appropriate intervals to help prevent water leaks from the internal plumbing and external hose connections. See the General Maintenance section.
  • Page 7 Quick Start Guide Eco Connect Convection Ovens | 4/5/7/10-Tray | Steam Thank you for purchasing this MONO Bx Eco Connect oven. “A combination of clean industrial design and the latest technology.” The information in this quick start guide should get your purchase up and running without any problems. There is a complete Installation and Operating Manual available at www.monoequip.com.

  • Page 8: Specifications

    See the Installation and Operation Manual (FG1BX-UK-MAN-0200) for further information. Can be stacked with a 4/5-tray oven only. Base units are 300 mm up to 920 mm high.  Available  Optional extra MONO FG1BX-UK-QSG-0200 | Rev. A23 (May 2023)

  • Page 9: Electrical Specifications

    (Contact factory) (Contact factory) 40cm x 60cm 40cm x 80cm 10-Tray 18” x 26” 18” x 30” 415 Vac (50 Hz), 3-phase + neutral + earth 32 Amps 40cm x 60cm 40cm x 80cm FG1BX-UK-QSG-0200 | Rev. A23 (May 2023) MONO...
  • Page 10 If the oven is damaged or malfunctioning, stop using it.  Do not attempt any repairs.  Contact the MONO Service Department for advice.  All connections to the oven must comply with the statuary requirements of the country of installation.

  • Page 11: Installation

    Always check the electrical requirements on the nameplate before connecting the power. Figure 2: Main power supply connections NOTE L2 and L3 are for three-phase installations only.  See the Specifications section for electrical specifications.  FG1BX-UK-QSG-0200 | Rev. A23 (May 2023) MONO...

  • Page 12: Before Use

    Allow a 50 mm gap at the sides and rear of this oven.  Chimneys and evacuation ducts fitted above mono ovens should be insulated. Before use In the interests of hygiene, we strongly recommend that, before using the oven for the first time, you wipe the inside of the oven and all accessories thoroughly with a clean cloth soaked in warm soapy water.
  • Page 13 It is the customers’ sole responsibility to arrange for adequate ventilation. Any component malfunctioning during the guarantee period found to have been subject to excessive humidity or ambient working temperature above 40 °C (115 °F) will not be covered by the component manufacturer guarantee or MONO’s product warranty. FG1BX-UK-QSG-0200 | Rev. A23 (May 2023)

  • Page 14: Electrical Supply

    (Figure Figure 3: View of rear connections on a MONO Eco Convection Oven  Turn the appropriate valve 90° anti-clockwise ( ) to turn off the water supply.

  • Page 15: Touchscreen Operations

    Create an oven on/off schedule for every day of the week. Manual Bake Baking using manual controls. Favourites Easy selection of most frequently used baking recipe programs. NOTE: The images are for illustration purposes and may differ from your oven. FG1BX-UK-QSG-0200 | Rev. A23 (May 2023) MONO...
  • Page 16 The oven goes through a boot-up sequence. Please wait. NOTE The images are for illustration purposes and may differ from your oven. When a start-screen (wallpaper) appears, touch the screen anywhere to display the main screen. MONO FG1BX-UK-QSG-0200 | Rev. A23 (May 2023)
  • Page 17 USB flash drive (if supported). Select a baking recipe (a) Touch the baking recipe required (e.g., blueberry muffins). (b) If prompted, select Full Load or Half Load depending on the oven loading. FG1BX-UK-QSG-0200 | Rev. A23 (May 2023) MONO...
  • Page 18 A baking screen now appears. (a) Wait while the oven heats up. A Heating message flashes on the screen. (b) Load the oven with products when Ready flashes on the screen. (c) Touch Start to begin baking. MONO FG1BX-UK-QSG-0200 | Rev. A23 (May 2023)
  • Page 19 Press the +2 mins to continue the bake for a further two minutes.  This time extension is adjustable in the Settings menu. Remove the trays and close the door to preserve the heat. FG1BX-UK-QSG-0200 | Rev. A23 (May 2023) MONO...
  • Page 20 When the time is 00:00, and the Start button is touched, the timer counts upwards until the bake is stopped. If the screen shows HEATING, wait until the oven is up to temperature before touching Start. MONO FG1BX-UK-QSG-0200 | Rev. A23 (May 2023)
  • Page 21 When the timer is counting down and reaches 00:00, a sounder is heard. A BAKE OVER message also flashes on the screen. Touch Stop to stop the sounder. The bake can be stopped at any time by touching Stop. FG1BX-UK-QSG-0200 | Rev. A23 (May 2023) MONO...

  • Page 22: Setting The Time And Date

    Enter the Oven Settings password, and then touch the OK () button. NOTE Default passwords for the various access levels are in the Installation and Operating Manual. However, for security reasons, the passwords section may have been removed. Touch the Time & Date box. MONO FG1BX-UK-QSG-0200 | Rev. A23 (May 2023)
  • Page 23 The day is not adjustable – it automatically updates using the date, month, and year. Touch Save () to confirm new settings. Touch the Home button to return to the main screen. NOTE See the Installation and Operating Manual for complete information about the main oven settings. FG1BX-UK-QSG-0200 | Rev. A23 (May 2023) MONO...
  • Page 24 Quick Start Guide Setting up a new program Touch the Programs tile. Choose the category or number group required. Touch the Info (i) button of the next free recipe slot. Touch the Options button. MONO FG1BX-UK-QSG-0200 | Rev. A23 (May 2023)
  • Page 25 Repeat steps (c) to (e) for each item needed in that baking phase. If required, select the next baking phase (i.e. touch 2) and adjust the items in the same way. Touch Save to confirm the completed recipe settings. FG1BX-UK-QSG-0200 | Rev. A23 (May 2023) MONO...
  • Page 26 Touch Save to confirm the tray layout. Add the new product recipe to the list. (a) Touch the Save as… box (b) Input a name for the product recipe, and then touch OK. Touch the Home button to finish. MONO FG1BX-UK-QSG-0200 | Rev. A23 (May 2023)
  • Page 27 Set a timer Touch a time-setting box. Adjust the bake time required using up and down keys. Touch the OK () button. Repeat steps (a) to (c) to set different bake time sequences, if required. FG1BX-UK-QSG-0200 | Rev. A23 (May 2023) MONO...
  • Page 28 (a) Touch a heat-setting box. (b) Type in temperature required. (c) Touch OK to confirm the temperature. Start the bake. (a) Load the oven. (b) Touch the Start button (next to the bake time required). MONO FG1BX-UK-QSG-0200 | Rev. A23 (May 2023)
  • Page 29 10. Touch the Stop button at any time to end a bake, and the same settings are useable again. NOTE The settings are reusable until the Cancel button is touched. Then, cancelling clears the settings for the next time the Multi-bake function is needed. FG1BX-UK-QSG-0200 | Rev. A23 (May 2023) MONO...
  • Page 30 Touch the day an oven operation is required (e.g., Tuesday). Set the On-time. (a) Touch the On tile of a time panel. (b) Set the time using the keys in the pop-up box that appears, and then touch Save (A). MONO FG1BX-UK-QSG-0200 | Rev. A23 (May 2023)
  • Page 31 (b) Set the time using the keys in the box that appears, and then touch Save (A). Touch Save (B) to confirm the 7-day timer settings. NOTE Remember to leave the oven in Standby mode for this 7-day timer function to work. FG1BX-UK-QSG-0200 | Rev. A23 (May 2023) MONO...
  • Page 32 The Standby button turns the oven off until the screen is touched again. Putting the oven into Sleep mode If enabled in the oven settings, the Sleep button instructs the oven to maintain temperature to a pre-set value. MONO FG1BX-UK-QSG-0200 | Rev. A23 (May 2023)

  • Page 33: Daily Cleaning Instructions

    Do not allow the oven cleaner to get onto the control panel. Use a nylon brush to scrub the cabinet wheels (if fitted) with a mild detergent and hot water. NOTE: Using too much water eventually rusts the metalwork. FG1BX-UK-QSG-0200 | Rev. A23 (May 2023) MONO...
  • Page 34 Figure 5: Location of the two screws for releasing the inner glass A. Undo the two screws to release the inner glass for cleaning. Figure 6: Inner glass panel moved away from the door MONO FG1BX-UK-QSG-0200 | Rev. A23 (May 2023)
  • Page 35 Quick Start Guide Eco Connect Convection Ovens | 4/5/7/10-Tray | Steam (Intentional Empty Page) FG1BX-UK-QSG-0200 | Rev. A23 (May 2023) MONO...
  • Page 36 If a fault arises, please do not hesitate to contact the Customer Service Department, quoting the machine serial number on the silver information plate of the machine and on the front cover of this manual Mono Equipment Limited Queensway Swansea West Industrial Estate Swansea, SA5 4EB, UK spares@monoequip.com...
