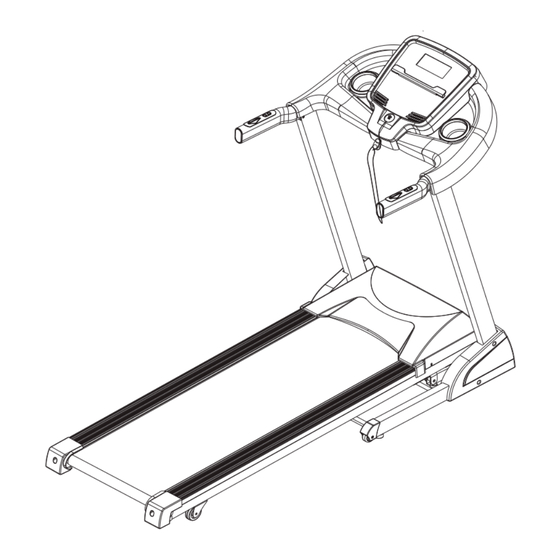

- Page 1 JTM1501 TREADMILL Model No: JTM1501 WARNING THE BELT COMES PRE-LUBRICATED NO LUBRICATION REQUIRED Retain this owner’s manual for future reference. Read and follow all instructions in this owner’s manual. Specs subject to change without notice.
- Page 2 CONTENT PAGE WARRANTY REGISTRATION FORM IMPORTANT SAFETY INSTRUCTIONS SAFETY GUIDELINES THE MAIN TECHNICAL PARAMETERS PRODUCT OVERVIEW ASSEMBLY INSTRUCTIONS FOLDING INSTRUCTIONS GROUNDING METHODS CONSOLE INSTRUCTIONS 12-16 GETTING STARTED GUIDE BELT ADJUSTMENT EXPLODED DIAGRAM PARTS LIST 20-21 ERROR CODE AND SIGNIFICANCE SAFETY EXERCISE EXERCISE INSTRUCTION 24-25...
- Page 3 Warranty Registration Form Congratulations on purchasing your product, we at GPI believe that our product range is of the highest quality and represents great value for money. We back our product range up with our industry leading warranty. Please see below for the step by step instructions on how to register your product warranty online.
- Page 4 IMPORTANT SAFETY INSTRUCTIONS Before beginning any fitness program, you should obtain a complete physical examination from your physician. This exercise equipment is designed and built for optimum safety for home use. However, certain precautions always apply whenever you operate any exercise equipment. Be sure to read the entire manual before assembly and operation of this machine.
- Page 5 SAFETY GUIDELINES Successful fitness training programs have one prominent feature in common...safety. Fitness training has some inherent dangers, as do all physical activities. The chance of injury can be greatly reduced or completely removed by using correct techniques, proper breathing, maintaining equipment in good working condition, and by wearing the appropriate clothing.
- Page 6 THE MAIN TECHNICAL PARAMETERS The main technical parameters Input supply voltage: 240V Working temperature: 0-40℃ Speed range: 0.8-14KM/H Incline range: 12 level motor incline Max. user weight: 110kg Distance display range: 0.00-99.9km Calories display range: 000-999 Time display range: 00：00-99：59 (min : sec) Heart rate range: 50-200 (time / min) Running surface: 420*1250mm Product size: 1660*710*1290mm...
- Page 7 ASSEMBLY INSTRUCTIONS WHEN YOU OPEN THE CARTON, YOU WI L L FIND THE BEL OW SPARE PARTS: Main frame 1 set D17 Inner star D13 Round hex C13 Safety key 1 set washer M8 8 pcs bolt M8* 15 4 pcs D3 Allen wrench B18 Silicon oil 1 pc D1 Screw driver 1 pc...
- Page 8 STEP 3: According to the picture, tighten the bottom frame with bolt M8*45 (D16), M8*15 (D13), and the inner star washer (D17). Then lock the console frame with M8*15 (D13) and inner star washer (D17). D 1 3 D 1 3 D 1 6 D 1 6 D 1 7...
- Page 9 Step 5: Put on the safety key (C13) on the console. Step 6: To check if the running belt runs correctly, placing treadmill in folding position and tightening all the bolts. Then set speed under 3km/h and see if running belt runs without problem. ATTENTION: Must confirm complete assembly as the required above and lock all bolts.
- Page 10 FOLDING INSTRUCTIONS FOLDING INSTRUCTION Lift up the machine and force to pull up until you heard "click" Lift up the machine and force that made by safety casing to pull up until you heard "click" stuck the pneumatic cylinder. that made by safety casing stuck the pneumatic cylinder.
- Page 11 GROUNDING METHODS This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
- Page 12 CONSOLE Operation Guide INSTRUCTIONS 1.1 WINDOW DISPLAY 1.2. START Normal start after 5 seconds countdown. 1.3. PROGRAM 1 manual mode, 12 pre-set programs, 1 body fat program, 3 countdown function and 3 users. 1.4. SAFETY LOCK FUNCTION The window shows"---" when take away the safety lock and the treadmill will stop quickly with "didi" alarm noise.
- Page 13 1.5.3 “MODE” BUTTON When the treadmill is not running, press this button to choose countdown modes: “H-1”,“H-2”,“H-3”; “H-1” is the time countdown mode, “H-2” is the distance countdown mode, and “H-3” is the calorie countdown mode; press the “SPEED+/-” or “INCLINE+/-“button to adjust the data. After that, press the “START”...
- Page 14 CALORIES: 0.0 – 999 (C) SPEED: 0.8-14.0 (km/h) PULSE: 50 – 200 (BPM) INCLINE: 0 - 12 1.7 PULSE FUNCTION When the treadmill is running, hold the hand pulse about 5 seconds, it will display pulse data. The pulse data range is 50-200 times/ minute.
- Page 15 1.9 MANUAL MODEL OPERATION 1.9.1 Press start key, time count down 5 seconds, then treadmill will start to work with initial speed 1km/h. 1.9.2 Press speed +/-, you can adjust the speed. 1.9.3 Press incline+/-, you can adjust the incline. 1.9.4 Press stop, you can stop treadmill working.
- Page 16 1.12 User Program Besides 12 pre-set programs, there have 3 user-defined programs: U1, U2 and U3 Each user program has 10 segments. The user can set the desired speed and incline .Press "PROGRAM" button to choose U1 ,U2 or U3,press "MODE" button to enter setting condition, then set the time of the first segment. Press “SPEED+” and “SPEED-”...
- Page 17 GETTING STARTED GUIDE Getting started guide PREPARE If you are around 35 years old, or have health problem, even this is your first time to do fitness exercise, please consult doctor or professional before use. Before you exercise, please stand on the side to learn how to operate, such as start, stop and speed adjustment. After that stand on the plastic deck of the treadmill board, catch hold of the handrail, start the treadmill at 1.6--3.2 km/h low speed, stand straight, look forward, try one foot on the belt and do it a few times, then stand on the belt to do exercise.
- Page 18 BELT ADJUSTMENT Place treadmill on a level surface. Make treadmill run at approximately 6-8 km/h, observe the running belt deviate condition. If the belt has drifted to the right, unplug the safety lock and power switch, and turn the right adjusting bolt 1/4 turn clockwise, then insert the power switch and safety lock, make the treadmill running, observe the running belt deviation condition.
- Page 19 EXPLODED DIAGRAM...
- Page 20 PARTS LIST Parts list A. Welding parts Description Description Base frame Incline frame Main frame Filter supporting frame Left upright Motor bracket Right upright Handrail bracket B. Plastic parts Description Description Console set Motor upper cover B1-1 Overlay Motor lower cover B1-2 Membrane key Side rail...
- Page 21 Motor belt Inductor Power switch Filter Controller Single cord (black) 300 Handle pulse left keyboard Photoelectric Sensor Handle pulse right keyboard Incline motor D. Hardware parts Description Description Screw driver 13-15-17 Spring washer M8 Allen wrench T5 Hex round head bolt M6*45 Round hex bolt M10*30 Hex round head bolt M6*60 Round hex bolt M10*45...
- Page 22 ERROR CODE & SIGNIFICANCE Error Code Fault Description Solutions 1. Check if computer is connected to controller with correct wires, Failure communication check connector, check if wire is damaged, or unplug and re- between controller and connect computer 2. Change inverter and test 3.
- Page 23 SAFETY EXERCISE Please consult professional staff before do exercise. He can help recommend exercise rate/ intensity and time according to your age and health condition. When running, if you feel chest tightness or chest pain, irregular Heartbeats, short of breath, dizziness or feel unwell, please stop immediately! And consult professional before you continue to do exercise.
- Page 24 EXERCISE INSTRUCTIONS Using your exerciser will provide you with several benefits, it will improve your physical fitness, tone muscle and in conjunction with a calorie controlled diet help you lose weight. 1. THE WARM UP PHASE This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury.
- Page 25 EXERCISE INSTRUCTIONS 3. THE COOL DOWN PHASE This stage is to let your Cardio Vascular System and muscles wind down. This is a repeat of the warm up exercise e.g. reduce your tempo, continue for approximately 5 minutes. The stretching exercises should now be repeated, again remembering not to force or jerk your muscles into the stretch.
- Page 26 JTM1501 TREADMILL Model No: JTM1501 www.gpisports.com.au DISTRIBUTED EXCLUSIVELY BY 275 Wellington Road Mulgrave, VIC, 3170 Australia...
