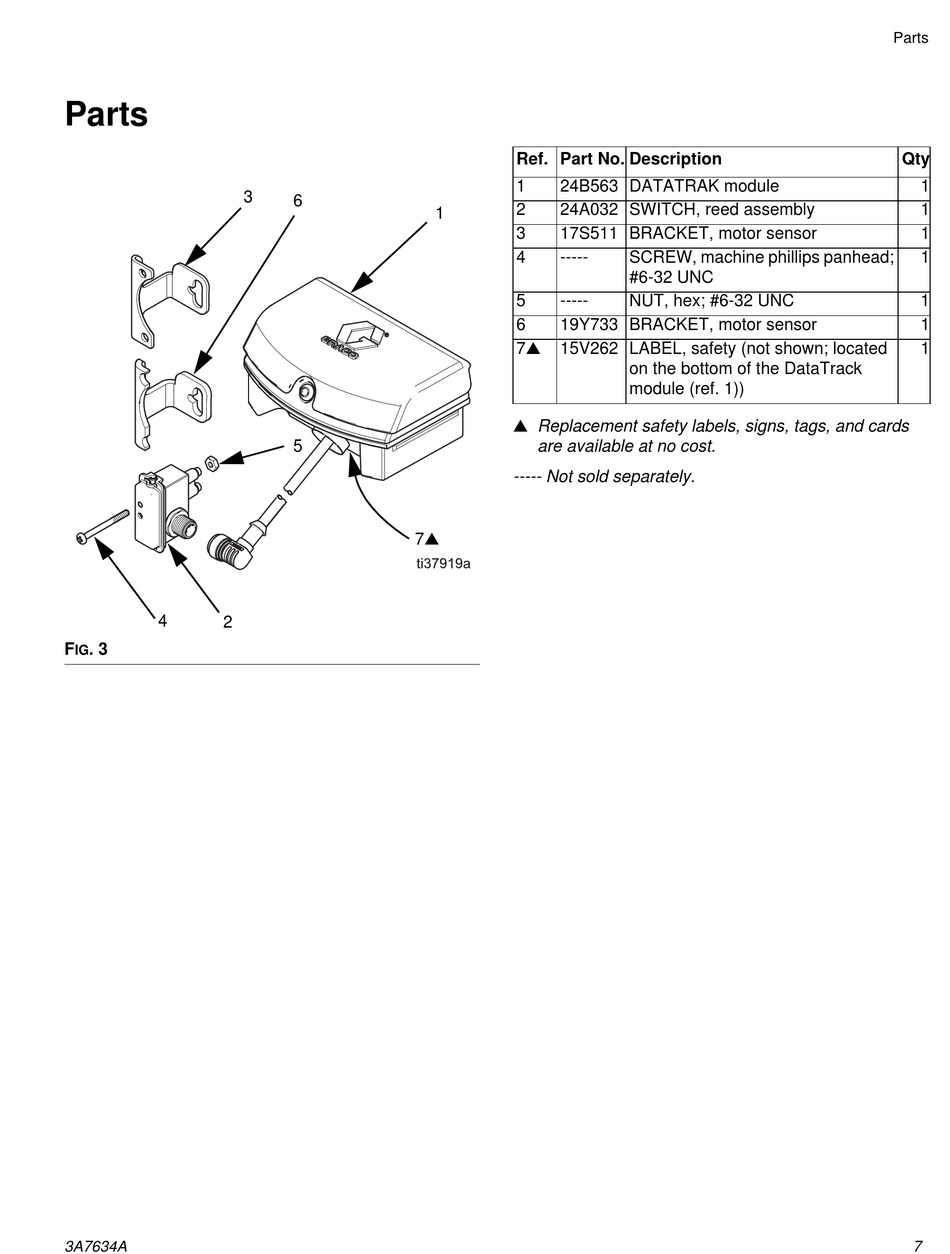

Parts

3
4 2
F . 3
IG
3A7634A
6
1
5
7
Ref. Part No. Description
1 24B563 DATATRAK module
2 24A032 SWITCH, reed assembly
3 17S511 BRACKET, motor sensor
4 ----- SCREW, machine phillips panhead;
#6-32 UNC
5 ----- NUT, hex; #6-32 UNC
6 19Y733 BRACKET, motor sensor
7 15V262 LABEL, safety (not shown; located
on the bottom of the DataTrack
module (ref. 1))
 Replacement safety labels, signs, tags, and cards
are available at no cost.
----- Not sold separately.
Parts
Qty
1
1
1
1
1
1
1
7
