Back / Rear Panel Connections

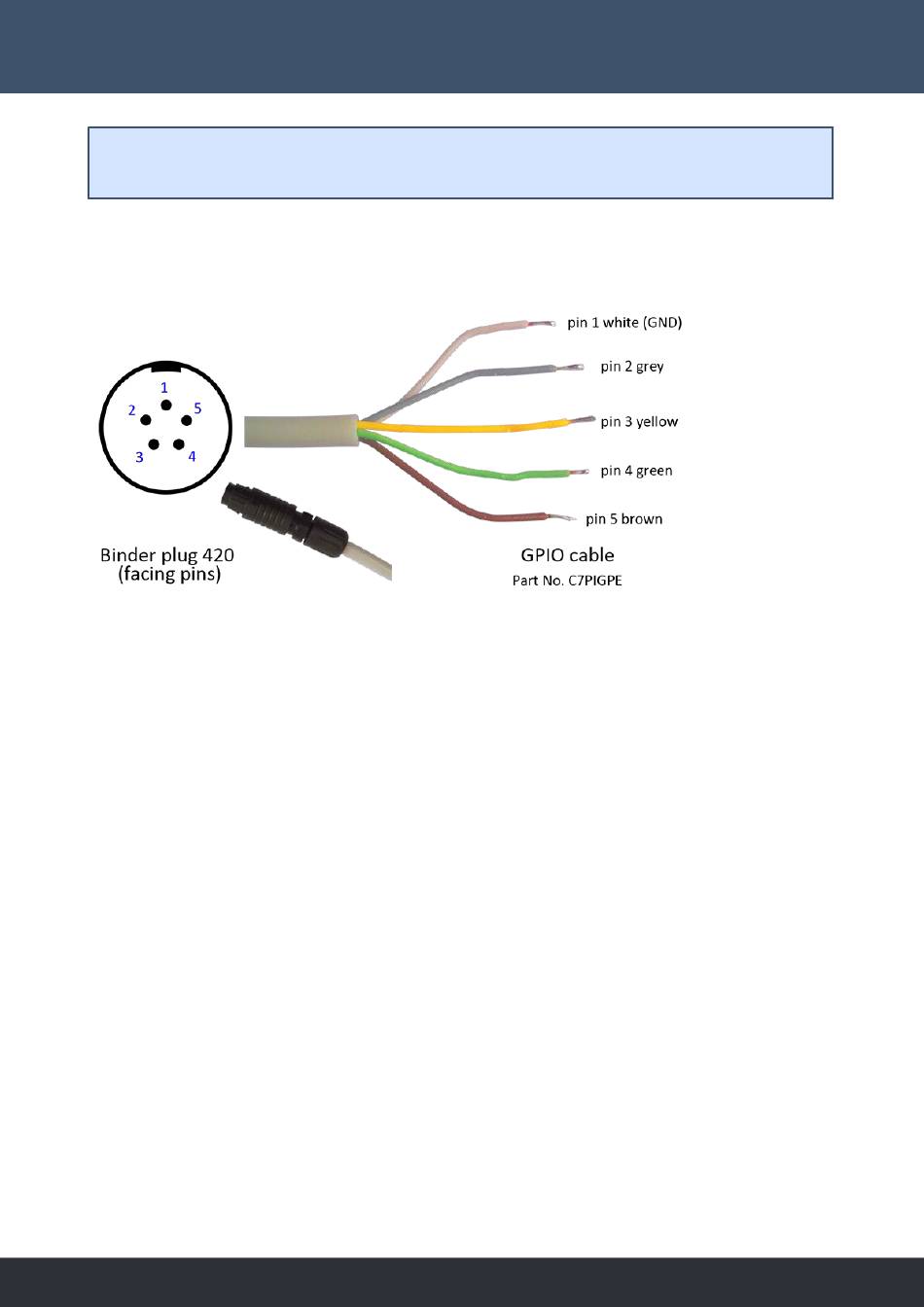

These have their GPIO wired as below, with 4 × I/O non-opto-isolated connections.
Take great care not to exceed 5.0 VDC and 100 mA.
The GPIO has a ground (GND) pin and 4 available I/O pins operating at 3.3 V. These are addressed via Delta
External Control commands (pin range 0-4). A 53 cm cable with appropriate Binder 420 series 5-contact push
pull plug is available from 7thSense (Part Number: C7PIGPE).
Hardware Operation
18
© 2020 7thSense Design
