Front Panel
Front Panel

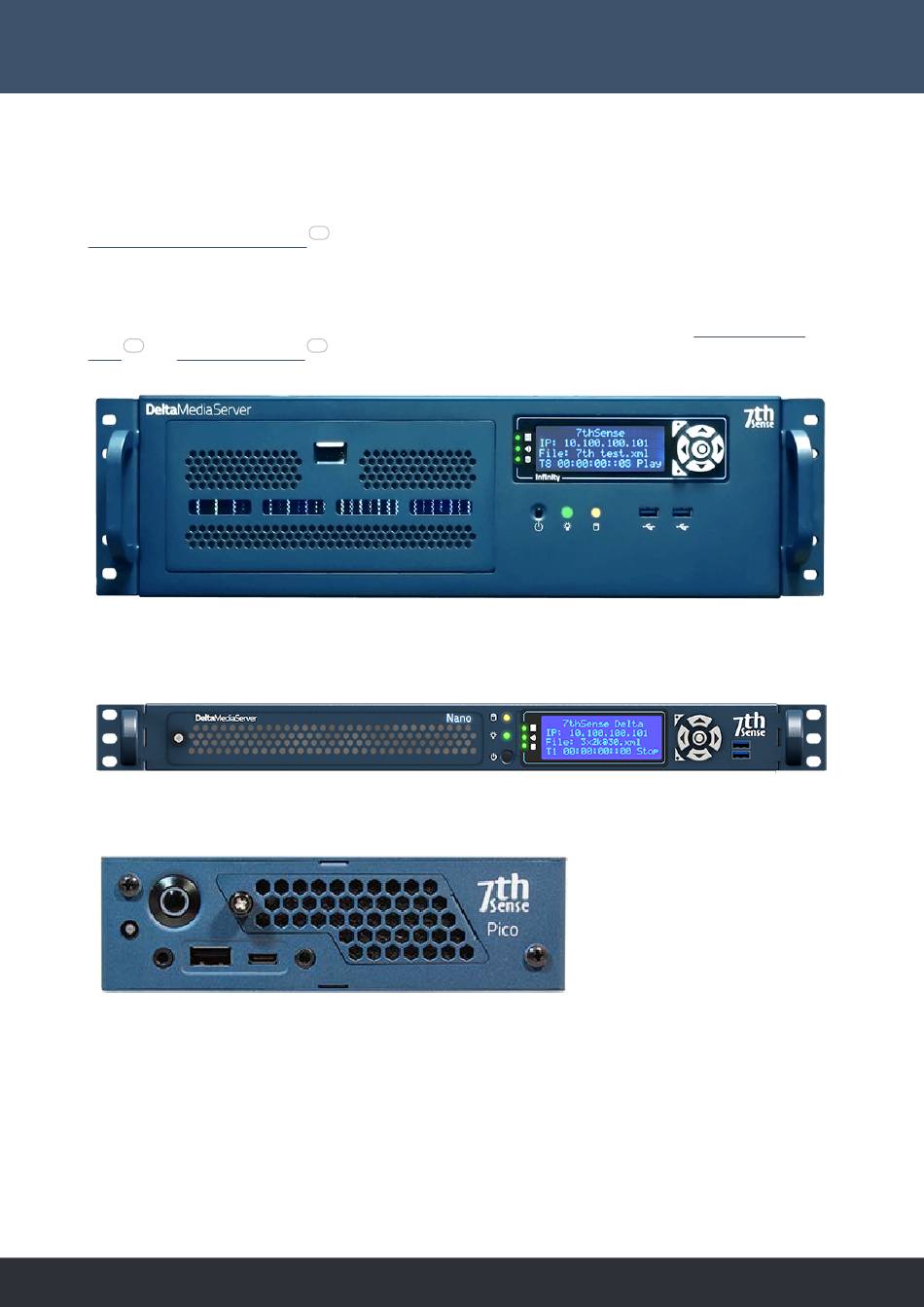

The front panel of all rack-width Delta Media Servers carries a display and Matrix Orbital control buttons (see
38
Front Panel Control and Display)
.
Below this you will find the on/off power switch, its green indicator light, and amber disk activity indicator.
Proton, Nucleus and Infinity servers also have 2 × USB3 sockets, and a flip-down door for
access to the air
filter
10
and
Media SSD Storage
25
caddy for servers using SSD media storage.
Nano servers also have 2 × USB3 sockets. Their air filter is accessed using the thumbscrew on the left, and
removing the filter panel:
Pico servers have two 3.5 mm audio, one USB 2.0 and one USB 3.1 Type-C port:
Hardware Operation
