Manual Max Power Series 225 HYD
Last Update: December 2016

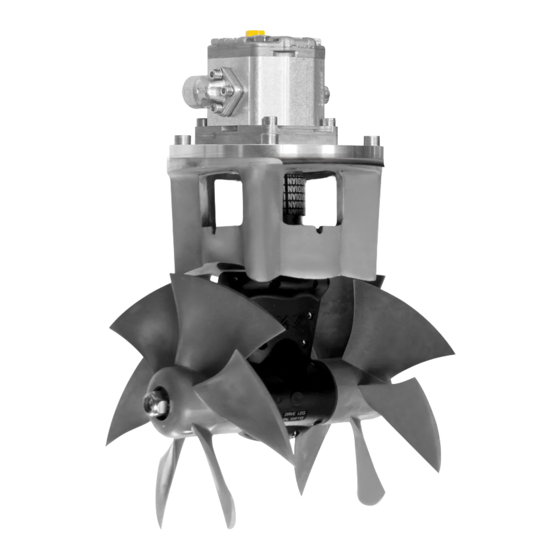

Hydraulic Tunnel Thruster
Series 225HYD
With Electronic Controller
INSTALLATION
OPERATION
MAINTENANCE
Serial N° : ----------------------------------------------------
Date of Installation : ----------------------------------------
THIS MANUAL MUST BE KEPT ON BOARD AT ALL TIMES
Via Philips 5, 20900 Monza (MI), Italy
Tel. +39 039 200 1973-936 - Fax +39 039 2004299
www.max-power.com
E-mail:contact@max-power.com
Advertisement
Table of Contents
Related Manuals for MAX power 225HYD Series
Summary of Contents for MAX power 225HYD Series
- Page 1 Manual Max Power Series 225 HYD Last Update: December 2016 Hydraulic Tunnel Thruster Series 225HYD With Electronic Controller INSTALLATION OPERATION MAINTENANCE Serial N° : ---------------------------------------------------- Date of Installation : ---------------------------------------- THIS MANUAL MUST BE KEPT ON BOARD AT ALL TIMES Via Philips 5, 20900 Monza (MI), Italy Tel.
-
Page 2: Table Of Contents
Manual Max Power Series 225 HYD Last Update: December 2016 To ensure a proper installation, correct usage and long-lasting enjoyment of this equipment, please take time to read this manual thoroughly. Table of Contents Number Description Page General Installation Guidelines Tunnel Propeller Drive Leg &... -
Page 3: Tunnel
Manual Max Power Series 225 HYD Last Update: December 2016 GENERAL INSTALLATION GUIDLINES The tunnel must be as low as possible and as far forward as possible. The propellers must not protrude beyond the hull line. The ideal position of the tunnel is such that there is at least the depth of one tunnel diameter from the water line to the top of the fitted tunnel. -
Page 4: Propeller Drive Leg & Motor Support
Manual Max Power Series 225 HYD Last Update: December 2016 In inaccessible areas (i.e. under the tunnel), it is possible to simply apply reinforced filler. CAUTION: Do not fibre glass the area of the motor support. It is recommended to lightly sand down the area where the motor support is fitted. -
Page 5: The Hydraulic Motor And Its Adapter
Manual Max Power Series 225 HYD Last Update: December 2016 THE HYDRAULIC MOTOR AND ITS ADAPTER Do not separate the motor from its adapter. Insert the lower metal coupling on the greased leg shaft. Fit the flexible coupling, then the motor and its adapter, tighten the screws (∅ 10mm) to a torque of 40 Nm. -
Page 6: Hydraulic Specifications
Manual Max Power Series 225 HYD Last Update: December 2016 The pump can be driven by either an internal combustion engine (crankshaft pulley or gearbox PTO) or an electric motor. Depending on the speed and choice of drive, but should always comply with the rated pressure/flow of the thruster. -
Page 7: Hydraulic Custom Pack
M10 = 5/8’’ M12 = 3/4’’ M16 = 1’’ INTAKE DIAMETERS of standard hydraulic elements MAX POWER. 1 / 2 / 11 = Female BSP 3/4'' 3 / 6 / 7 / 8 / 9 = Female BSP 1/2'', 4 / 5 = Female BSP 3/8''... -
Page 8: Maintenance
Manual Max Power Series 225 HYD Last Update: December 2016 MAINTENANCE In order to ensure peak performance from your SUPER POWER, the tunnel, the leg and the propellers must be kept clean. IMPORTANT: In order to prevent chalky deposits, which cause damage to the oil seals, we recommend cleaning the shaft and the oil seals first, then applying a layer of silicon oil before assembling the propellers. - Page 9 Manual Max Power Series 225 HYD Last Update: December 2016 Installation Notes...
- Page 10 Manual Max Power Series 225 HYD Last Update: December 2016...
- Page 11 Manual Max Power Series 225 HYD Last Update: December 2016 MAX POWER 225 HYD...
- Page 12 Manual Max Power Series 225 HYD Last Update: December 2016...
- Page 13 Manual Max Power Series 225 HYD Last Update: December 2016...
- Page 14 Manual Max Power Series 225 HYD Last Update: December 2016...
- Page 15 Manual Max Power Series 225 HYD Last Update: December 2016 Super Power Hydraulic: Positioning and Measurements Model Dim (mm) E Ideal E Mini Weight 9 Kg 12 Kg 20 Kg...
-
Page 16: Warranty Document (To Be Returned)
The purpose of this document is to set out the terms of warranty cover offered in relation to products purchased by the End User from Max Power or its approved network of resellers. This document will adhere to the following format: -... - Page 17 IF POSSIBLE: PLEASE TAKE PHOTOGRAPHS OF THE THRUSTER TO SHOW PROBLEM The warranty as outlined above is only applicable to Max Power manufactured thrusters and optional equipment as used in marine pleasure industry. The supplier holds the exclusive right to test the product and determine...
