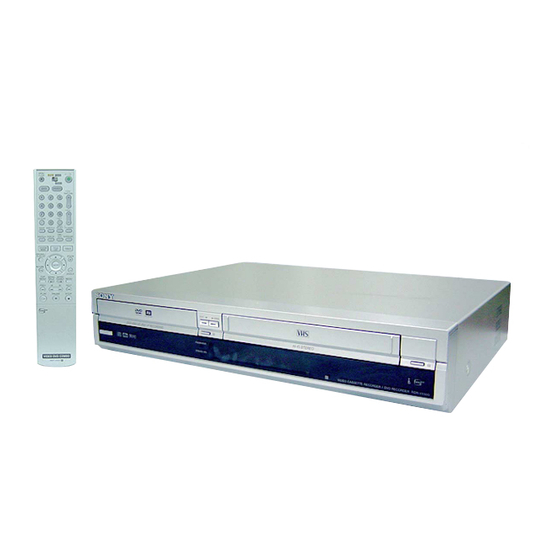

Sony RDR-VX500 Service Manual

Dvd recorder
Hide thumbs Also See for RDR-VX500:
Table of Contents

Advertisement

Quick Links

SERVICE MANUAL
System
DVD recorder section
Laser
Semiconductor laser
Audio recording format
Dolby Digital
Video recording format
MPEG Video
VCR section
Format
VHS NTSC standard
Video recording system
Ro
tary head helical scanning
FM system
Video heads
Double azimuth four heads
Video signal
NTSC color, EIA standards
Tape speed
3
SP: 33.35 mm/s (1
/
inches/s)
8
7
EP: 11.12 mm/s (
/
inches/s)
16
11
LP: 16.67 mm/s (
/
inches/s),
16
playback only
SPECIFICATIONS
Maximum recording/playback time
8 hrs. in EP mode (with T-160 tape)
Rewind time
Approx. 1 min (with T-120 tape)
Tuner section
Channel coverage
VHF 2 to 13
UHF 14 to 69
CATV A-8 to A-1, A to W, W+1 to
W+84
Antenna
75-ohm antenna terminal for VHF/UHF
Timer section
Clock
Quartz locked
Timer indication
12-hour cycle
Timer setting
12 programs in total (max.)
RDR-VX500
Mexican Model
Refer to the SERVICE MANUAL of VHS MECHANI-
CAL ADJUSTMENT MANUAL VII for MECHANICAL
ADJUSTMENTS. (9-921-790-11)
Inputs and outputs
LINE 1 IN and LINE 2 IN
VIDEO IN, phono jack (1 each)
Input signal: 1 Vp-p, 75 ohms,
unbalanced, sync negative
AUDIO IN, phono jacks (2 each)
Input level: 327 mVrms
Input impedance: more than 47 kilohms
LINE 2 IN
S VIDEO, 4-pin, mini-DIN jack
Y: 1.0 Vp-p, unbalanced, sync negative
C: 0.286 Vp-p, load impedance 75 ohms
DV IN, 4-pin jack, i.LINK S100
LINE OUT
VIDEO OUT, phono jack (1)
Output signal: 1 Vp-p, 75 ohms,
unbalanced, sync negative
AUDIO OUT, phono jacks (2)
Standard output: 327 mVrms
Load impedance: 47 kilohms
Output impedance: less than 10 kilohms
VIDEO CASSETTE RECORDER/
DVD RECORDER
RMT-V505
TS-10 MECHANISM
— Continued on next page —
