ELCOM BHT-200 Quick Start Manual page 2

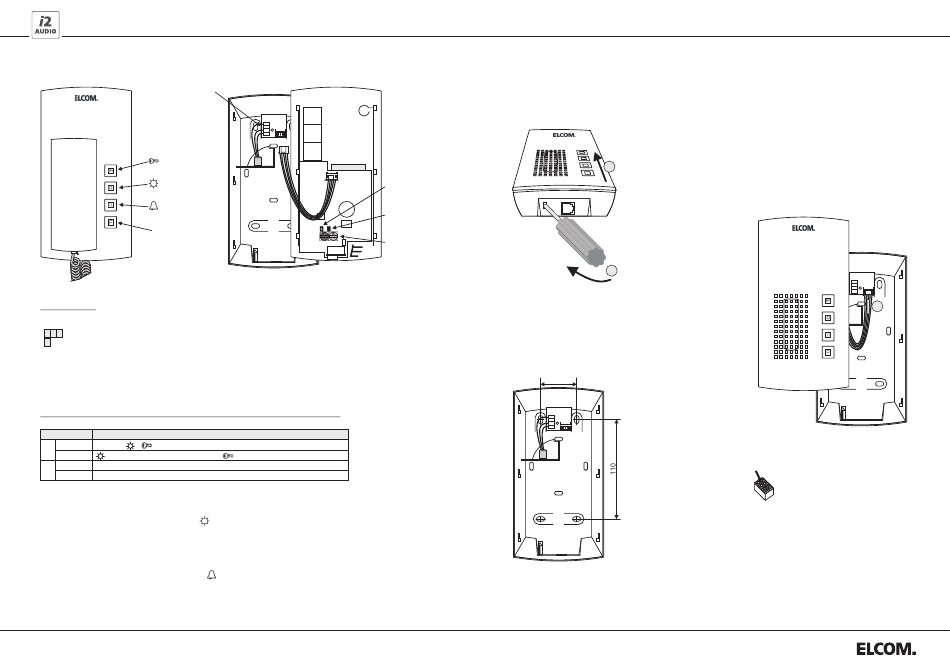

BHT-200 Intercom
Terminal clamps
Door release button
Light button
Mute button
P button
Description:
Terminal clamps
i2-BUS Terminals (both "a" connections connected internally)
a a b
Terminal to the storey call button (opposite pole to i2-BUS "a" or "b")
R
Rotary coding switch for adress configuration
Black: Group adresses 0-F (Setting of the corresponding BTE-116)
Blue: Intercom adress 0-F (Terminal of the corresponding doorbell button on BTE-116)
A maximum of 3 intercoms with the same adress can be installed (parallel operation)!
Jumper Function
Pushed In Buttons + light and door release function (Factory setting)
JP1
Pulled Out Button internal call to adress F/F
Pushed In No forwarding of storey calls (Factory setting)
JP2
Pulled Out Forwarding of storey calls to parallel adressed intercoms
Set the ring tone volume
Lift the handset and press and hold the button.
P
3 ring tone volumes can be selected with the button.
Set the ring tone
12 harmonic ring tones (6 of these are gong tones) are available which can be assigned to the different
door stations, the floor call or the internal call. The ring tone last used will always be preset.
Lift the handset and press and hold the button.
P
The desired ring tone can be selected with the button.
AN_BHT-200_EN_110509
R
a
a
b
Jumper JP1
Jumper JP2
Rotary coding switch
button internal call to adress F/E
Installation:
Detach the locking mechanism with a screwdriver
and slide the lid of the housing upwards
2
1
Mount the base of the housing
and connect up the supply line.
40
R
a
a
b
Connecting the conductor:
plug in the conductor.
(Solid conductor diameter
0.4-0.8mm)
Detaching the wire:
Actuate the orange trigger.
Pull the wire out.
Technical additions and printing errors do not constitute grounds for any claims to damages.
Hotline: hotline@elcom.de
Art.Nr.: 0221101
Remove the connection cable
in the lower part of the housing.
R
a
a
b
3
Simply
