AMX Modero X Series Installation Manual

Overview
The MXA-HST Modero X Series Bluetooth Handset (FG5968-17) is an optional
accessory for use with the Modero X series of touch panels. The handset allows
wireless Bluetooth audio communication via the touch panel, while the handset's
Charging Cradle allows recharging either via a USB connection to the touch panel or
via the included electrical adapter.
Indicator Light
Back

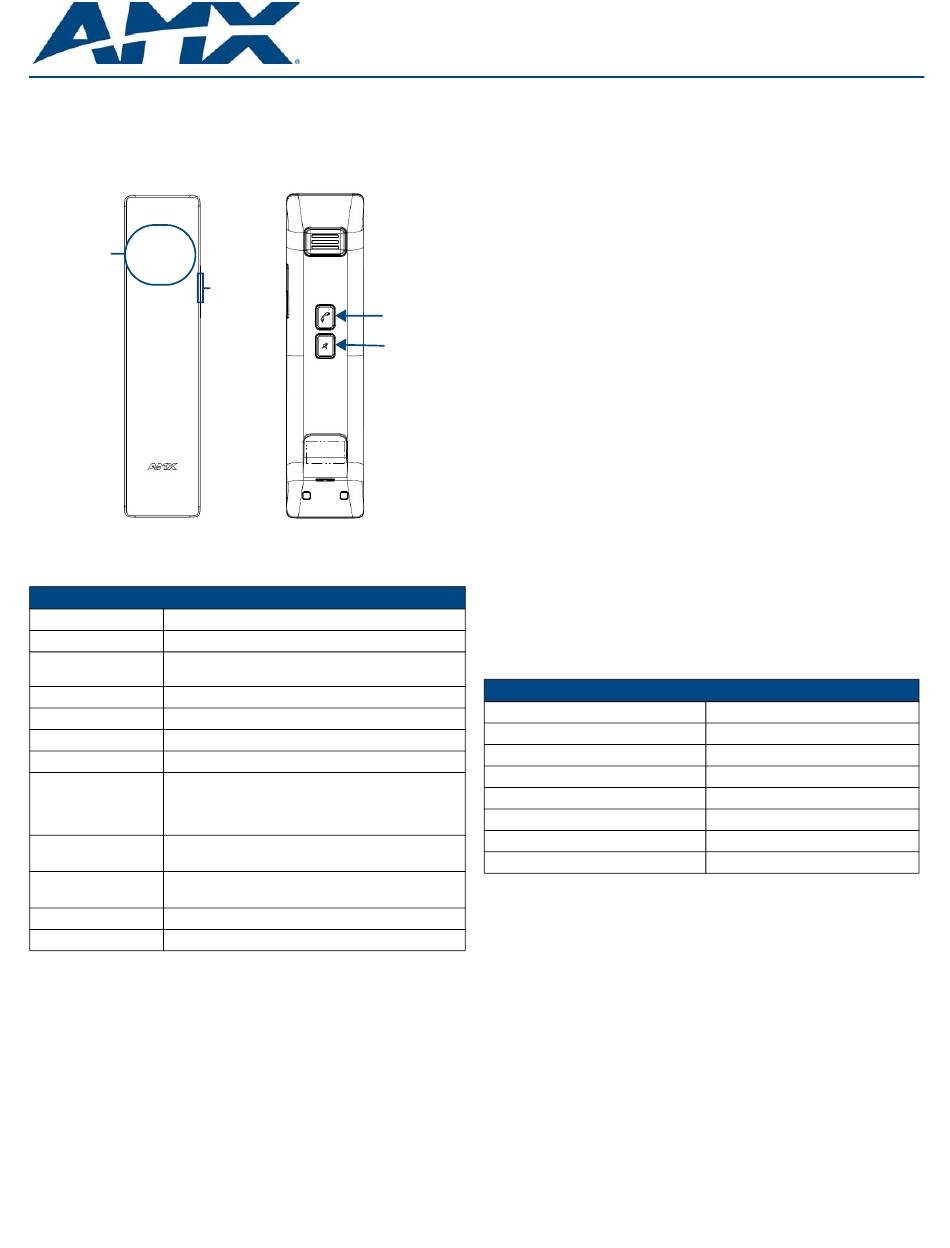

FIG. 1 MXA-HST Handset
Product Specifications
MXA-HST Specifications
Power Requirements: TBD
Bluetooth Specification: V2.1+EDR Class 2
Bluetooth ProRes Headset Handsfree, A2DP and AVRCP
Supported:
Range of Frequency: 2.4GHz Spectrum
Nominal Charging Time: Within 3 hours
Talk Time: Up to 5 hours
Standby Time: Up to 130 hours
Dimensions (HWD): • Handset: 6.88" x 1.62" x .77" (17.46 cm x 4.12 cm x
1.95 cm)
• Charging Station: 1.93" x 3.64" 3.01" (5.06 cm x 9.25
cm x 7.65 cm)
Weight: • Handset: 0.2 lbs (90.72 g)
• Charging Cradle: 0.2 lbs (90.72 g)
Certifications: • CE
• FCC part 15 Class A
Included Accessories: • Power plug, US (FGXXXX)
Other AMX Equipment: • International power plug adapters, 3-pack (FGXXXX)
Safety and Battery Charging Information
Safety Information
• Do not dismantle, open, or shred the battery.
• Do not short-circuit the battery. Do not store batteries haphazardly in a box or
drawer where they may short-circuit each other or be short-circuited by conduc-
tive materials.
• Do not remove a battery from its original packaging until required for use.
• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.
• Do not subject the batteries to mechanical shock.
• In the event of a cell leaking, do not allow the liquid to come in contact with the
skin or eyes. If contact has been made, wash the affected area with copious
amounts of water and seek medical advice.
• Equipment should be designed to prohibit the incorrect insertion of the battery
and its connector.
• Store the batteries in a dry place with the temperature between 32° F (0° C) and
104° F (40° C).
Volume
Up/Volume
Down
Buttons
Multi-Function
Mute Button
Front
MXA-HST
• Do not maintain the battery on charge when not in use.
• Secondary batteries give their best performance when they are operated at
normal room temperature: 68° F +/- 5° (20° +/- 5° C).
CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of
used batteries according to the instructions.
Charging
• Use only with approved charger.
• Charge with a constant-voltage, constant-current battery charger circuit with the
following parameters:
Maximum charge voltage 4.20 +/- 0.025 VDC
Maximum charge current: 640 mA
Charge temperature range: 32° to 104° F (0° C to 40° C)
Disposal
• When disposing of batteries, keep cells or batteries of different electrochemical
systems separate from each other.
Button
• Recycle or dispose of this battery in accordance with local regulations
FCC Notice
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Indicator Light Status
The indicator light on the back of the MXA-HST (FIG. 1) flashes and changes color
based on the handset's current status.
Indicator Light
Handset Status
Standby
Charging (OFF MODE)
Fully Charged (OFF MODE)
Mute
Low Battery
Out of Charge
Out of Range
Getting Started
o use your MXA-HST Bluetooth handset:
T
1. Ensure that your handset is fully charged.
2. Pair your charged handset with a Modero X Series touch panel. For more
information, please refer to the
Touch Panel section on page 2
Installation Guide
Series Bluetooth Handset
Modero X®
Indicator Light
Flash white
Solid blue
Solid white
Solid red
Flash red with beep every minute
Indicator light turns off
Solid blue for 5 seconds
Pairing the MXA-HST with a Modero X Series
below.
.
