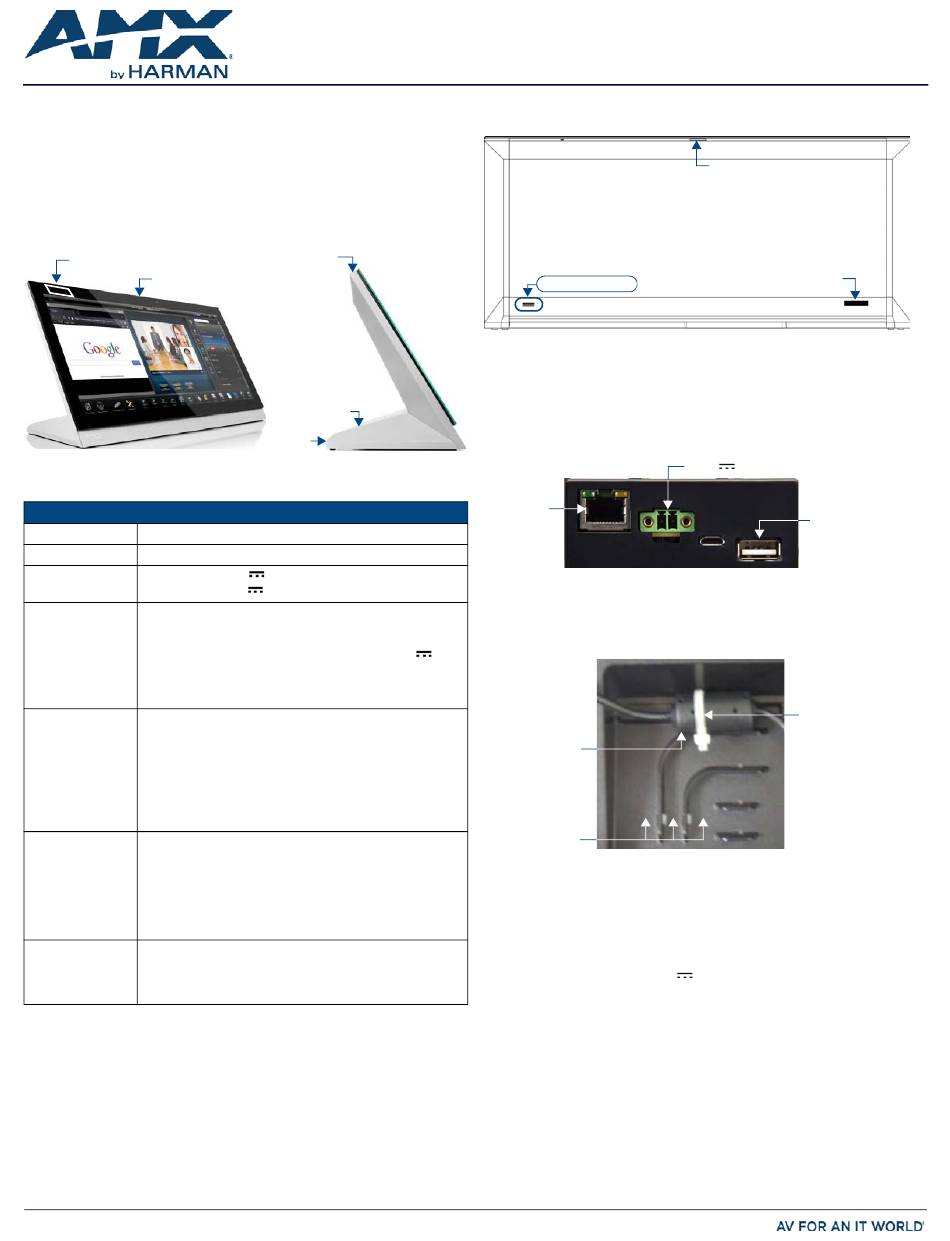

Overview

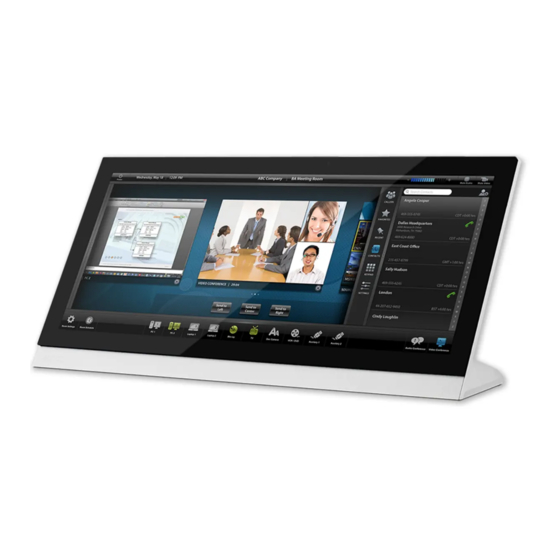

The MXT-2000XL-PAN 20.3" Modero X Series
(FG5968-01) features a beautiful, panoramic capacitive multi-touch screen that
provides users access to multiple applications with minimal navigation. It is
hardware-ready for support of Near Field Communication™ (NFC) Technology to
allow personalization of the user experience and productivity enhancing
capabilities through integration with NFC capable personal devices.
The distinctive, low-profile design is engineered to sit perfectly on a table without
obstructing views.
NFC Sensor
Sleep Button
MXT-2000XL-PAN
FIG. 1
Product Specif ications
MXT-2000XL-PAN SPECIF ICATIONS
Dimensions (HWD) 9 3/16" x 20 3/8" x 5 7/8" (235mm x 519mm x 150mm)
Weight 12.3 lbs (5.58 Kg)
Power Consumption Full-On: 35 W (13.5V
Standby: 7 W (13.5V
External Power Requires one of these AMX power sources (not included):
Supply Required
• PSR4.4 Power Supply, 4.5A, 3.5 mm Phoenix with Retention
Screws (FG423-46)
• PSN4.4 Power Supply, 4.5A, 3.5 mm Phoenix, 13.5V
(discontinued) (FG423-45)
• MXA-MPL Modero X/S Series Multi Preview Live (FG5968-10)
• MXA-MP Modero X/S Series Multi Preview (FG5968-20)
Certifications • FCC Part 15 Class B
• C-Tick CISPR 22 Class B
• CE EN 55022 Class B and EN 55024
• CB Scheme IEC 60950-1
• IC
• IEC/EN-60950
• UL 60950-1
• RoHS/WEEE compliant
Environmental • Temperature (Operating): 32°F to 104°F (0°C to 40°C)
• Temperature (Storage): 4°F to 140°F (-20°C to 60°C)
• Humidity (Operating): 20% to 85% RH
• Humidity (Storage): 5% to 85% RH
• Power ("Heat") Dissipation:
On: 119.4 BTU/hr
Standby: 23.9 BTU/hr
Included • Locking 2-pin Phoenix mate (41-0002-SA)
Accessories
• MXA-USB-C, USB Port Cover Kit (FG5968-18)
• HPG-10-10K, 3/4" Mini-Grommet (FG570-01)
• MXA-CLK, Modero X/S Series Cleaning Kit (FG5968-16)
MXT-2000XL-PAN
®
Panoramic Tabletop Touch Panel
Sleep Button
USB Ports (2)
Cable Slot
, 2.6A)
, 0.52A)
®
20.3" Modero X Series Panoramic Tabletop Touch Panel
Connector Locations
Two Type A USB ports are located on the rear right corner of the device (FIG. 2).
Type A USB Ports
MXT-2000XL-REAR VIEW
FIG. 2
USB peripherals (mouse, keyboard, etc.) may be connected to either of the two
USB ports on the rear of the device.
The power and Ethernet connectors, as well as an additional USB port are located
on the bottom of the device ( FIG. 3).
The underside USB port, as well as the two rear USB ports, may be used with a
flash drive for page transfers or firmware upgrades.
Ethernet
10/100 Port
MXT-2000XL-PAN UNDERSIDE CONNECTORS
FIG. 3
The MXT-2000XL-PAN does not have individual channels on the base of the
device to allow passage of cables from underneath the base. Instead, it has one
slot at the base to allow options on cable configuration, with channels for
securing power and Ethernet cables (FIG. 4).
Ferrite
Tie-wrap channels
TIE-WRAP FOR POWER CONNECTOR FERRITE
FIG. 4
Each channel side has slots for attaching tie-wraps to secure each cable. The
ferrite on the power cable must be secured with the included tie-wrap during
installation to prevent the possibility of the panel not sitting flush on the table.
Other cables may be secured with tie-wraps if desired, but this is not necessary.
Wiring Guidelines
The MXT-2000XL-PAN uses a 13.5V
to the panel via the 2-pin 3.5 mm captive wire PWR connector.
The incoming PWR and GND wires from the power supply must be connected to
the corresponding locations within the PWR connector.
Note: Apply power to the panel only after installation is complete.
Note: Connecting power to the MXT-2000XL-PAN should be done using the
included 2-pin 3.5mm captive wire connector included with the device. This
connector is retained within its port with locking screws instead of the pins on each
side of standard captive wire connectors, and using force to insert a standard
captive wire connector may damage the device.
QUICK START GUIDE
Sleep button
Speaker
13.5V Power Port
Type A USB Port
Tie-wrap
-compliant power supply to provide power
