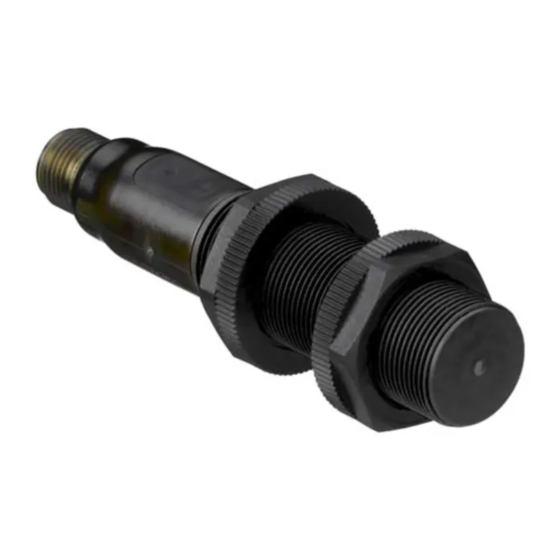

- Page 1 LCS-1 Teachable capacitive sensors with IO-Link Operating instructions...
- Page 2 © 2017 Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen / Germany Phone: +49 7021 573-0 Fax: +49 7021 573-199 http://www.leuze.com info@leuze.de Leuze electronic LCS-1...
-
Page 3: Table Of Contents
Operation in IO-Link mode – LED indicators ......................14 Confi guration ........................ 15 Confi guration via manual bridging ..........................15 Confi guration via buttons ..............................16 Confi guration via IO-Link ...............................17 9.3.1 IO-Link parameters ................................17 Application example: Confi guring sensor for poorly detectable media ............17 Leuze electronic LCS-1... - Page 4 Eliminating faults ......................18 Maintenance ......................... 18 Repair ..........................18 Decommissioning ......................18 Disposing ........................18 Technical data ....................... 19 Leuze electronic LCS-1...
-
Page 5: About These Instructions
➤ PROMPT FOR ACTION This symbol indicates action steps which the user must carry out. ➥ RESULT OF ACTION This symbol indicates relevant results of actions and sequences of actions. Leuze electronic LCS-1... -
Page 6: Other Documents
In addition to these instructions, you will also find the following documents on the Internet at www.leuze.com: • Data sheet of the respective device • IODD file All necessary Leuze software components and the IODD can be downloaded at www.leuze.com. The software is available under Contact & Support - Downloads - Software. Leuze electronic LCS-1... -
Page 7: Information On Product
You can download the EU Declaration of Conformity at www.leuze.com. Manufacturer and maintenance Leuze electronic provides you with support for your projects – from initial analysis to commissioning of your application. In the Leuze electronic product database, you will find data sheets and CAD files. -
Page 8: For Your Safety
The product has been designed according to the state of the art. There are, however, residual hazards. To avoid injury and damage, you must observe the safety and warning notices. Leuze electronic shall not accept liability for damage which was the result of failure to observe safety and warn- ing notices. -
Page 9: Product Description
Dimensioned drawing LCS-1M18P-F05PNP-M12-LT and LCS-1M18P-F05NNP-M12-LT (with teach button) M12 1 Abb. 2: Dimensioned drawing LCS-1M30P-F10PNP-M12-LT and LCS-1M30P-F10NNP-M12-LT (with teach button) 4.1.1 Display elements The capacitive sensors have a 2-color LED indicator (green/yellow). 4.1.2 Operational controls This sensor version has an integrated teach button. Leuze electronic LCS-1... -
Page 10: Characteristics And Features
4.4.5 Internal voltage and temperature monitoring The device has internal voltage and temperature monitoring. The monitoring functions allow assessment of the load on the sensor and of the sensor's failure probability. Leuze electronic LCS-1... -
Page 11: Technical Accessories
Product description Technical accessories Suitable accessories can be purchased on the Leuze home page: • Selection of suitable connection cables • Various mounting systems • USB IO-Link master 2.0 (Part no. 50121098). Leuze electronic LCS-1... -
Page 12: Mounting
Minimum mounting distances If more than one sensor is used in the application: Avoid overlapping of the electrical fields. Overlapping ➤ can occur if two sensors are mounted closer than 36 mm (LCS-1M18P-...-LT) or 60 mm (LCS-1M30P-...-LT) to each other. Leuze electronic LCS-1... -
Page 13: Connection
IO-Link output or switching output IO-Link Pin 5 Teach-in 5 teach 5 GY 4 BK Starting up the device When the cables have been connected, the device starts to operate as soon as the supply voltage is applied. Leuze electronic LCS-1... -
Page 14: Operating
Green flashes rapidly for approx. 1 s Teach event failed Operation in IO-Link mode – LED indicators When the device is operating in IO-Link mode, the LEDs have the following output function: LED indicator Meaning Green, steady light with short IO-Link mode started interruptions Leuze electronic LCS-1... -
Page 15: Confi Guration
If the LED goes out for approx. 0.5 s and the sensor changes to normal operation, the teach event has ➥ been completed successfully. If the green LED flashes rapidly for approx. 1 s, the teach event has failed and must be repeated. ➥ Leuze electronic LCS-1... -
Page 16: Confi Guration Via Buttons
If the green LED flashes rapidly for approx. 1 s, the teach event has failed and must be repeated. ➥ Setting switching point between "Medium present" and "Medium not present" Resetting the sensor to factory setting. ➤ Perform "Medium present" teach. ➤ Leuze electronic LCS-1... -
Page 17: Confi Guration Via Io-Link
The switching point is midway between the capacitances measured for the teach events "Medium pres- ➥ ent" and "Medium not present". NOTE The teach events "Medium present" and "Medium not present" can be performed in any order and with any time interval. Leuze electronic LCS-1... - Page 18 The device is not designed to allow repair by the user. If the device is defective, take it out of operation and return it to Leuze electronic. Here it is important to observe the specific warranty conditions agreed upon with delivery of the product.
- Page 19 Technical data Technical data The technical data can be found in the data sheet. The data sheet can be downloaded at www.leuze.com. Leuze electronic LCS-1...
