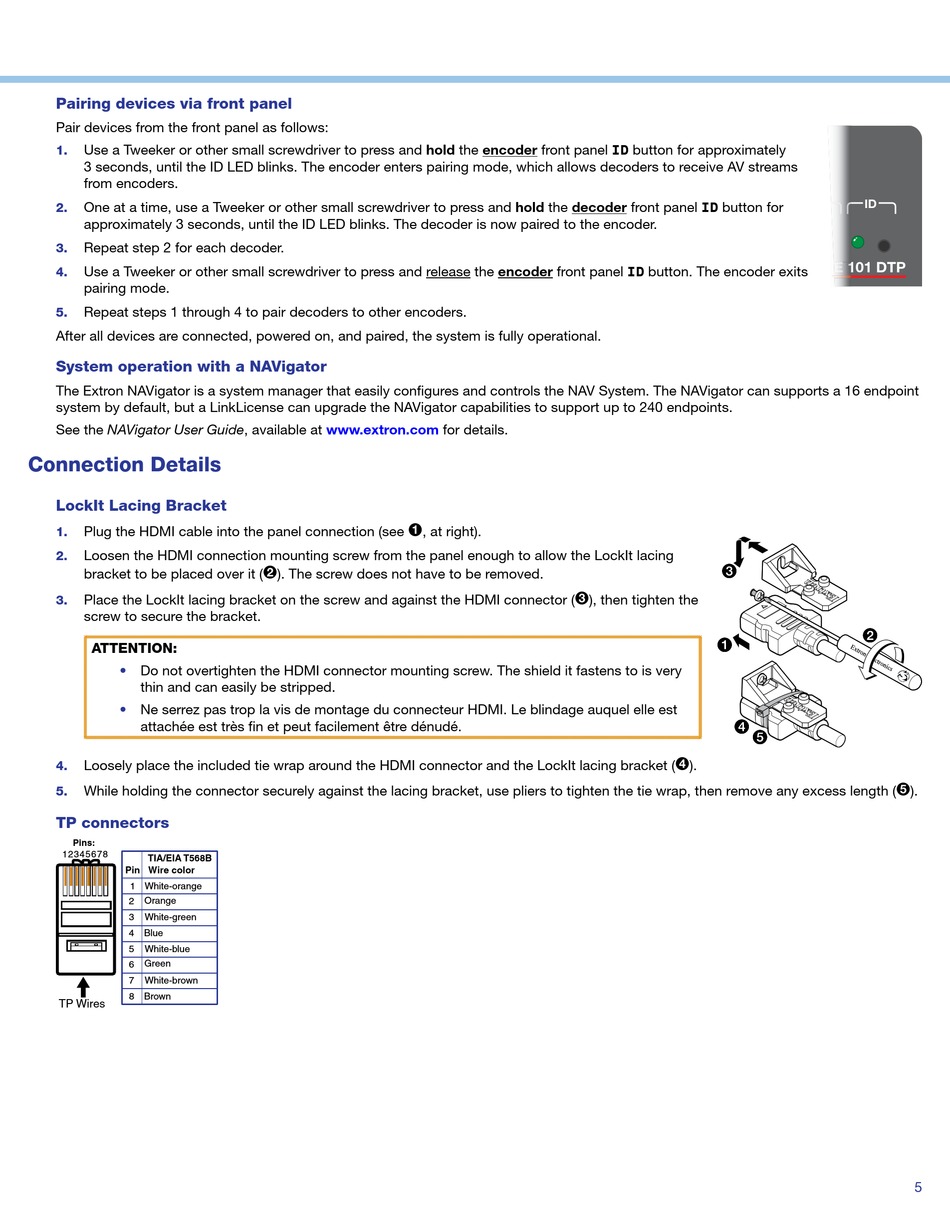

Pairing devices via front panel

Pair devices from the front panel as follows:
Use a Tweeker or other small screwdriver to press and hold the encoder front panel ID button for approximately
1.
3 seconds, until the ID LED blinks. The encoder enters pairing mode, which allows decoders to receive AV streams
from encoders.
One at a time, use a Tweeker or other small screwdriver to press and hold the decoder front panel ID button for
2.
approximately 3 seconds, until the ID LED blinks. The decoder is now paired to the encoder.
Repeat step 2 for each decoder.
3.
Use a Tweeker or other small screwdriver to press and release the encoder front panel ID button. The encoder exits
4.
pairing mode.
Repeat steps 1 through 4 to pair decoders to other encoders.
5.
After all devices are connected, powered on, and paired, the system is fully operational.

System operation with a NAVigator

The Extron NAVigator is a system manager that easily configures and controls the NAV System. The NAVigator can supports a 16 endpoint
system by default, but a LinkLicense can upgrade the NAVigator capabilities to support up to 240 endpoints.
See the NAVigator User Guide, available at

Connection Details

LockIt Lacing Bracket
Plug the HDMI cable into the panel connection (see
1.
Loosen the HDMI connection mounting screw from the panel enough to allow the LockIt lacing
2.
bracket to be placed over it (
Place the LockIt lacing bracket on the screw and against the HDMI connector (
3.
screw to secure the bracket.
ATTENTION:
• Do not overtighten the HDMI connector mounting screw. The shield it fastens to is very
thin and can easily be stripped.
• Ne serrez pas trop la vis de montage du connecteur HDMI. Le blindage auquel elle est
attachée est très fin et peut facilement être dénudé.
Loosely place the included tie wrap around the HDMI connector and the LockIt lacing bracket (
4.
While holding the connector securely against the lacing bracket, use pliers to tighten the tie wrap, then remove any excess length (
5.

TP connectors

Pins:
12345678
TIA/EIA T568B
Pin Wire color
1 White-orange
Orange
2
3 White-green
4 Blue
5 White-blue
Green
6
7 White-brown
8 Brown
TP Wires
