NAV E 101 DTP • Setup Guide (Continued)
Step 3 — Front Panel Configuration Port Connection
B B B A A A
CONFIG

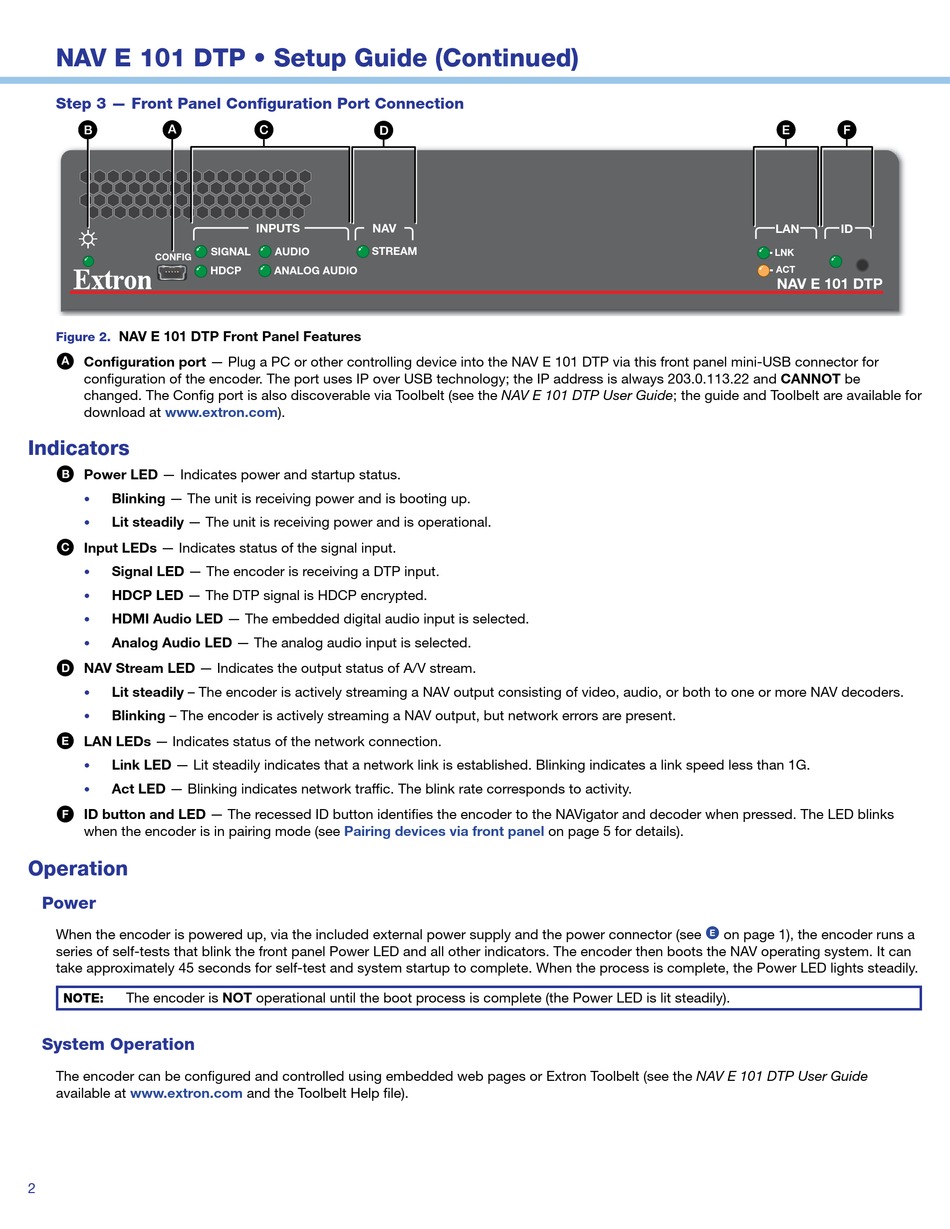

NAV E 101 DTP Front Panel Features
Figure 2.
A Configuration port — Plug a PC or other controlling device into the NAV E 101 DTP via this front panel mini-USB connector for
configuration of the encoder. The port uses IP over USB technology; the IP address is always 203.0.113.22 and CANNOT be
changed. The Config port is also discoverable via Toolbelt (see the NAV E 101 DTP User Guide; the guide and Toolbelt are available for
download at www.extron.com).

Indicators

B
Power LED — Indicates power and startup status.
Blinking — The unit is receiving power and is booting up.
•
Lit steadily — The unit is receiving power and is operational.
•
C Input LEDs — Indicates status of the signal input.
Signal LED — The encoder is receiving a DTP input.
•
HDCP LED — The DTP signal is HDCP encrypted.
•
HDMI Audio LED — The embedded digital audio input is selected.
•
Analog Audio LED — The analog audio input is selected.
•
D NAV Stream LED — Indicates the output status of A/V stream.
Lit steadily – The encoder is actively streaming a NAV output consisting of video, audio, or both to one or more NAV decoders.
•
Blinking – The encoder is actively streaming a NAV output, but network errors are present.
•
E LAN LEDs — Indicates status of the network connection.
Link LED — Lit steadily indicates that a network link is established. Blinking indicates a link speed less than 1G.
•
Act LED — Blinking indicates network traffic. The blink rate corresponds to activity.
•
F
ID button and LED — The recessed ID button identifies the encoder to the NAVigator and decoder when pressed. The LED blinks
when the encoder is in pairing mode (see

Operation

Power
When the encoder is powered up, via the included external power supply and the power connector (see
series of self-tests that blink the front panel Power LED and all other indicators. The encoder then boots the NAV operating system. It can
take approximately 45 seconds for self-test and system startup to complete. When the process is complete, the Power LED lights steadily.
The encoder is NOT operational until the boot process is complete (the Power LED is lit steadily).
NOTE:

System Operation

The encoder can be configured and controlled using embedded web pages or Extron Toolbelt (see the NAV E 101 DTP User Guide
available at www.extron.com
2
C C C
D D D
INPUTS NAV
STREAM
SIGNAL AUDIO
HDCP ANALOG AUDIO
Pairing devices via front panel
and the Toolbelt Help file).
on page 5 for details).
E on page 1), the encoder runs a
E E E F F F
LAN ID
LNK
ACT
NAV E 101 DTP
