NAV E 101 DTP • Setup Guide (Continued)
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Home Page
Figure 5.
Detailed descriptions of communication, configuration, and monitoring are provided in the NAV E 101 DTP User Guide,
NOTE:
available at www.extron.com.

Connection settings

View and change connection settings as follows:
On the home page, click Settings (see figure 5,
1.
Connection ( ). The Network Connection pane opens (see figure 6),
2
showing protected views of the network connection settings.
Editing of connection settings is disabled when the device is
NOTE:
assigned to an Extron NAVigator System Manager.
To change the settings, click Edit (see figure 6,
2.
changes to Save.
Click in the desired field (
3.
Repeat step 3 as necessary for other values.
4.
Click Save.
5.
4
2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
1 ) and then Network
1 ). The Edit button
) and edit it as desired.
2
2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

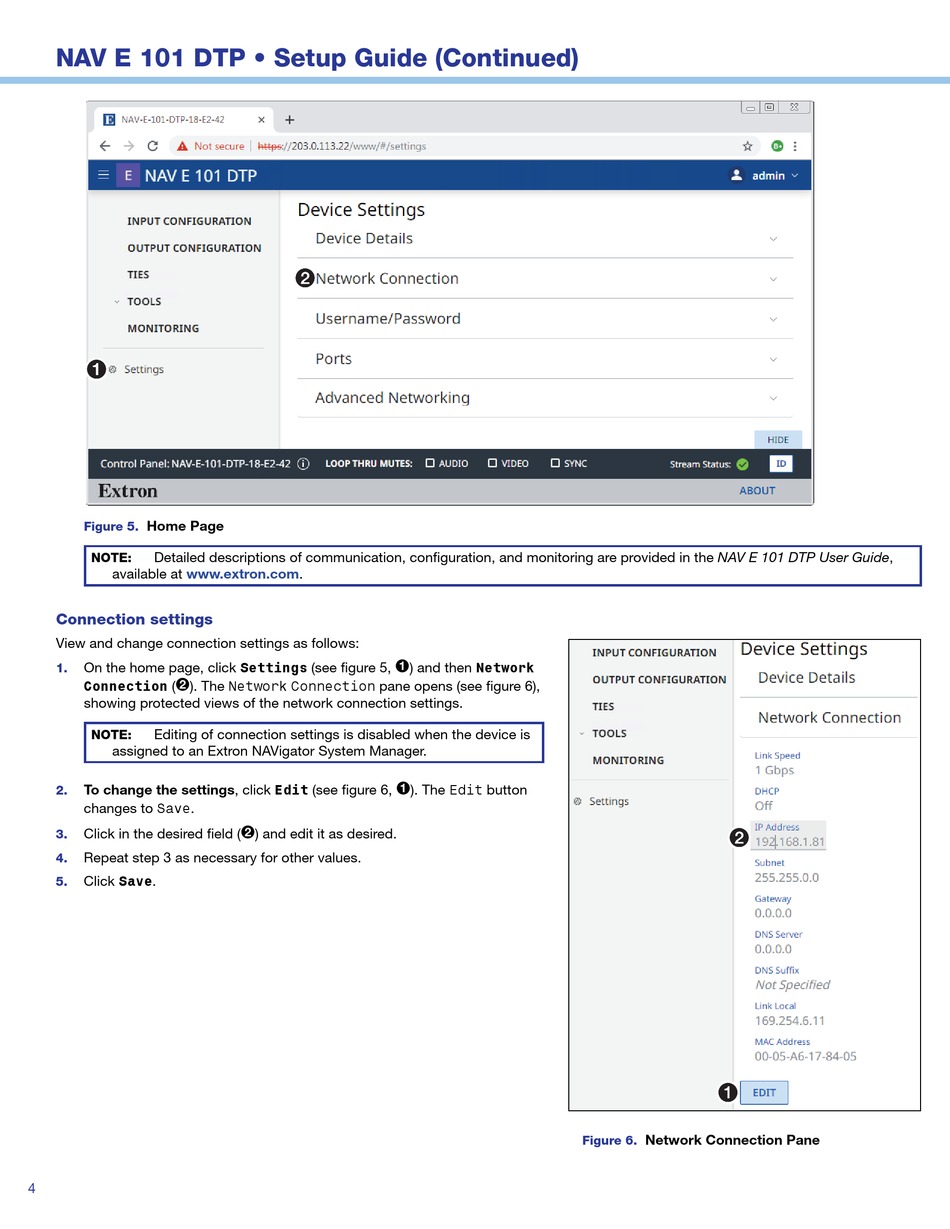

Network Connection Pane
Figure 6.
