About This Publication
Before You Begin

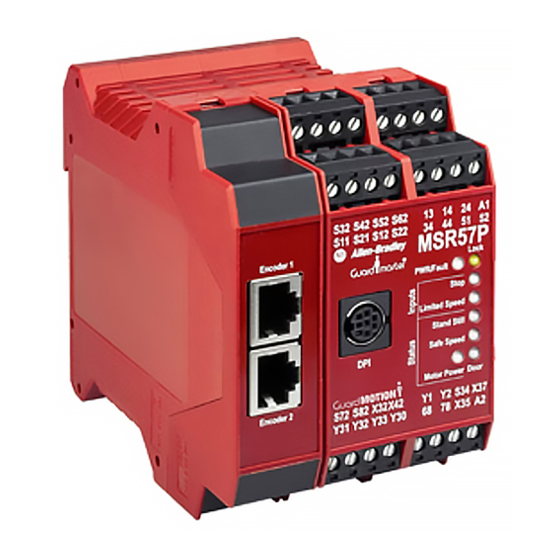

Guardmaster MSR57P Speed Monitoring
Safety Relay
Catalog Number 440R-S845AER-NNL
Topic
About This Publication
Before You Begin
Corrected Anomalies
Update Firmware
Confirm the Update
Download Your Saved Configuration File
Additional Resources
This document explains how to install new firmware into the MSR57P
safety relay. These release notes correspond to revision 1.005 of the
MSR57P firmware.
The procedure assumes that you have Drive Explorer software,
version 5.02.07 or later, installed on your PC and you have
successfully connected to the MSR57P relay.

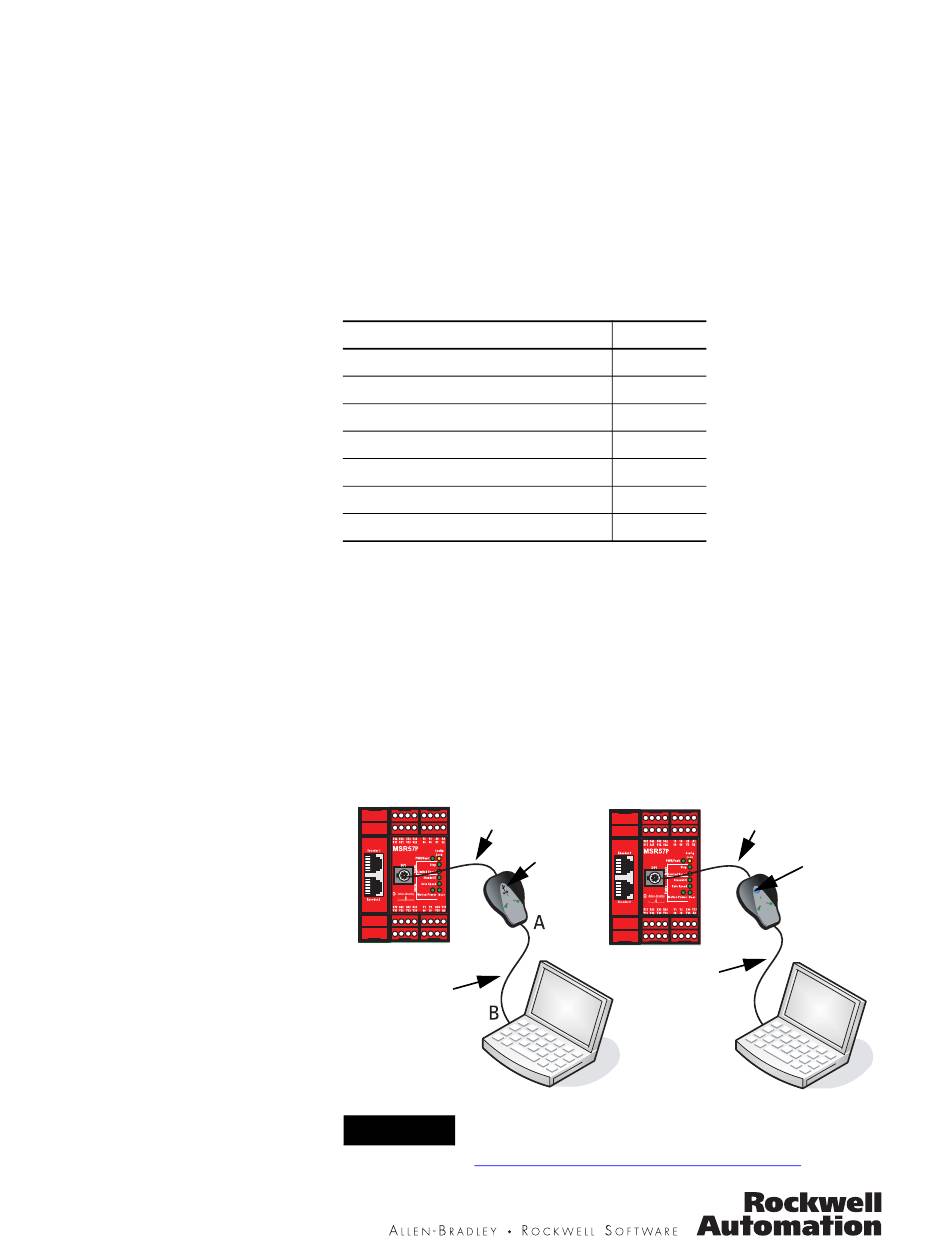

Using USB Converter
20-HIM-H10 Cable
Type A to Type B USB
Cable
DriveExplorer Software
If you do not have DriveExplorer software, you can
TIP
download the free version, DriveExplorer Lite, at
www.ab.com/drives/driveexplorer/free_download.html.
Page
1
1
3
3
6
6
7
Using Serial Converter
Power Status
Indicator
1203-SFC Cable
DriveExplorer Software
Release Note
1202-C10 Cable
Power Status
Indicator
