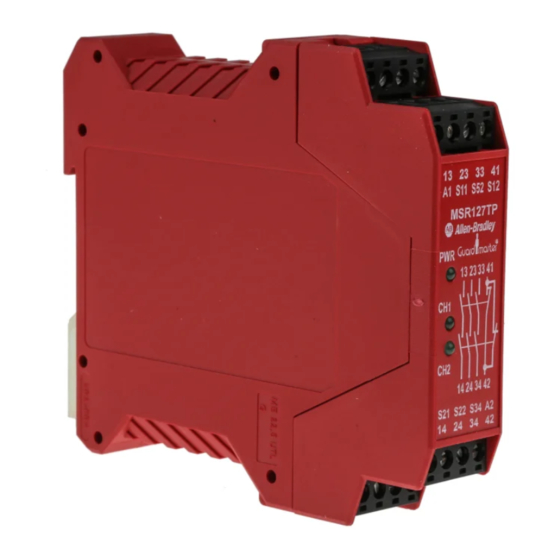

Rockwell Automation MSR127RTP Manual

Safety relay

MSR127RP/TP

Description

The MSR127RTP can be connected in three different input wiring configurations: one normally closed, two normally closed, or with

two PNP connections from a light curtain. When connected in the two normally closed fashion, the MSR127RTP checks for cross faults

across the two inputs. When connected to light curtains, the light curtain must perform the cross fault detection.

The MSR127RP has a monitored manual reset. The MSR127TP has an automatic/manual reset. Models with automatic/manual reset

can have the reset jumpered or can be converted to an unmonitored manual reset by adding a normally open switch in the monitoring

loop. Models with monitored manual reset provide checking of the output monitoring circuit.

The outputs include three normally open safety-rated outputs as well as one normally closed auxiliary output. The safety outputs have

independent and redundant internal contacts to support the safety function. The auxiliary output is a nonsafety output intended to

provide an external signal about the status of the safety outputs.

Category 4 per EN 954-1

Stop category 0

Three safety contacts

One auxiliary contact

Cross fault monitoring

Monitored or automatic reset

Removable terminals

Light curtain, E-stop or safety gate applications

Green

Power On

Green

CH1 Closed

Green

CH2 Closed

Specifications

Table of Contents

Do you have a question about the MSR127RTP and is the answer not in the manual?

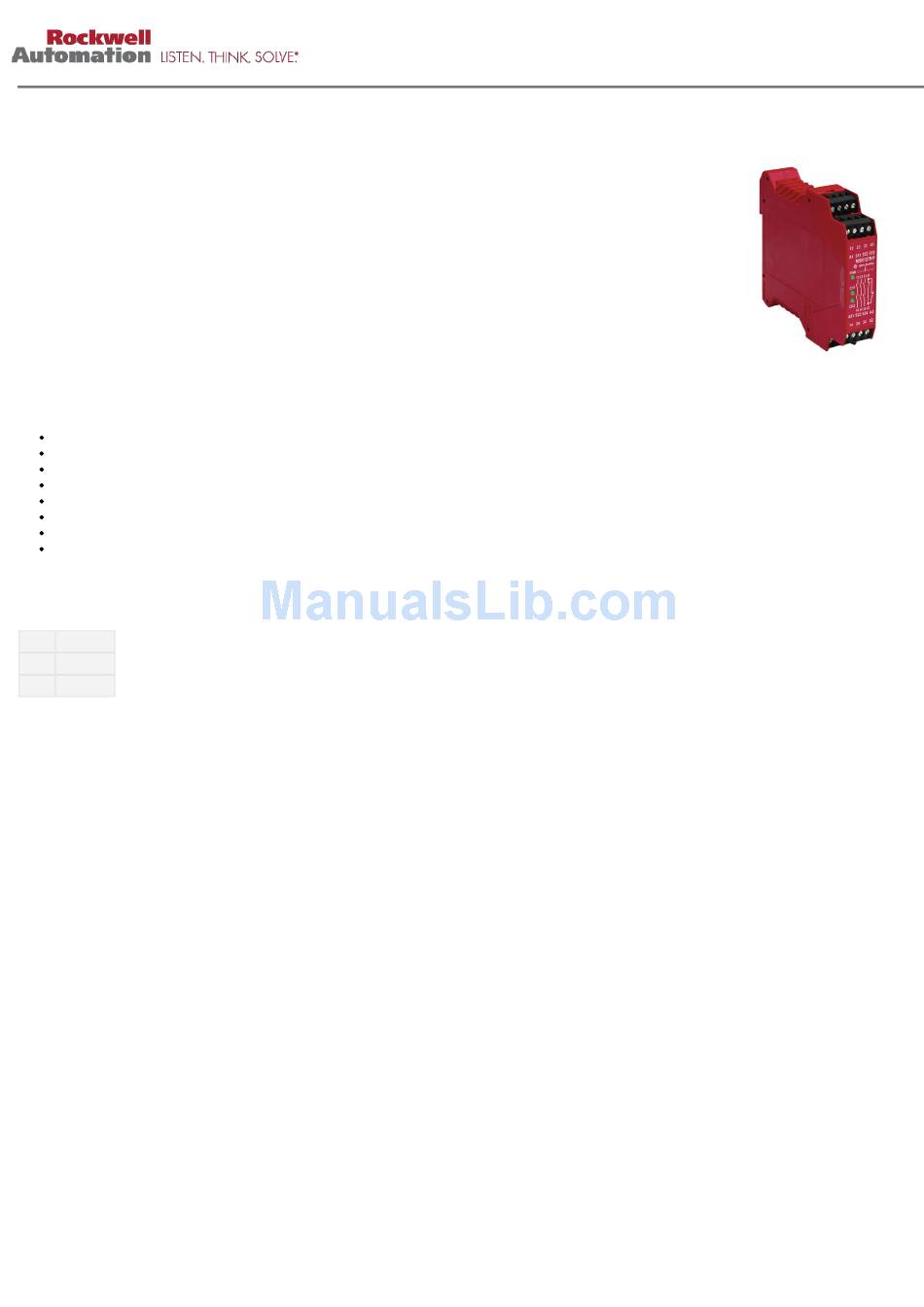

Page 1 The MSR127RTP can be connected in three different input wiring configurations: one normally closed, two normally closed, or with two PNP connections from a light curtain. When connected in the two normally closed fashion, the MSR127RTP checks for cross faults across the two inputs.
Page 2 Safety Ratings Standards EN 954-1, ISO 13849-1, IEC/EN 60204-1, IEC 60947-4-1, IEC 60947-5-1, ANSI B11.19, AS4024.1 Safety Classification Cat. 4 per EN 954-1 (ISO 13849-1), SIL CL3 per EN IEC 62061, PLe per ISO 13849-1 Functional Safety Data ⋆ : < 1.45 x 10 Note: For up-to-date information, visit MTTFd: >...
Page 3 Inputs Safety Outputs Auxiliary Outputs Terminals Reset Type Power Supply Cat. No. 1 N.C., 2 N.C., Light Curtain 3 N.O. 1 N.C. Fixed Auto./Manual 24V AC/DC 440R-N23126 Monitored Manual 440R-N23129 Auto./Manual 115V AC 440R-N23125 Monitored Manual 440R-N23128 Auto./Manual 230V AC 440R-N23124 Monitored Manual 440R-N23127...
