Rockwell Automation Allen-Bradley Guardmaster MSR55P Installation Instructions

Installation Instructions
Original Instructions
Back EMF Monitoring Relay Module
Catalog Numbers 440R-S35011, 440R-S35012, 440R-S35013,440R-S35014, 440R-S35015, 440R-S35016
IMPORTANT Save these instructions for future use.
Description
The Allen-Bradley Guardmaster® MSR55P back EMF modules are
suitable to monitor the standstill of all electric motors that generate a
remanence voltage while coasting to stop.
The MSR55P standstill module is connected to the motor terminals
and measures the induced back EMF voltage. Two redundant measuring
channels are used (L2-L1 and L3-L1). If the back EMF voltage drops to
0V simultaneously in both channels, it indicates standstill and the
output relay is energized.
The voltage threshold that indicates a standstill on the MSR55P
module is adjustable. This standstill allows the unit to work with
different types of motors in various applications. The standstill time T
(time delay between detection and energizing of the relay) is also
adjustable.
The MSR55P standstill module detects a broken wire on the measuring
inputs L1/L2/L3. If a broken wire is detected, the relay outputs go into
safe state (as with running motor).
Features
• Safe standstill detection on three-phase and single-phase motors
• Performance Level is PLe
• Category 4 to EN ISO13849-1: 2008
• SIL Claimed Level (SIL CL) 3 to IEC/EN 62061
• Safety integrity level (SIL) 3 to IEC/EN 61508 and IEC/
EN 61511
• No external sensors necessary
• Standstill detection independent of direction
• Broken wire detection
• Three N.O. contacts, one N.C. contact for up to AC 250V
• Two semiconductor monitored outputs
• One monitored output (N.O. contact)
• Adjustable voltage setting
• Adjustable standstill time delay
• LED indicators for standstill, event of line breakage and
operation voltage
• Suitable for operation with inverters
• Removable screw terminals

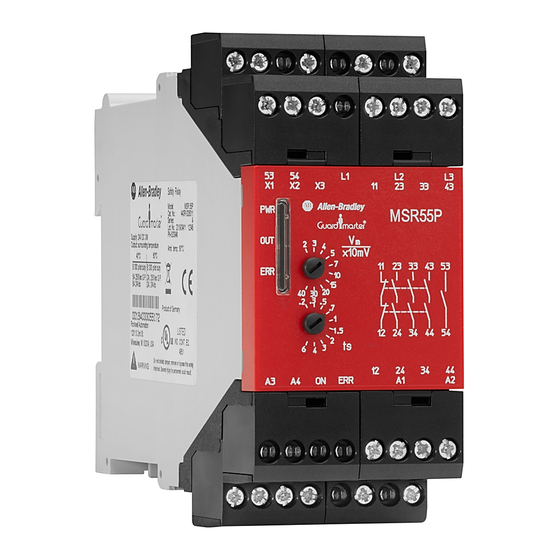

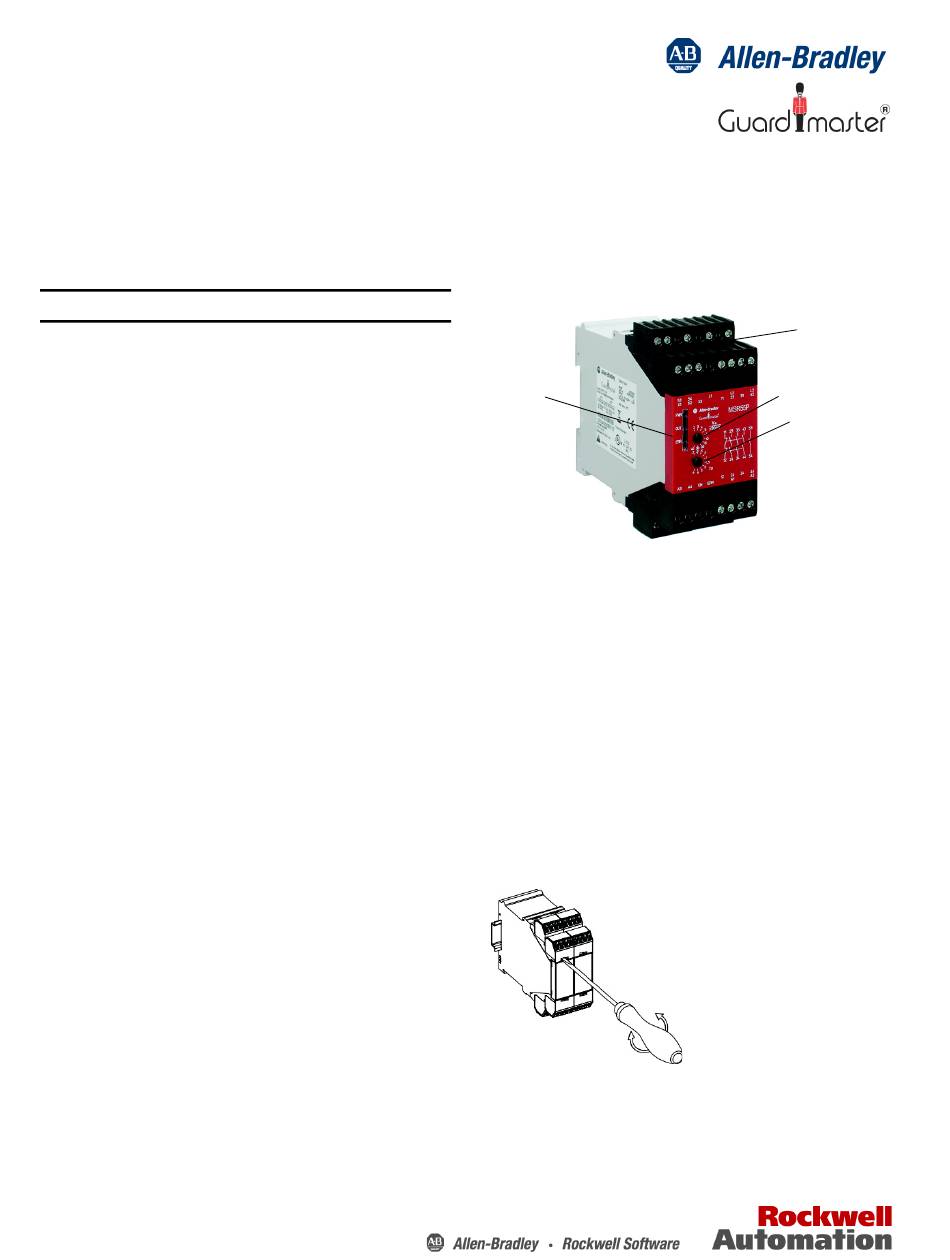

Figure 1 - Overview of Key Features
Three indicators
for status and
diagnostics
DIN Rail Mounting and Removal
s
MSR55P standstill module safety relays mount onto 35 mm DIN rails.
Spacing
MSR55P standstill module safety relays can be mounted directly next to
other MSR and GSR safety relays.
Maintain a space of 50.8 mm (2 in.) above, below, and in front of the
relay for adequate ventilation.
Removable Terminals
MSR55P standstill module safety relays have removable terminals to
ease wiring and replacement.
Removable terminal
blocks
Standstill voltage setting
Standstill time delay setting
1. Insert the tip of a small
screwdriver into the
slot near the terminal
screws.
2. To unlock the terminal
block, rotate the
screwdriver.
