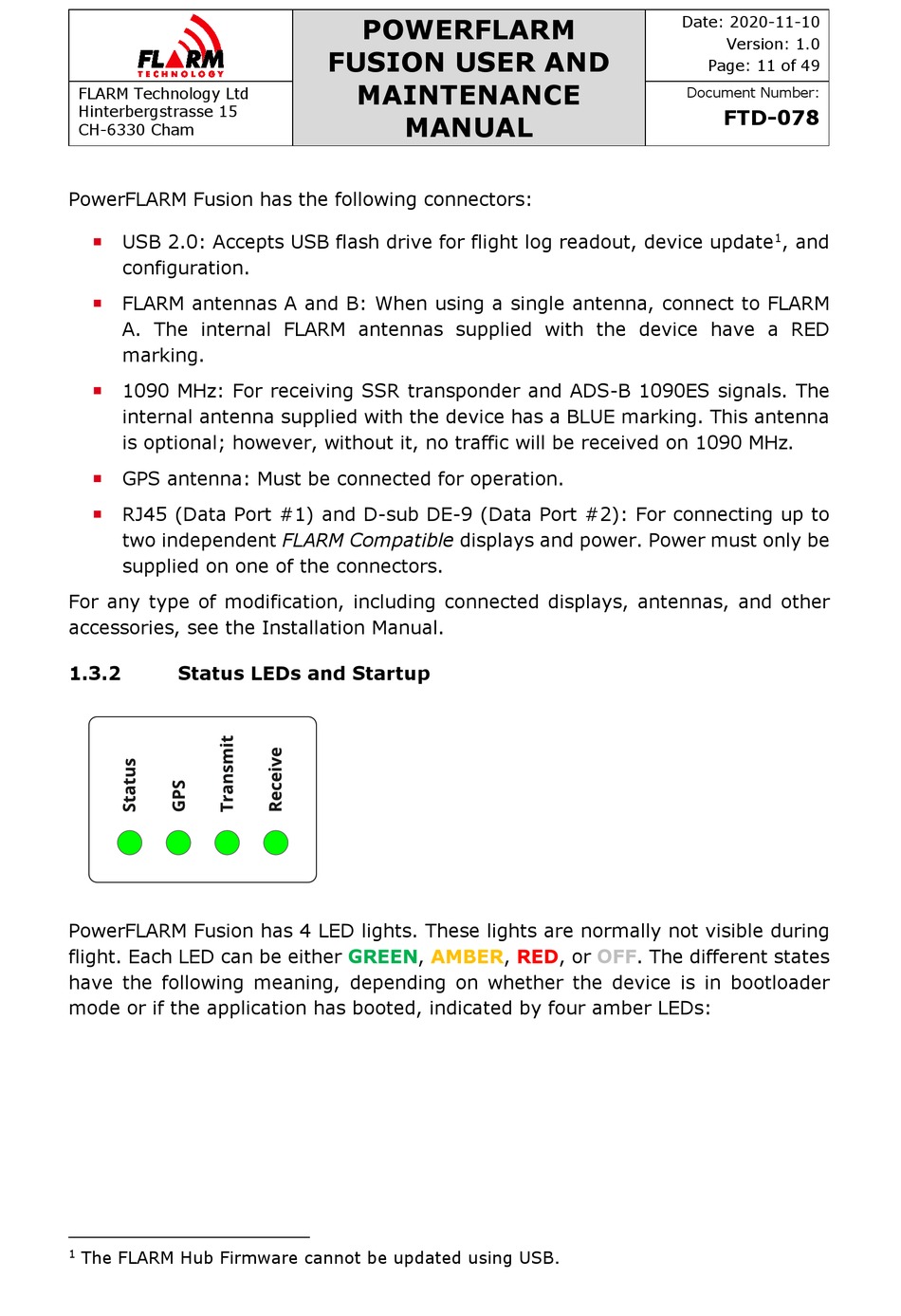

PowerFLARM Fusion has the following connectors:
USB 2.0: Accepts USB flash drive for flight log readout, device update

configuration.
FLARM antennas A and B: When using a single antenna, connect to FLARM

A. The internal FLARM antennas supplied with the device have a RED
marking.
1090 MHz: For receiving SSR transponder and ADS-B 1090ES signals. The

internal antenna supplied with the device has a BLUE marking. This antenna
is optional; however, without it, no traffic will be received on 1090 MHz.
GPS antenna: Must be connected for operation.

RJ45 (Data Port #1) and D-sub DE-9 (Data Port #2): For connecting up to

two independent FLARM Compatible displays and power. Power must only be
supplied on one of the connectors.
For any type of modification, including connected displays, antennas, and other
accessories, see the Installation Manual.
1.3.2

Status LEDs and Startup

PowerFLARM Fusion has 4 LED lights. These lights are normally not visible during
flight. Each LED can be either GREEN, AMBER, RED, or OFF. The different states
have the following meaning, depending on whether the device is in bootloader
mode or if the application has booted, indicated by four amber LEDs:
The FLARM Hub Firmware cannot be updated using USB.
