SIMPLEX 4100 EWIS
OPERATOR MANUAL
4

FAULT CONDITIONS

When a fault condition is detected by the EWIS System, the condition is indicated on
the main 4100 EWIS PANEL as follows:
- Yellow "SYSTEM FAULT" LED is flashing.
- Tone-alert is on steady.
- Alphanumeric display shows the following:
**FAULT**
ALARMS = 0
The panel has a yellow fault LED which will light whenever a fault is present in the
system. When a fault occurs, the LED will flash, the tone-alert sounds steady, and a
fault message will be displayed on the alphanumeric display. The fault LED will glow
steady and the tone-alert silences when the <FAULT ACK> key is pressed.
When Global Acknowledge is used, and the fault clears, the system automatically
clears without user intervention. After approximately 30 seconds, the system should
display "SYSTEM IS NORMAL followed by time and date".
SIMPLEX AUSTRALIA
NORMAL
08:23:43
4.1

HOW TO OPERATE THE PANEL DURING FAULT CONDITIONS

(Yellow LED Is Flashing And Tone-Alert Is On Steady)

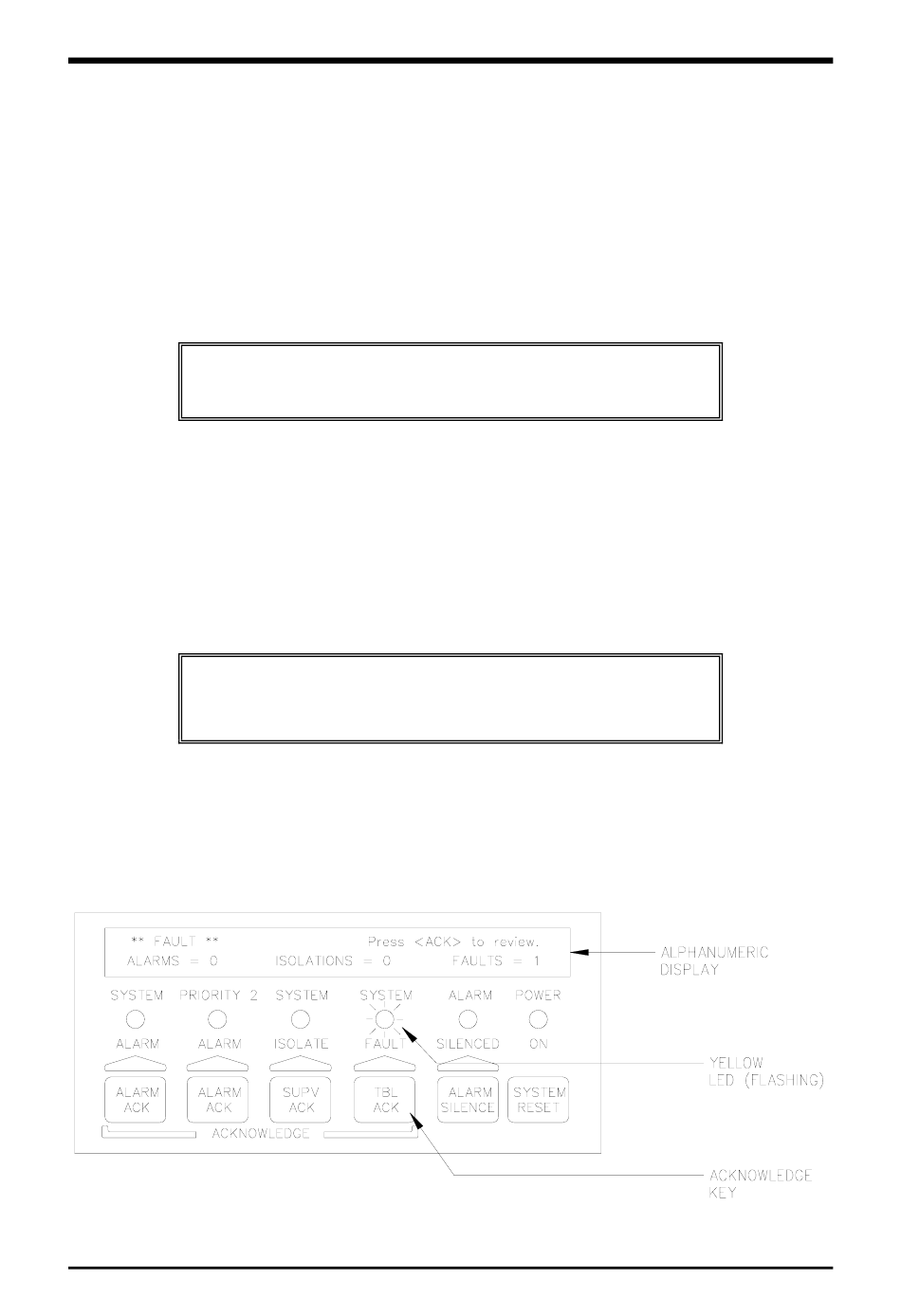

Figure 7
Document No.: 4100-M010A
Press ACK to review.
ISOLATED = 0
FRI 13 FEB 98
Operator Interface Showing Fault Conditions
May 1999
FAULT = 1
SYSTEM IS
Page 15
Issue 3.1
