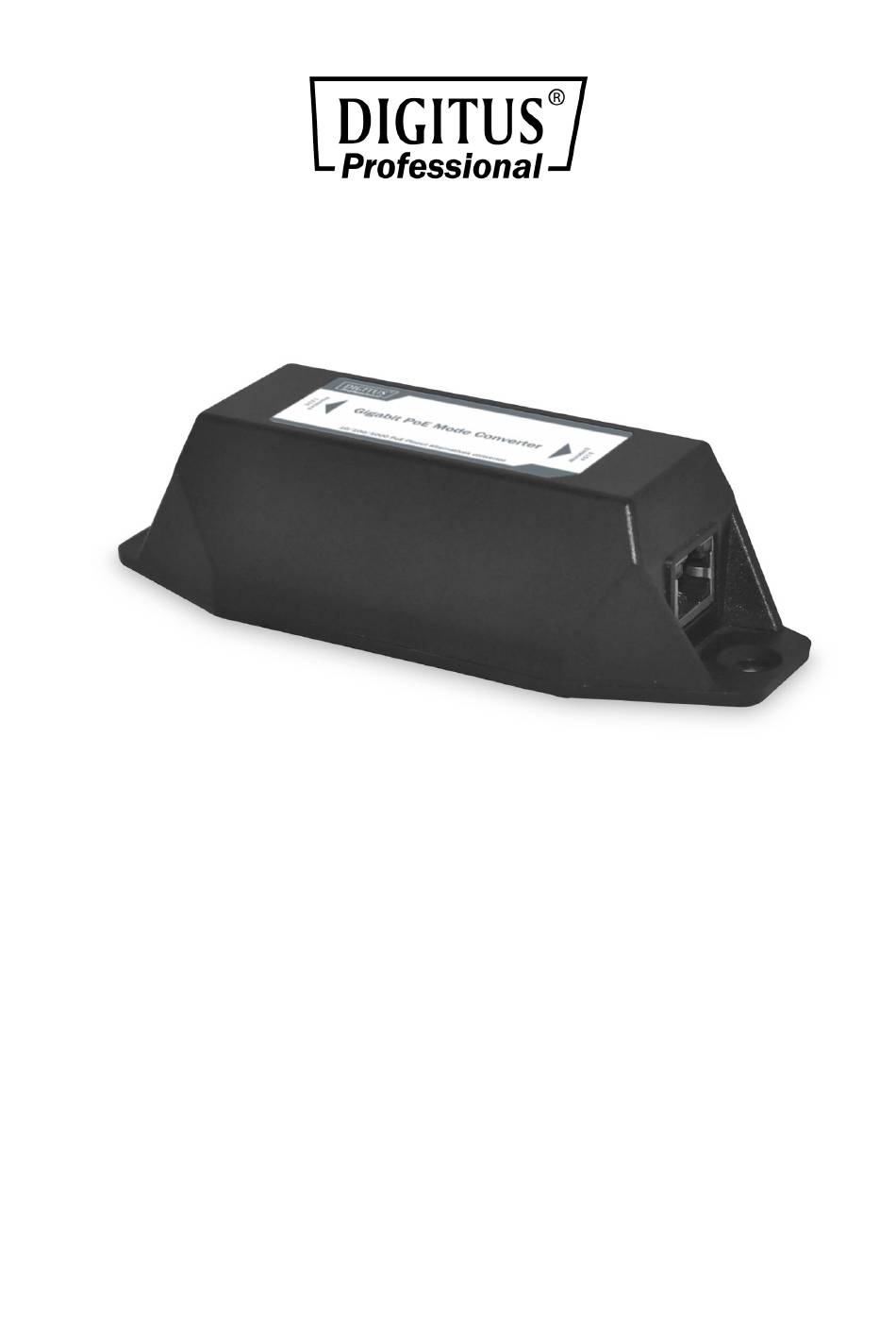

Gigabit PoE Mode Converter
User Manual
DN-95130
Description

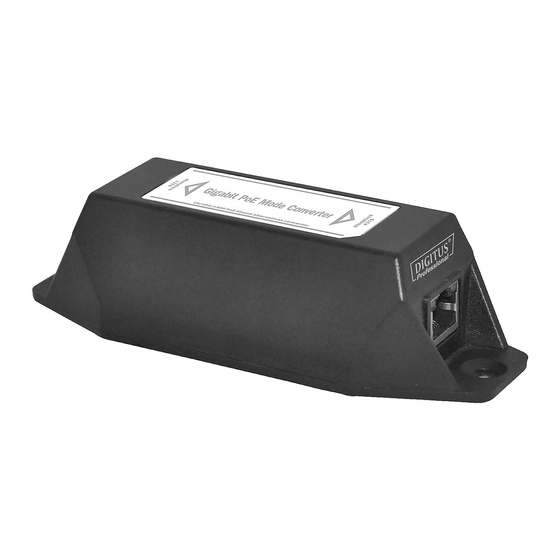

DN-95130 is a PoE Mode Converter. It can be easily converter the PoE
power pin from mode A (1/2/3/5) to mode B (4/5/7/8) or the other way
around. No extra power needed. It is most efficient way to resolve PoE
power supply problem due to Power PIN support difference.
Based on the actual needs, for example, the PSE end is powered by
Mode B 4, 5, 7, and 8 cores, while the PD end requires mode A 1, 2, 3,
and 6 to power. Then just using one cable to connect mode B port as
marked, and the other end is converted to mode A, and using another
cable to connect the PD end.
Advertisement
Table of Contents
Related Manuals for Digitus DN-95130
Summary of Contents for Digitus DN-95130
- Page 1 DN-95130 Description DN-95130 is a PoE Mode Converter. It can be easily converter the PoE power pin from mode A (1/2/3/5) to mode B (4/5/7/8) or the other way around. No extra power needed. It is most efficient way to resolve PoE power supply problem due to Power PIN support difference.
- Page 2 1x User Manual Installation 1. Connect PSE PoE cable to corresponding POE mode A (1/2/3/6) or B (4/5/7/8) 2. Connect PD to another side of DN-95130. You will get PoE mode changed. Left to Right (Change 1/2/3/6 PoE to 4/5/7/8 PoE) PSE (1/2/3/6) ...
- Page 3 Specification Model DN-95130 10/100/1000Mbps (based on the rate of Rate the input device) POE compatibility IEEE802.11af IEEE 802.11at POE type POE output voltage 48-57VDC (Based on the input voltage) POE output power POE PIN Assignment Mode A (1, 2, 3, 6)
