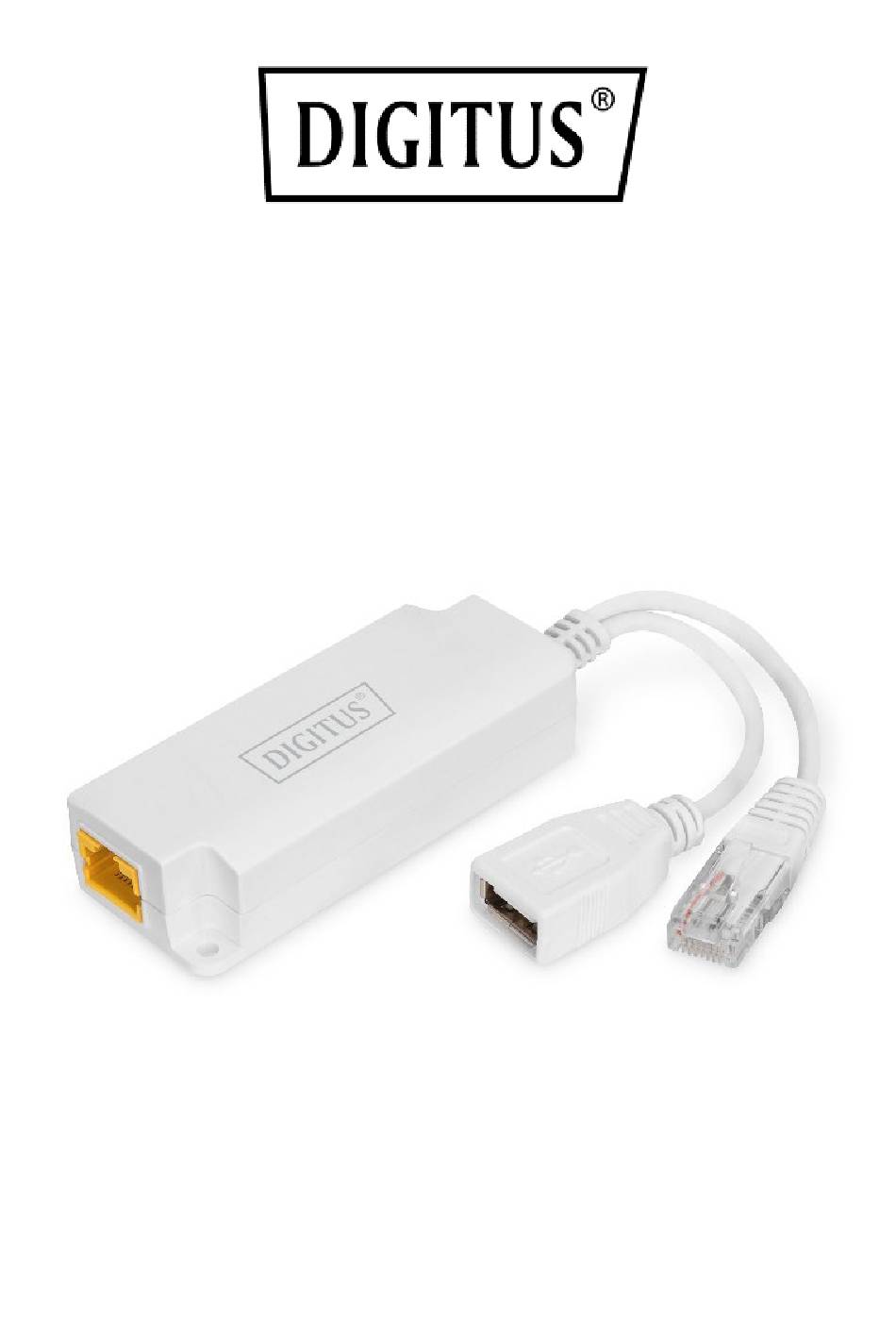

- Page 1 DIGITUS USB-A 5V PoE Splitter Quick Installation Guide DN-95208...
-
Page 2: Table Of Contents
5. Connection Diagram ..............4 6. Specification ................4 1. Introduction DN-95208 is an indoor rated PoE USB-A splitter specially designed for complex backhaul and networking application. Enclosed in an IP40 fire retardant plastic case with compact design. It works as a converter to get power and data from PoE injector or PoE Switch of 802.3af/at over... -
Page 3: Package Content

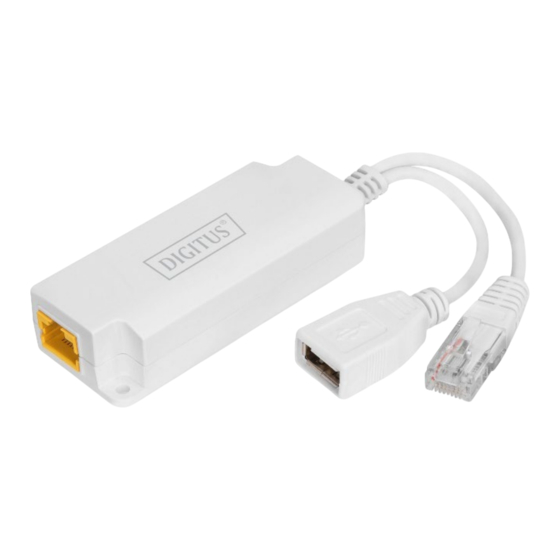

3. Package content • 1x USB PoE splitter • 1x Manual 4. Product Profile PoE: Data and Power input port Mounting holes USB-A jack LAN output port... -
Page 4: Connection Diagram
5. Connection Diagram Wireless LAN Router Notebook 1 Notebook 2 6. Specification Input and Output Input Ports 40-57Vdc PoE injector/ PoE Switch 802.3af/at Input Power Pins 4/5(+), 7/8(-) or 3/6(+),1/2(-) Output Ports 5Vdc 2.0A 0℃ to 55℃, 5Vdc 2.5A(max) @0℃ to 40℃, Data Speed 10/100Mbps Working Environment... - Page 5 Storage humidity 10% to 90%, non-condensation Operating altitude Up to 2000 meters Mechanical Characteristics Case Plastic Color white Mounting Wall mounted IP Rated IP 40 Size (82.3+124.81) mm x 34.7mm x 19 mm Weight 66,9 g Connectors 1 x RJ45 Female, 1 x RJ45 Male 1 x USB-A Female LED Indicator...
