10/100/1000 Mbps, 12W
Features
Ethernet Speed:10/100/1000Mbps Gigabit Half/Full Duplex
PoE Standard: IEEE802.3af
Input: Power + Data In (RJ45)
Output: Data Out (RJ45), DC Out
Plug-and-Play Installation - No configuration necessary
Selectable output voltages: 5V/2A, 9V/1A, 12V/1A
Splits the 48VDC power over RJ45 Ethernet cable into different DC output
Status LED on the device (PoE ready/PoE in-use)
Circuit isolation protection
Maximum power output up to 12W
Support wide input voltage range 34VDC to 57VDC
Thermal cut off
Operating Temperature: 0 to 40℃
Dimensions (L x W x H): 80 x 55 x 23 mm
Weight: 80g
Color: Black

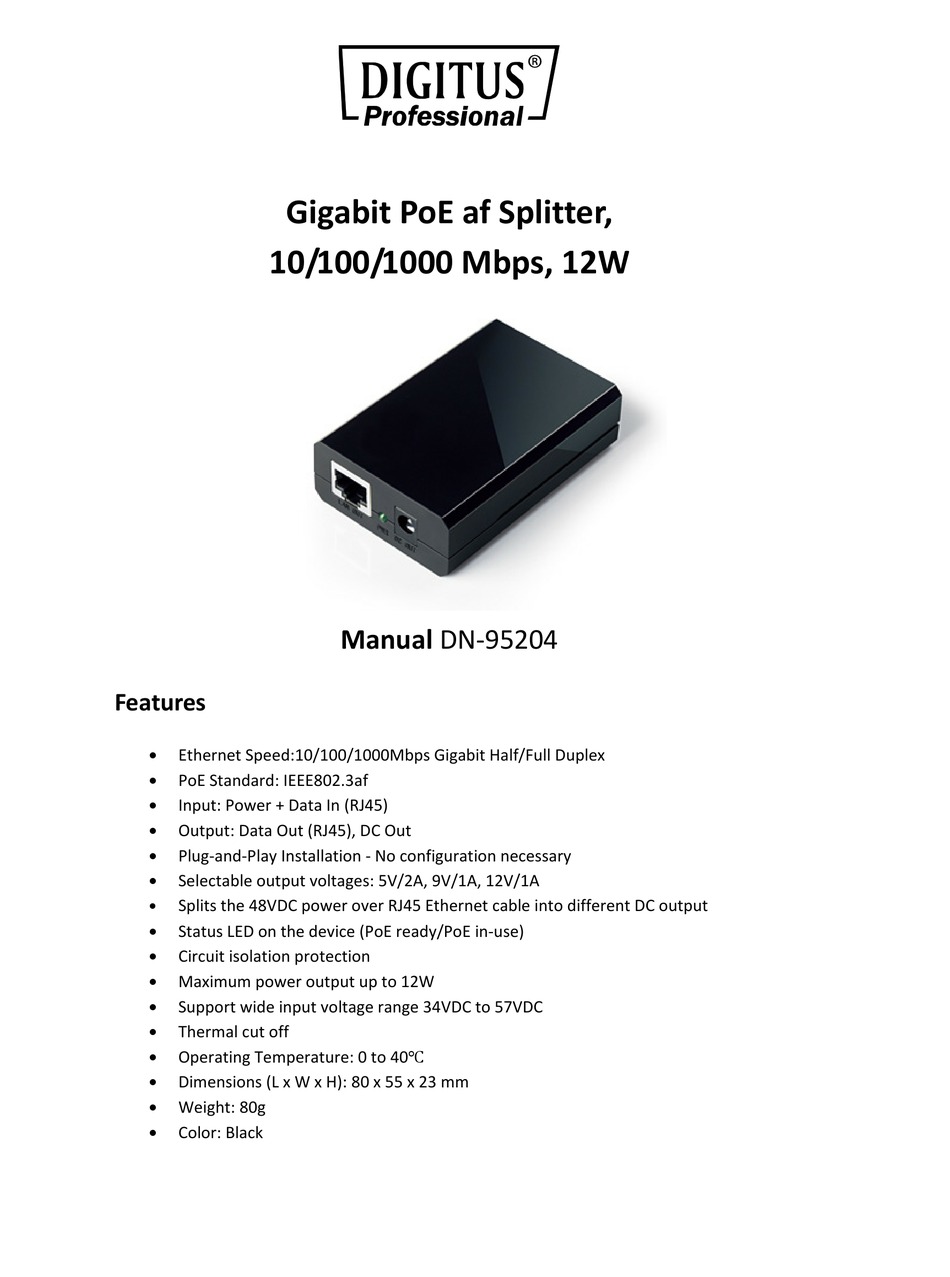

Gigabit PoE af Splitter,
Manual DN-95204
Advertisement
Table of Contents
Related Manuals for Digitus DN-95204
Summary of Contents for Digitus DN-95204
- Page 1 Gigabit PoE af Splitter, 10/100/1000 Mbps, 12W Manual DN-95204 Features Ethernet Speed:10/100/1000Mbps Gigabit Half/Full Duplex PoE Standard: IEEE802.3af Input: Power + Data In (RJ45) Output: Data Out (RJ45), DC Out Plug-and-Play Installation - No configuration necessary ...
-
Page 2: Specifications
Description The DIGITUS PoE Splitter provide data and power via a single Ethernet Cable to devices, which are not supporting Power over Ethernet. Just connect the input of the Splitter to a PoE Switch or a PoE Injector and the output side to a non-PoE network device such as an access point, IP Phone or a Camera to provide Power and Data. - Page 3 Application Package Content: 1 x Gigabit PoE Splitter 1 x Manual 1 x RJ45 Ethernet cable 1 x DC power cable 1 x 3.5mm Power Jack converter Hereby ASSMANN Electronic GmbH, declares that this device is in compliance with the requirements of Directive 2014/30/EU and the Directive 2011/65/EU for RoHS compliance.
