Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: PT-101HDCP DVI Repeater P/N: 2900-000511 Rev 4... -
Page 3: Table Of Contents
Contents Introduction Getting Started Achieving the Best Performance Safety Instructions Recycling Kramer Products Overview Defining the PT-101HDCP DVI Repeater Connecting the PT-101HDCP Technical Specifications Figures Figure 1: PT-101HDCP DVI Repeater Figure 2: Connecting the PT-101HDCP DVI Repeater PT-101HDCP – Contents... -
Page 4: Introduction
Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and GROUP 14: Collaboration. Congratulations on purchasing your Kramer PT-101HDCP DVI Repeater, which is ideal for the following typical applications: ... -
Page 5: Getting Started
Achieving the Best Performance To achieve the best performance: Use only good quality connection cables (we recommend Kramer high- performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables) ... -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
It supports the DDWG DVI 1.0 standard and has two DVI-I connectors, that are compatible with all types of DVI cables. The PT-101HDCP can be powered by an external power supply, or directly—from DVI connectors on Kramer Scalers, as well as from some desktop DVI cards—... -
Page 8: Defining The Pt-101Hdcp Dvi Repeater

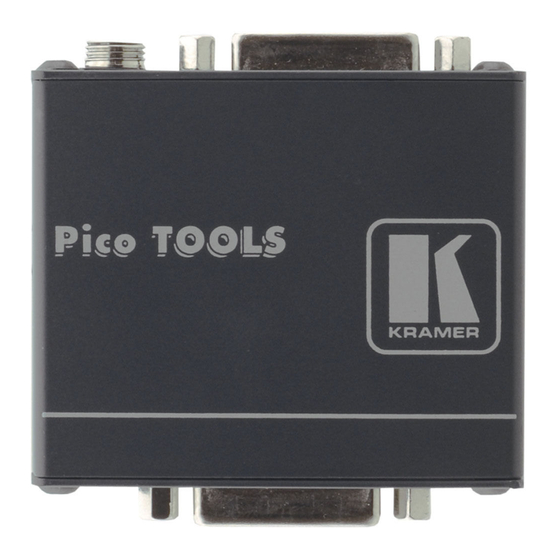

Defining the PT-101HDCP DVI Repeater This section defines the PT-101HDCP. Figure 1: PT-101HDCP DVI Repeater Feature Function OUTPUT DVI Connector Connect to the DVI acceptor 5V DC +5V DC connector for powering the unit INPUT DVI Connector Connect to the DVI source ON LED Illuminates when receiving power. -
Page 9: Connecting The Pt-101Hdcp
2. Connect the OUTPUT connector to a DVI acceptor (for example, a display). 3. Connect the 5V DC power adapter to the power socket on the PT-101HDCP and connect the adapter to the mains electricity. Figure 2: Connecting the PT-101HDCP DVI Repeater... -
Page 10: Technical Specifications
6.22cm x 5.23cm x 3.20cm (2.5" x 2.1" x 1.3"), W, D, H WEIGHT: 0.07kg (0.16lbs) approx. INCLUDED ACCESSORIES: Power supply, mounting bracket RK−4PT 19" rack adapter OPTIONS: Specifications are subject to change without notice at http://www.kramerelectronics.com PT-101HDCP - Technical Specifications... - Page 12 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
