Summary of Contents for Kramer PT-5T
-
Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: PT-5T/R IR Extender/Repeater P/N: 2900-300010 Rev 3... -
Page 3: Table Of Contents
Achieving the Best Performance Safety Instructions Recycling Kramer Products Overview Defining the PT-5T/R IR Extender/Repeater Connecting and Using the PT-5T/R IR Extender/Repeater Identifying the IR Receiver and IR Emitters Connecting the PT-5T/R IR Extender/Repeater Using the PT-5T/R IR Extender/Repeater Technical Specifications... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer PT-5T/R away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
Overview The PT-5T/R is an IR transmitter and receiver pair that lets you control up to five devices via their own remote control transmitters from an extended distance over TP (twisted pair) cable. In particular, the PT-5T/R: Lets you operate IR devices that are stacked away in closets, cabinets and even other rooms ... -

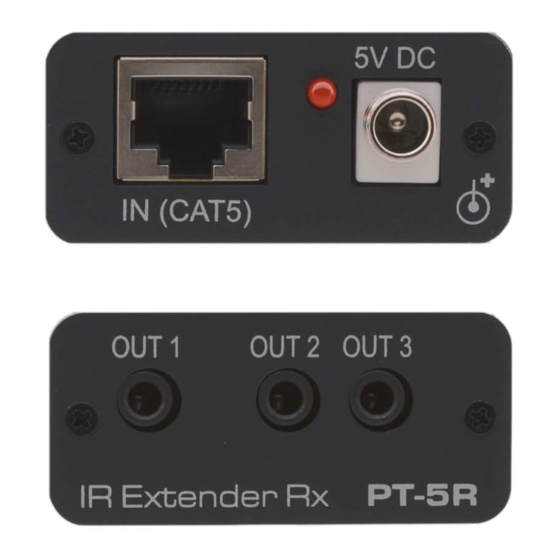

Page 8: Figure 2: Pt-5R Ir Extender/Repeater
Plug in the fourth IR emitter OUT 3 3.5mm Mini Jack Plug in the fifth IR emitter IN (CAT 5) RJ-45 TP Connect to the PT-5T using CAT 5 TP cable Connector Power LED Lights red when the unit receives power... -
Page 9: Connecting And Using The Pt-5T/R Ir Extender/Repeater
Figure 3: IR Receiver and Emitter Connecting the PT-5T/R IR Extender/Repeater To connect the PT-5T/R IR Extender/Repeater as illustrated in the example in Figure 1. Plug the IR receiver into the IR IN 3.5mm mini jack on the front panel of the PT-5T. -
Page 10: Using The Pt-5T/R Ir Extender/Repeater
From the PT-5T to the device under control or From the PT-5T to the PT-5R via the TP cable, and from there to the device under control PT-5T/R - Connecting and Using the PT-5T/R IR Extender/Repeater... -
Page 11: Technical Specifications
Technical Specifications INPUTS: PT-5T: 1 IR receiver on a PT-5R: 1 RJ-45 3.5mm mini jack OUTPUTS: PT-5T: 2 IR emitters on PT-5R: 3 IR emitters on 3.5mm mini jacks, 1 RJ-45 3.5mm mini jacks MAXIMUM OPERATING 250m (820ft) DISTANCE: CARRIER FREQUENCY:... - Page 13 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
