Page 1: User Manual
K R A ME R E LE CT R O N IC S L T D . USER MANUAL MODEL: PT-101DP DisplayPort Repeater P/N: 2900-300107 Rev 2... -
Page 3: Table Of Contents
Getting Started Achieving the Best Performance Recycling Kramer Products Overview About DisplayPort Defining the PT-101DP DisplayPort Repeater Connecting the PT-101DP Technical Specifications Figures F igure 1: PT-101DP DisplayPort Repeater F igure 2: Connecting the PT-101DP DisplayPort Repeater PT-101DP – Contents... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality • Position your Kramer product away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Recycling Kramer Products
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview

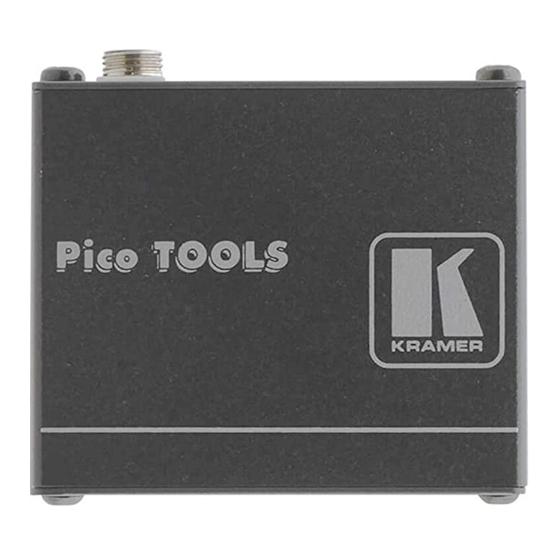

Overview The PT-101DP is a repeater for DisplayPort video signals. The unit reclocks and equalizes the signal enabling multiple units to be cascaded and can extend the length of a DisplayPort line up to 35 meters (115ft) at resolutions of UXGA/1080p using Kramer cables. - Page 8 • Replaces the interface needed between the PC and an external display, as well as the low voltage differential signaling (LVDS) interface in notebook computers, monitors, to connect to LCD panels PT-101DP - Overview...
-
Page 9: Defining The Pt-101Dp Displayport Repeater
Lights green when the unit is powered on OUTPUT DP Connector Connects to a DisplayPort acceptor EQ Button Press (High) for equalization of longer cables, release (Low) for shorter cables 5V DC Connector Connects to the 5V DC power adapter PT-101DP - Defining the PT-101DP DisplayPort Repeater... -
Page 10: Connecting The Pt-101Dp
2. Connect the OUTPUT connector to a DisplayPort acceptor (for example, a DisplayPort display). 3. Connect the 5V DC power adapter to the power socket on the PT-101DP and connect the adapter to the mains electricity. Figure 2: Connecting the PT-101DP DisplayPort Repeater... -
Page 11: Technical Specifications
1 DisplayPort connector BANDWIDTH: Supports up to 1.62 Gbps or 2.7Gbps per lane (Note: Transmission range is very limited for resolutions approaching 2560x1650) RANGE: 35m (115ft) @UXGA/1080p using Kramer cables COMPLIANCE WITH Supports DisplayPort 1.1a and HDCP 1.3 STANDARDS: INDICATOR: ON LED POWER CONSUMPTION: 5V DC, 1.1A... - Page 13 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
