Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Model: PT-4 iREX IR Repeater... -
Page 2: Table Of Contents
Connecting the PT-4 iREX IR Repeater Technical Specifications Figures Figure 1: PT-4 iREX IR Repeater Figure 2: Connecting the IR Emitter Figure 3 Connecting the IR Repeater Tables Table 1: Features and Functions of the PT-4 iREX Table 2: Technical Specifications of the PT-4 iREX... -
Page 3: Introduction
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors 2 The 3.5mm to IR Emitter Control Cable (C-A35/IRE-10) 3 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com 4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... -
Page 4: 2.1 Quick Start
Getting Started 2.1 Quick Start This quick start chart summarizes the basic setup and operation: KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 5: Overview
2 By using the IR emitter extension cables (see Table 2) 3 Model C-A35M/IRR-03 4 For example, you can stick the IR external receiver eye on the display, hide the PT-4 iREX in a cabinet, and control it via the external receiver eye... -
Page 6: Your Ir Repeater

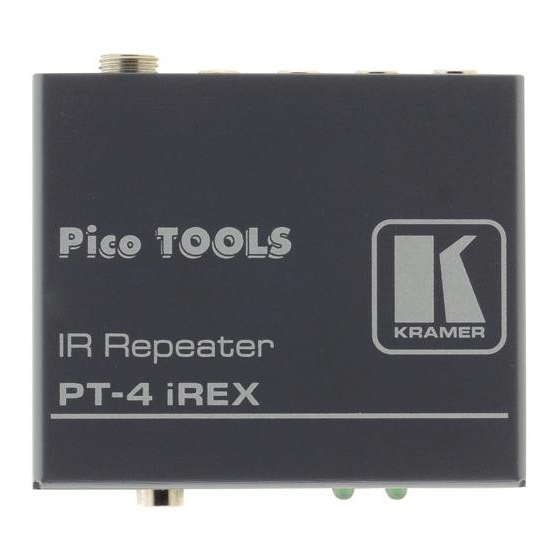

Your IR Repeater Your IR Repeater Figure 1 and Table 1 define the PT-4i REX unit: Figure 1: PT-4 iREX IR Repeater Table 1: Features and Functions of the PT-4 iREX Feature Function OUT 3.5mm Mini Connector Connect to the IR emitter cable (from 1 to 4) -
Page 7: Connecting The Pt-4 Irex Ir Repeater
Connecting the PT-4 iREX IR Repeater Connecting the PT-4 iREX IR Repeater To connect the PT-4 iREX IR Repeater, as illustrated in the example in Figure 3, do the following: 1. Connect the OUT , 3.5mm mini connector (from 1 to 4) to the following IR... -
Page 8: Figure 3 Connecting The Ir Repeater
Connecting the PT-4 iREX IR Repeater Figure 3 Connecting the IR Repeater An external Remote IR receiver can be connected to the EXT. connector, letting you control the PT-4 iREX from a distance of approximately 30 meters. 1 Optional (model C-A35M/IRR-03) -
Page 9: Technical Specifications
Technical Specifications Technical Specifications Table 2 defines the technical specifications: Table 2: Technical Specifications of the PT-4 iREX INPUT: 1 IR Receiver OUTPUTS: 4 IR emitters on 3.5mm mini connectors POWER SOURCE: 12V DC, 95mA DIMENSIONS: 6.22cm x 5.24cm x 2.41cm (2.45" x 2.06" x 0.95") W, D, H WEIGHT: 0.15 kg. - Page 10 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
