Page 1: User Manual
K R A ME R E LE CT R O N IC S L T D . USER MANUAL MODEL: PT-4iREX IR Repeater P/N: 2900-000283 Rev 5... -
Page 3: Table Of Contents
Achieving the Best Performance Recycling Kramer Products Overview Defining the PT-4iREX IR Repeater Connecting the PT-4iREX Technical Specifications Figures F igure 1: PT-4iREX IR Repeater F igure 2: Connecting the IR Emitter F igure 3: Connecting the PT-4iREX IR Repeater PT-4iREX – Contents... -
Page 4: Introduction
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products. Congratulations on purchasing your Kramer PT-4iREX IR Repeater, which is ideal for the following typical applications: •... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality • Position your Kramer PT-4iREX away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Recycling Kramer Products
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
PT-4 iREX • Has an IR sensor Has an external IR receiver (model C-A35M/IRR-03) that lets you control the • PT-4 iREX from a distance of approximately 30 meters • Is 12V DC fed PT-4iREX - Overview... -
Page 8: Defining The Pt-4Irex Ir Repeater

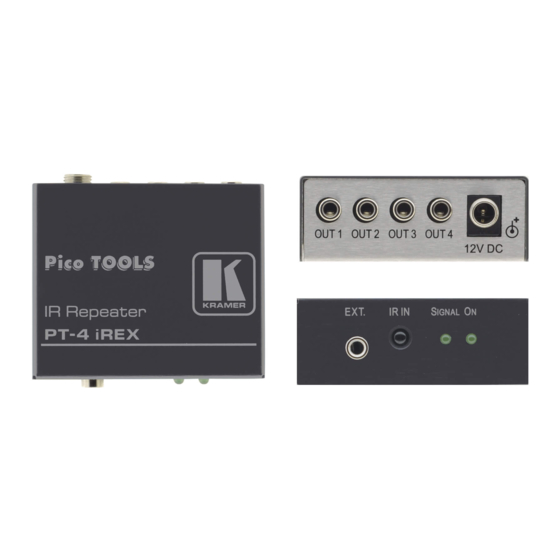

Defining the PT-4iREX IR Repeater This section defines the PT-4iREX. Figure 1: PT-4iREX IR Repeater Feature Function OUT 3.5mm Mini Connector Connect to the IR emitter cable (from 1 to 4) 12V DC +12V DC connector for powering the unit EXT. -
Page 9: Connecting The Pt-4Irex
Connecting the PT-4iREX Always switch off the power to each device before connecting it to your PT-4iREX. After connecting your PT-4iREX, connect its power and then switch on the power to each device. To connect the PT-4 iREX IR Repeater, as illustrated in the example in... -
Page 10: F Igure 3: Connecting The Pt-4Irex Ir Repeater
Figure 3: Connecting the PT-4iREX IR Repeater An external Remote IR receiver can be connected (once the Remote IR Receiver cable is connected, the built-in IR receiver is disabled) to the EXT. connector, letting you control the PT-4 iREX from a distance (with model C-A35M/IRR-03) of approximately 30 meters. -
Page 11: Technical Specifications
3.5mm to IR Emitter Control Cable (C-A35/IRE-10), 0.9m External Remote IR receiver (C-A35M/IRR-03) OPTIONS: 15m and 20m IR Emitter Extension Cables, 15m External IR receiver C-A35M/IRR-50, 15m Extension cable C-A35M/A35F-50 Specifications are subject to change without notice at http://www.kramerelectronics.com PT-4iREX - Technical Specifications... - Page 13 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
