Page 1: User Manual
USER MANUAL MODEL: PT-101UHD HDMI Repeater P/N: 2900-300492 Rev 3 www.kramerAV.com... -
Page 3: Table Of Contents
Getting Started Achieving the Best Performance Safety Instructions Recycling Kramer Products Overview Defining the PT-101UHD HDMI Repeater Connecting the PT-101UHD Technical Specifications Figures Figure 1: PT-101UHD Front and Rear Panel Figure 2: Connecting the PT-101UHD HDMI Repeater PT-101UHD – Contents... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our... -
Page 5: Getting Started
Avoid interference from neighbouring electrical appliances that may adversely influence signal quality Position your PT-101UHD away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Recycling Kramer Products
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
Overview The PT-101UHD is a high-performance HDMI repeater and distance extender. In particular, the PT-101UHD features: Range extension up to 20m(66ft) for 4K@30Hz and for 4K@60Hz (4:2:0) A maximum data rate of 10.2Gbps (3.4Gbps per data channel) ... -
Page 8: Defining The Pt-101Uhd Hdmi Repeater

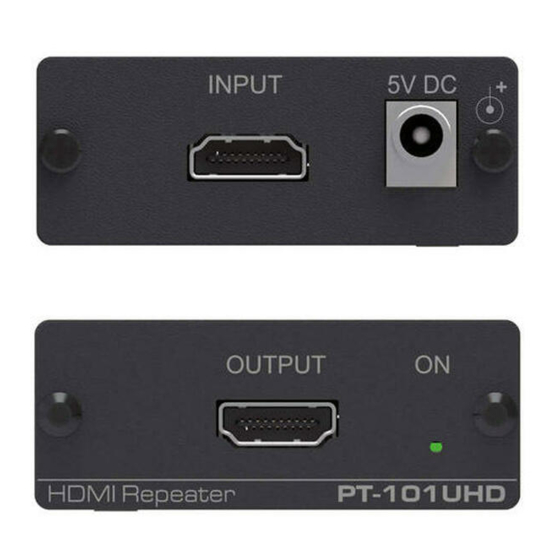

Defining the PT-101UHD HDMI Repeater Figure 1 defines the front and rear panels of the PT-101UHD HDMI Repeater. Figure 1: PT-101UHD Front and Rear Panel Feature Function OUTPUT HDMI Connector Connect to the HDMI acceptor, (for example, a smart TV) ON LED Lights blue when power is connected. -
Page 9: Connecting The Pt-101Uhd
Figure 2: Connecting the PT-101UHD HDMI Repeater To connect the PT-101UHD as illustrated in the example in Figure 2: 1. Connect the HDMI source (for example, a PC) to the INPUT HDMI connector. -
Page 10: Technical Specifications
COMPLIANCE: ENVIRONMENTAL Complies with appropriate requirements of RoHs and REGULATORY WEEE COMPLIANCE: INCLUDED ACCESSORIES: Power supply RK-4PT 19” rack adapter OPTIONS: WARRANTY: 7 years parts and labor Specifications are subject to change without notice at http://www.kramerelectronics.com PT-101UHD - Technical Specifications... - Page 12 SAFETY WARNING Disconnect the unit from the power supply before opening and servicing For the latest information on our products and a list of Kramer distributors, visit our Web site to find updates to this user manual. We welcome your questions, comments, and feedback.
