1.2 Product Overview

With standard any in and any out, D4 is so much more than 4K scale.
With multiple output modes, D4 is a very flexible solution accross a range of applications
Whether for scaling, presentation switching, 4K distribution or broadcast.
Truly an All-In-One solution, D4 accept a wide range of input signals in a huge array of formats.
Inputs can be converted, scaled, transcoded to standard to HDMI 2.0outputs or output to optional
ports including DP1.2,12G/6G/3G/HD/SD SDI, Fiber port and HDBaseT.
With a built-in dual channel 4k scaler, D4 provides 12bit interface connection, with EDID
management,HDCP2.X compliant and YUV4:4:4 10 bit color reproduce.
Based on the flexible modular structure, D4 can be expanded to more connection or any connection
in need, but not features only as a standard unit, besides its embedded and de-embeded audio
processing capacity.

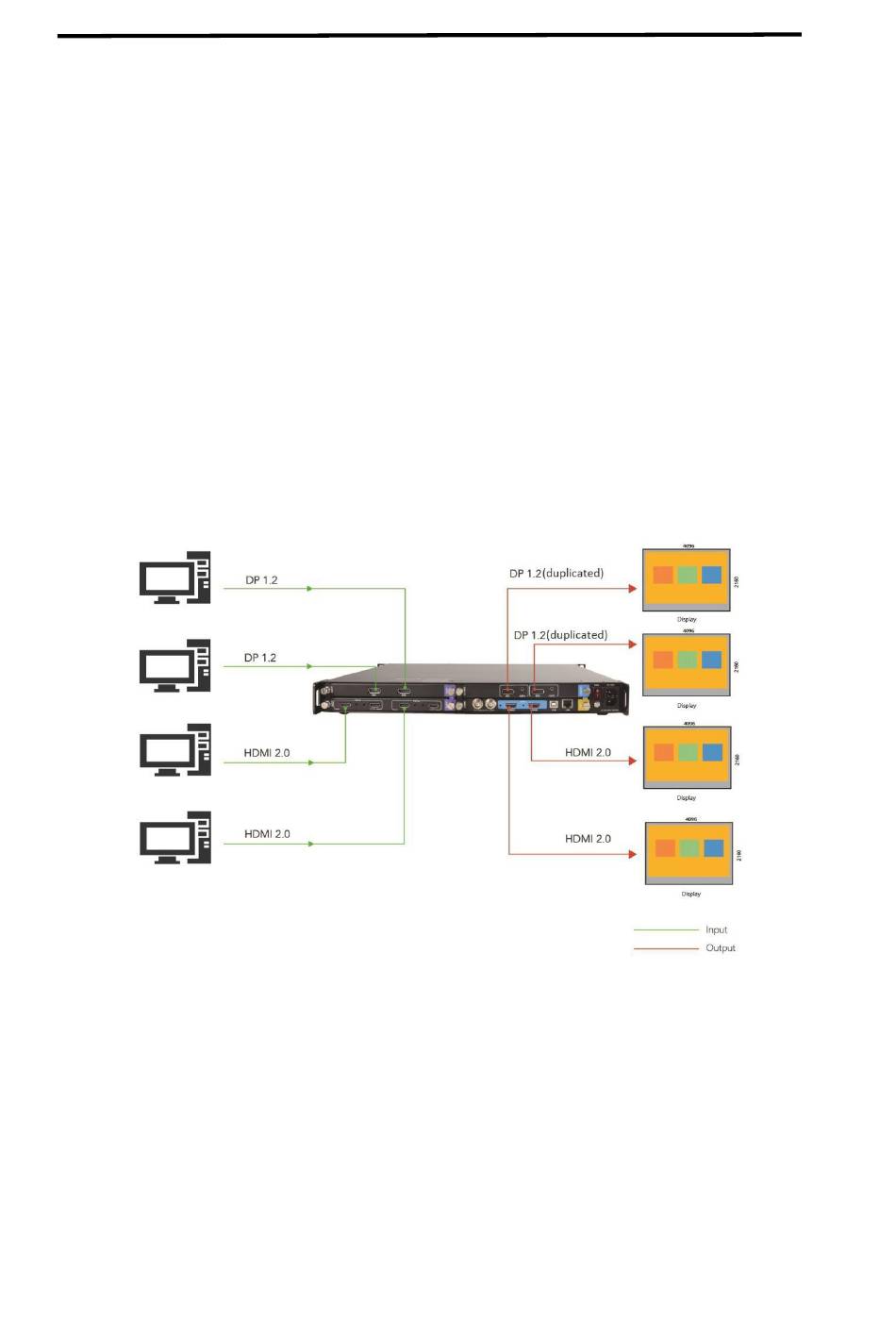

D4 System Connection Diagram
HDCP 2.X, UHD, 4K, HDR10, HLG, HDMI 2.0, DP 1.2, HDMI 2.1, DP 1.4, 6G SDI, 12G SDI, H.264, H.265
